VERSATILE FORMED ELEMENTS
Washing Machine Heater Element
Washing Machine Heater Element by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Washing Machine Heater Element: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Washing Machine Heater Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Washing Machine Heater Element lists Material: stainless steel 304; Voltage: 110V-380V; Length: Customized. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Washing Machine Heater Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Washing Machine Heater Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Material | stainless steel 304 |
|---|---|
| Color | nickel white |
| Voltage | 110V-380V |
| Wattage | 100W-10000W |
| Length | Customized |
| Shape | U-Shape |
| Used | Industrial Heater Parts |
ARCHIVED PRODUCT INFORMATION
Description

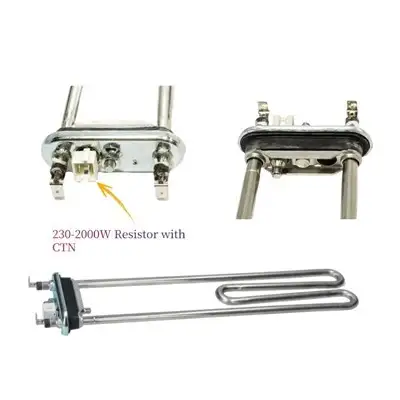

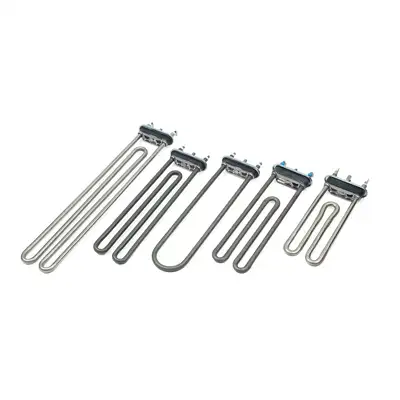

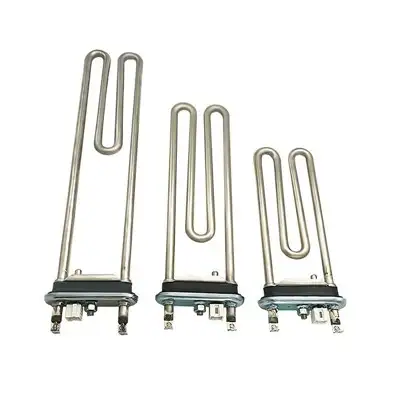

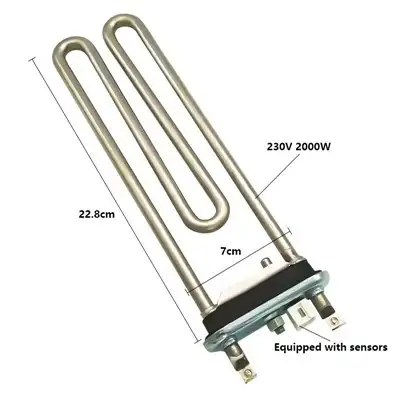

The heating element in a washing machine is a crucial component responsible for heating the water
during wash cycles, especially for hot or warm wash settings.
|
Material |
stainless steel 304 |
|
Color |
nickel white |
|
Voltage |
110V-380V |
|
Wattage |
100W-10000W |
|
Length |
Customized |
|
Shape |
U-Shape |
|
Used |
Industrial Heater Parts |
.Before installation, use a multimeter to test if the heating tubeis powered on. lf the measurement is correct, then proceed withthe installation.lf the measurement shows no power, contactcustomer service.
.The heating area of the heating tube must be fully submergedin water to be able to connect the power supply.lt is strictlyprohibited to dry-burn without water. (Dry-burning refers to thesituation where part or all of the heating element is exposedabove the water surface and powered on while exposed to theair. Since the heat cannot be conducted through the water, it isall absorbed by the metal tube, causing the metal tube to turnblack and bulge, and even break or melt.).lf the heating device has an automatic water supply device,after replacing the heating tube each time, the ball valve needsto be recalibrated to ensure that the liquid level is much higherthan the position of the heating tube, and then it can be used.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: washing machine heater element, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Teflon Water Industrial Immersion Heater, W Type Air Finned Tubular Heater, Mosquito Coil Heating Tube Element, Tubular Air Finned Heater Element, Water Tubular Brass Copper Heating Element, Air Tubular U Shape Heating Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
