VERSATILE FORMED ELEMENTS

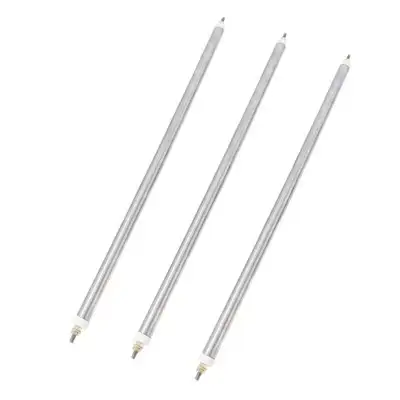

Straight Electric Heating Element
Straight Electric Heating Element by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Straight Electric Heating Element: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Straight Electric Heating Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Straight Electric Heating Element lists Material: stainless steel 304/321/316/310S,Incoloy 800 840; Power Tolerance: +5% -10%; Tube Diameter: 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc; Voltage: 380V 230V 220V 240V or customzied. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Straight Electric Heating Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Straight Electric Heating Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product | Air Finned Tubular Heater |
|---|---|
| Material | stainless steel 304/321/316/310S,Incoloy 800 840 |
| Power Tolerance | +5% -10% |
| Tube Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |

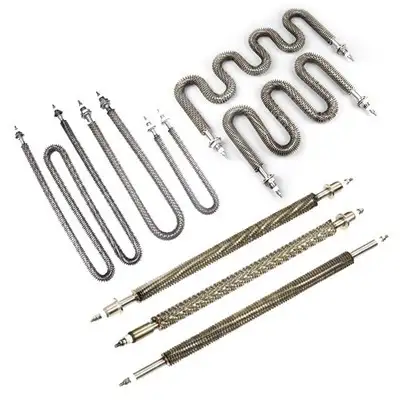

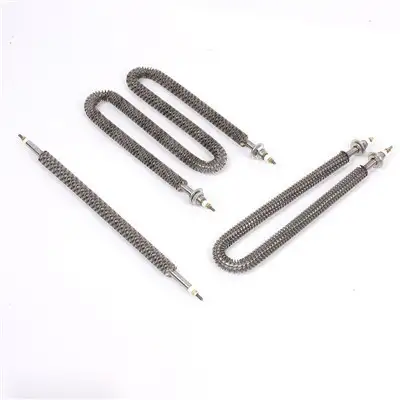

| Shape | Round, straight, U type, W type , double W type and so on |
| Voltage | 380V 230V 220V 240V or customzied |
| Thread | M12 M14 M16 M18 |
| Application | Drying,Heat Treating,Annealing,Load Banks,Curing |
ARCHIVED PRODUCT INFORMATION
Description

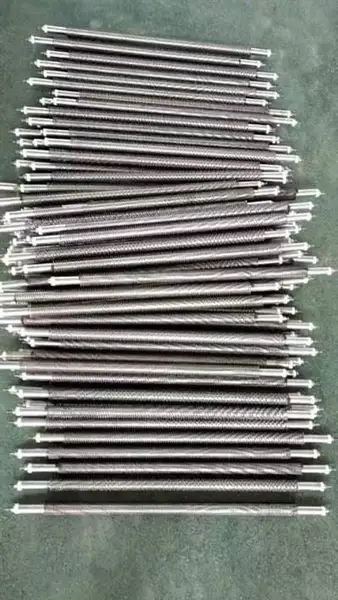

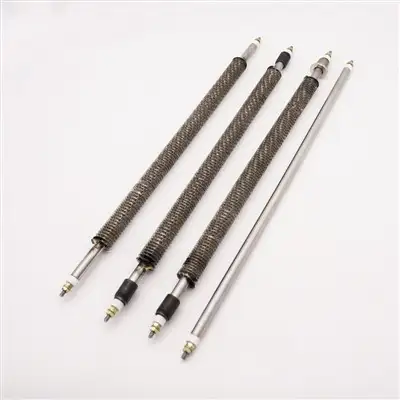

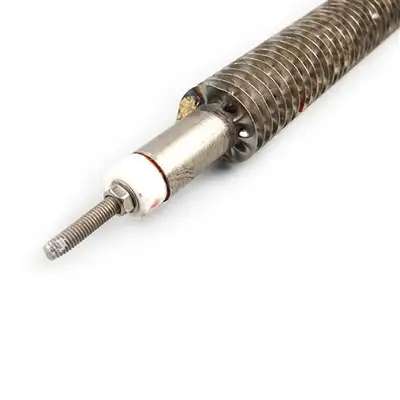

Finned tubular heater is constructed like basic tubular elements with the addition of continuous spiral fins 4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit
faster heat transfer to air, resulting in lower surface element temperatures
|
Product |
Air Finned Tubular Heater |
|
Material |
stainless steel 304/321/316/310S,Incoloy 800 840 |
|
Power Tolerance |
+5% -10% |
|
Tube Diameter |
8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
|
Shape |
Round, straight, U type, W type , double W type and so on |
|
Voltage |
380V 230V 220V 240V or customzied |
|
Thread |
M12 M14 M16 M18 |
|
Application |
Drying,Heat Treating,Annealing,Load Banks,Curing |
Product advantages
1: Selected iron, 201 stainless steel, 304 stainless steel, durable and high temperature resistant
2: Dry burning-resistant magnesium oxide powder, superior insulation performance, fast heating
3: Precision fins, encryption design, mechanical processing and winding, uniform heating
4: Brand electric heating wire, high temperature resistance, oxidation resistance, durable
Hot Tags: straight electric heating element, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Mosquito Coil Heating Tube Element, Electric Industrial Toaster Oven Heating Element, U Type Electric Air Fins Heater, Air Tubular U Shape Heating Element, Straight Stainless Steel Finned Heater, Teflon Water Industrial Immersion Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
