Heating Element For Rice Cooker
Heating Element For Rice Cooker by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Heating Element For Rice Cooker: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Heating Element For Rice Cooker, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Heating Element For Rice Cooker lists Material: Air tubular heater; Power Tolerance: stainless steel 304/321/316/310S,Incoloy 800 840; Tube Diameter: +5% -10%; Voltage: Round, straight, U type, W type , double W type and so on. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Heating Element For Rice Cooker, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Heating Element For Rice Cooker depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Material | Air tubular heater |
|---|---|
| Power Tolerance | stainless steel 304/321/316/310S,Incoloy 800 840 |
| Tube Diameter | +5% -10% |
| Shape | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |

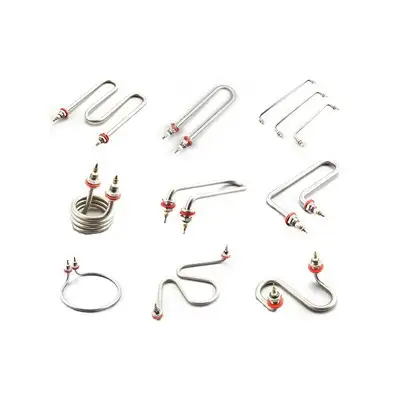

| Voltage | Round, straight, U type, W type , double W type and so on |
| Thread | 48V 110V 120v 380V 230V 220V 240V |
| Application | M12 M14 M16 M18 |
| Diameter tolerance | Drying,Heat Treating,Annealing,Load Banks,Curing |
ARCHIVED PRODUCT INFORMATION
Description
Product Description

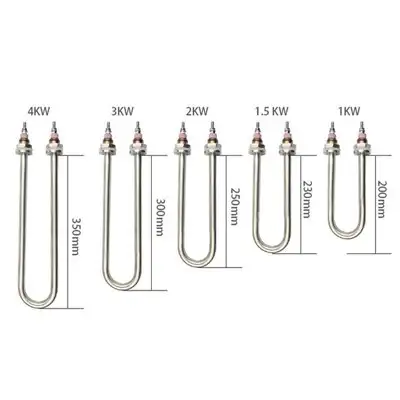

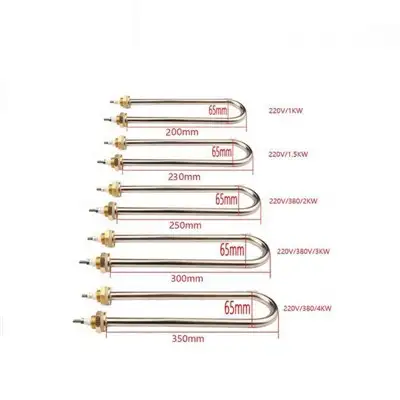

1kw 1.5kw 2kw 3kw 4kw industrial Stainless steel single U-type electric tubular air heaters
|
Material |
Air tubular heater |
|
Power Tolerance |
stainless steel 304/321/316/310S,Incoloy 800 840 |
|
Tube Diameter |
+5% -10% |
|
Shape |
8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
|
Voltage |
Round, straight, U type, W type , double W type and so on |
|
Thread |
48V 110V 120v 380V 230V 220V 240V |
|
Application |
M12 M14 M16 M18 |
|
Diameter tolerance |
Drying,Heat Treating,Annealing,Load Banks,Curing |
Advantage:
·Increase heat transfer surface area
·Max Sheath Temperature 455°C
·Safe to operate,Durable,Easy to maintain
·Secondary insulated bushings available
·High temperature resistance and wide application range. Corrosion resistance
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
