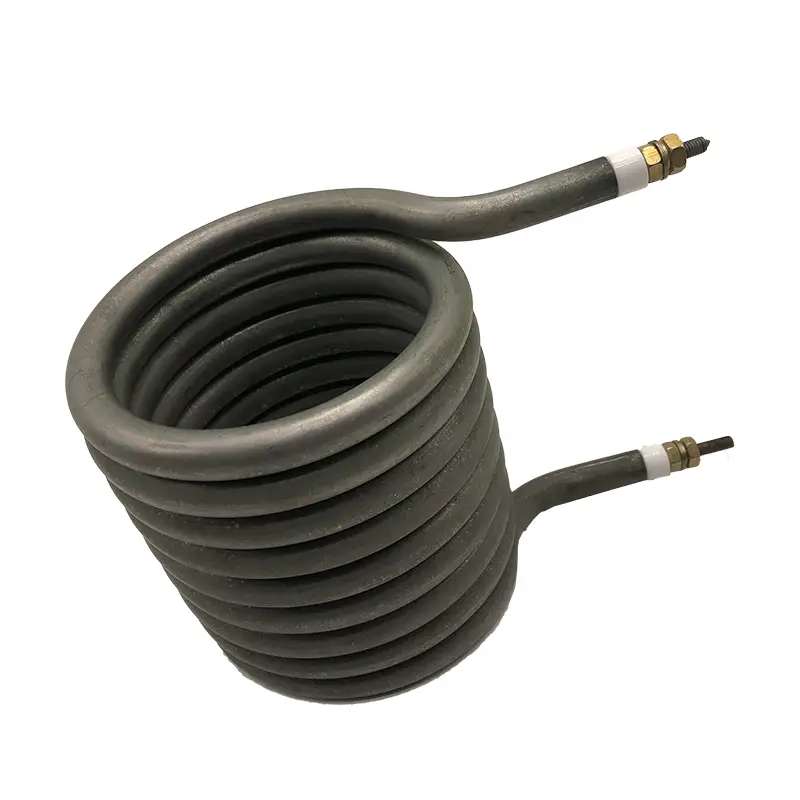

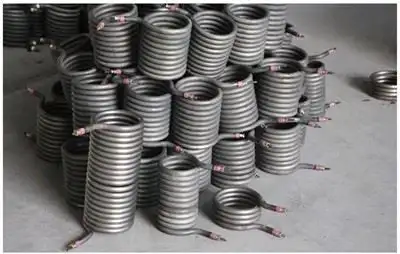

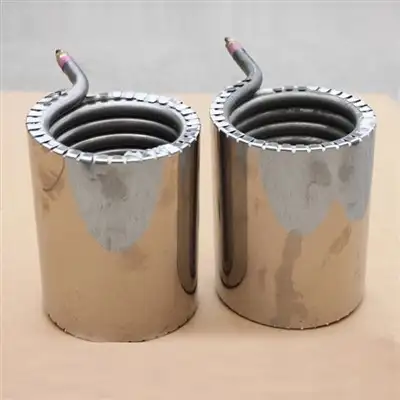

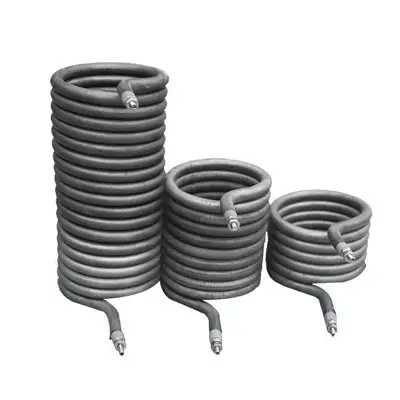

Heating Element For Paper Cup Machine
Heating Element For Paper Cup Machine by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (4)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Heating Element For Paper Cup Machine: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Heating Element For Paper Cup Machine, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Heating Element For Paper Cup Machine, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Heating Element For Paper Cup Machine depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
Product Description
Uniformly distribute high-temperature resistance wires inside high-temperature resistant stainless steel seamless pipes, and densely fill the gaps with crystalline magnesium oxide powder with good thermal conductivity and insulation performance. This structure not only has advanced thermal efficiency, but also generates uniform heat. When there is current passing through the high-temperature resistance wire, the heat generated diffuses through the crystalline magnesium oxide powder to the surface of the metal pipe, and then transfers to the heated part or air to achieve the purpose of heating.
| inside diameter | number of turns | tube diameter | voltage | power |
| 85mm | 6 |
8mm 12mm |
220v/380v | 2kw |
| 90mm | 6 | 220v/380v | 2.1kw | |
| 85mm | 7 | 220v/380v | 2.4kw | |
| 90mm | 7 | 220v/380v | 2.5kw | |
| 85mm | 8 | 220v/380v | 2.5kw | |
| 90mm | 8 | 220v/380v | 2.7kw | |
| 85mm | 9 | 220v/380v | 3kw | |
| 90mm | 9 | 220v/380v | 3.1kw | |
| 85mm | 10 | 220v/380v | 3.5kw | |
| 90mm | 10 | 220v/380v | 3.6kw | |
| 85mm | 18 | 220v/380v | 6kw | |
| 90mm | 18 | 220v/380v | 6.5kw | |
| 85mm | 19 | 220v/380v | 6.3kw | |
| 90mm | 19 | 220v/380v | 6.7kw |
Advantage:
1:The production of stainless steel heating rings is to convert electrical energy into thermal energy to heat
objects.It is a form of electricity utilization. Compared to general fuel heating, electric heating can
achieve higher temperatures.
2:High surface workload, high thermal efficiency, highly intensive, and compact structure. Due to its shor
and dense overall structure, it has good stability
3:Selecting high-quality imported and domestic materials, scientific production processes, and strict
quality management ensure the superior electrical performance of electric heating tubes.
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Hot Tags: heating element for paper cup machine, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, k type screw type thermocouple, Stainless Steel Electric Coil Tubular Heater, Flexible Kapton Film Polyimide Heater, Stainless Steel Industrial Sauna Heat Tube, type k bayonet thermocouple, water tank plastic level switch
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
