VERSATILE FORMED ELEMENTS

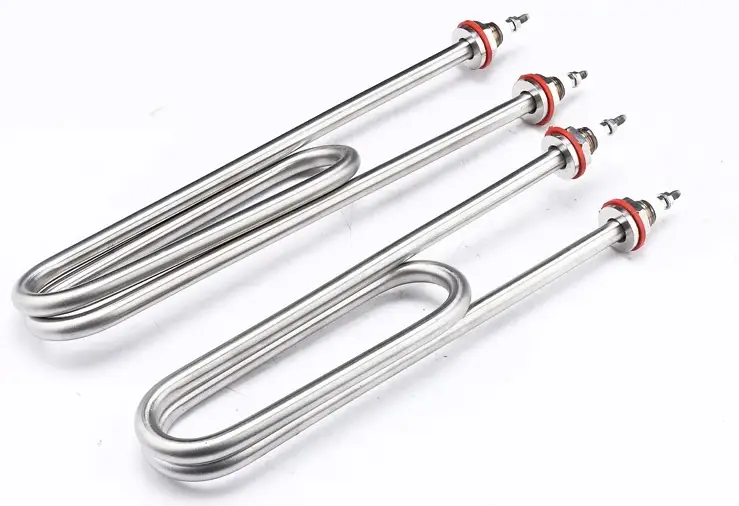

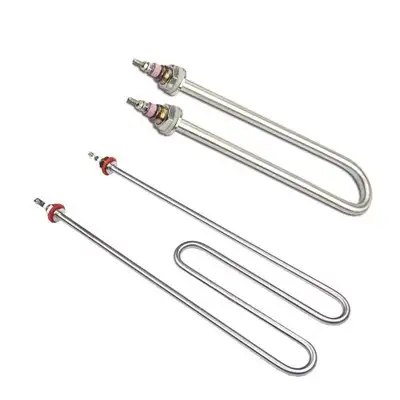

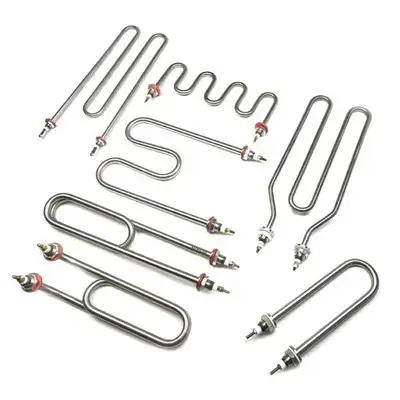

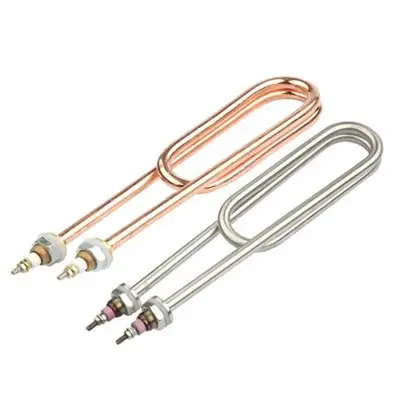

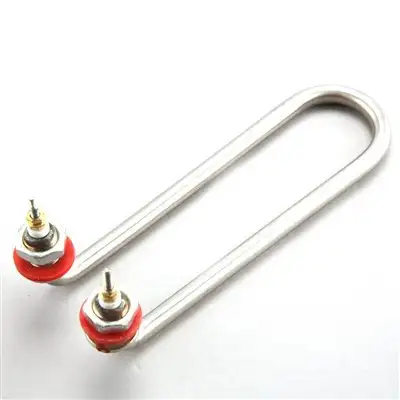

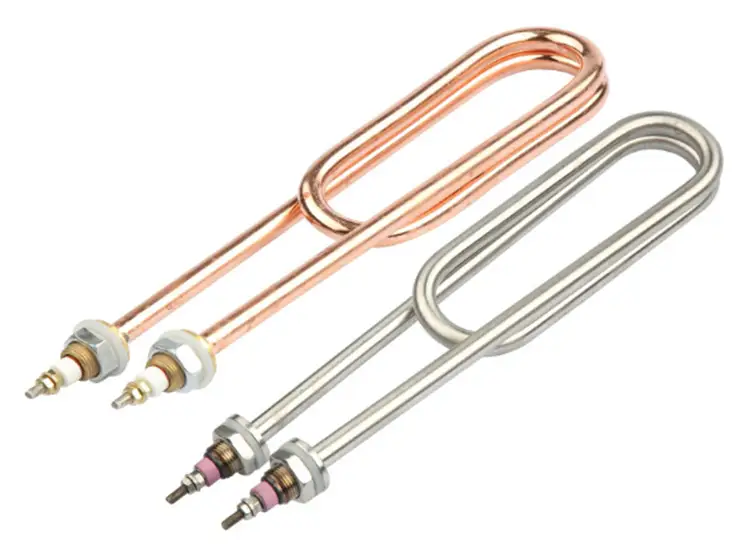

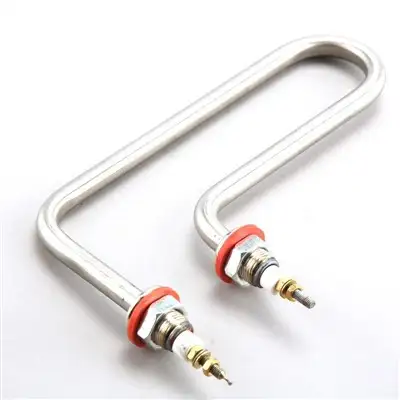

Heating Element 110v 2000w
Heating Element 110v 2000w by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Heating Element 110v 2000w: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
Using the catalog-name values 110 V and 2000 W, a single resistive load has an indicative current of 18.18 A and resistance of 6.05 Ω (I = P/V; R = V²/P). These calculations assume one element at its stated supply voltage; confirm phase arrangement, cold resistance and circuit protection in the approved drawing.
The archived configuration for Heating Element 110v 2000w lists Material: stainless steel 304/321/316/310S; Power Tolerance: +5% -10%; Tube Diameter: 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc; Voltage: 380V 230V 220V 240V or customzied. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Heating Element 110v 2000w, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
| Catalog name values | 110v · 2000w |
|---|---|
| Indicative single-element current | 18.18 A |
| Indicative single-element resistance | 6.05 Ω |
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Heating Element 110v 2000w depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product | Air Tubular Heater |
|---|---|
| Material | stainless steel 304/321/316/310S |
| Power Tolerance | +5% -10% |
| Tube Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
| Shape | Round, straight, U type, W type , double W type and so on |
| Voltage | 380V 230V 220V 240V or customzied |
| Thread | M12 M14 M16 M18 |
| Application | Drying,Heat Treating,Annealing,Load Banks,Curing |
ARCHIVED PRODUCT INFORMATION
Description
A tubular heater is a type of electric heating element that is commonly used in various industrial, commercial, and domestic applications. It consists of a metal tube, usually made of stainless steel, incoloy, or titanium, which houses a resistive heating element. The tube is often filled with a thermally conductive but electrically insulating material, such as magnesium oxide, to ensure efficient heat transfer and electrical safety.
|
Product |
Air Tubular Heater |
|
Material |
stainless steel 304/321/316/310S |
|
Power Tolerance |
+5% -10% |
|
Tube Diameter |
8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
|
Shape |
Round, straight, U type, W type , double W type and so on |
|
Voltage |
380V 230V 220V 240V or customzied |
|
Thread |
M12 M14 M16 M18 |
|
Application |
Drying,Heat Treating,Annealing,Load Banks,Curing |
Key Features:
Versatility: Tubular heaters can be bent or shaped to fit specific applications, making them highly versatile.
Efficiency: They provide uniform heating and are efficient in converting electrical energy into heat.
Durability: Made from robust materials, they are resistant to corrosion and can withstand high temperatures.
Safety: The insulating material within the tube prevents electrical short circuits, enhancing safety.
Advantage:
·Increase heat transfer surface area
·Max Sheath Temperature 870°C
·Safe to operate,Durable,Easy to maintain
·Secondary insulated bushings available
·High temperature resistance and wide application range. Corrosion resistance
Types of Tubular Heaters:
Straight Tubular Heaters: Simple, straight tubes used in applications where space is not a constraint.
Bent or Shaped Tubular Heaters: Custom-shaped to fit specific equipment or spaces.
Finned Tubular Heaters: Have fins attached to increase the surface area for better heat dissipation.
Over-the-Side Heaters: Designed to be immersed in liquids, commonly used in tanks and vats.
Common Applications:
Industrial Processes: Used in plastic molding, packaging, and food processing equipment.
Commercial Appliances: Found in ovens, grills, and hot plates.
Domestic Use: Utilized in water heaters, space heaters, and underfloor heating systems.
Specialized Equipment: Employed in medical devices, analytical instruments, and environmental chambers.
COMPANY PROFILE
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: heating element 110v 2000w, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Stainless Steel Industrial Sauna Heat Tube, Stainless Steel Water Immersion Heater, Stainless Steel Electric Spiral Heating Element, Electric Industrial Toaster Oven Heating Element, Water Tubular Brass Copper Heating Element, U Type Electric Air Fins Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
