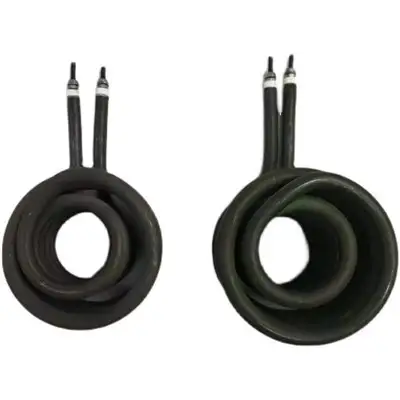

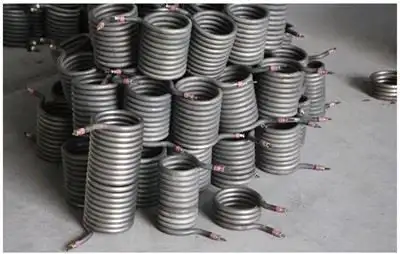

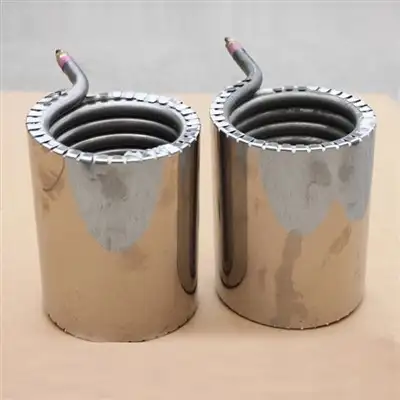

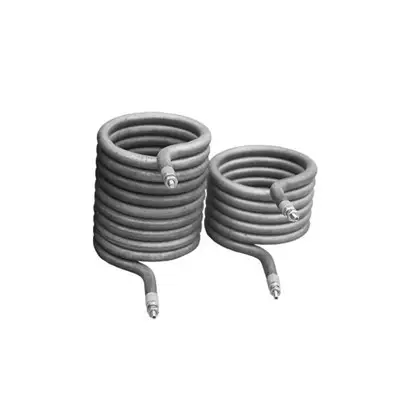

Heater Rings For Paper Cup Machine
Heater Rings For Paper Cup Machine by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (5)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Heater Rings For Paper Cup Machine: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Heater Rings For Paper Cup Machine, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Heater Rings For Paper Cup Machine, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Heater Rings For Paper Cup Machine depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
Product Description
spiral heating element are the most versatile, dependable and rugged of any heat generation device.They are a versatile means of heating an application and can be straight or formed to a required shape. Oven heater elements consists of nickel chrome resistant wire which is spot welded to a terminal pin, the nickel chrome wire is insulated by MGO powder which is then housed in an outer sheath.
| inside diameter | number of turns | tube diameter | voltage | power |
| 85mm | 6 |
8mm 12mm |
220v/380v | 2kw |
| 90mm | 6 | 220v/380v | 2.1kw | |
| 85mm | 7 | 220v/380v | 2.4kw | |
| 90mm | 7 | 220v/380v | 2.5kw | |
| 85mm | 8 | 220v/380v | 2.5kw | |
| 90mm | 8 | 220v/380v | 2.7kw | |
| 85mm | 9 | 220v/380v | 3kw | |
| 90mm | 9 | 220v/380v | 3.1kw | |
| 85mm | 10 | 220v/380v | 3.5kw | |
| 90mm | 10 | 220v/380v | 3.6kw | |
| 85mm | 18 | 220v/380v | 6kw | |
| 90mm | 18 | 220v/380v | 6.5kw | |
| 85mm | 19 | 220v/380v | 6.3kw | |
| 90mm | 19 | 220v/380v | 6.7kw |
Application
1. Heating heat transfer fluids
2. Heating medium and lightweight oils.
3. Heating water in tanks.
4. Pressure vessels.
5. Freeze protection of any fluids.
6. Food processing equipment.
7. Cleaning and rinsing equipment.
8. Beverage equipment
9. Beer brewing
10. Used in many other applications.
Advantage:
1:The production of stainless steel heating rings is to convert electrical energy into thermal energy to heat
objects.It is a form of electricity utilization. Compared to general fuel heating, electric heating can
achieve higher temperatures.
2:High surface workload, high thermal efficiency, highly intensive, and compact structure. Due to its shor
and dense overall structure, it has good stability
3:Selecting high-quality imported and domestic materials, scientific production processes, and strict
quality management ensure the superior electrical performance of electric heating tubes.
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
