Finned Heater
Finned Heater by LICHENGDA. Airflow and fin clearance, configuration details and made-to-drawing quotation for air ducts, dryers and equipment enclosures.
Product image gallery (6)
PRODUCT ENGINEERING
Airflow and fin clearance
Finned Heater: Fins transfer heat to passing air. State the air speed, inlet temperature and duct dimensions before selecting surface loading; a wattage alone does not establish the allowable air temperature rise.
Keep fins clear of cables and combustible material. Review fan-failure interlocking and place the temperature limit where reduced airflow will be detected.
For Finned Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Finned Heater lists Material: stainless steel 304/321/316/310S; Power Tolerance: +5% -10%; Tube Diameter: 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc; Voltage: 380V 230V 220V 240V or customzied. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Finned Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Air ducts, dryers and equipment enclosures. The final suitability of Finned Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product | Air Finned Tubular Heater |
|---|---|
| Material | stainless steel 304/321/316/310S |
| Power Tolerance | +5% -10% |

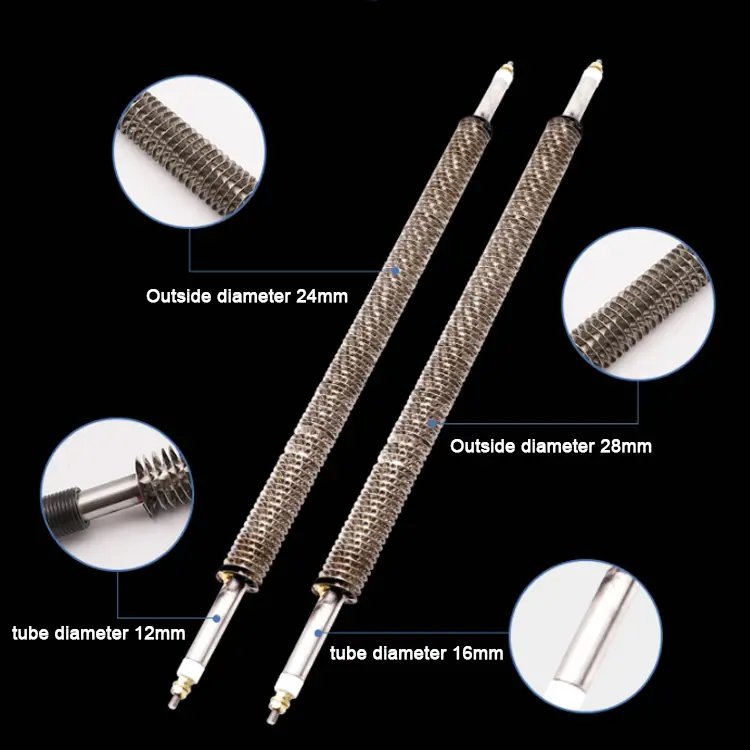

| Tube Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |

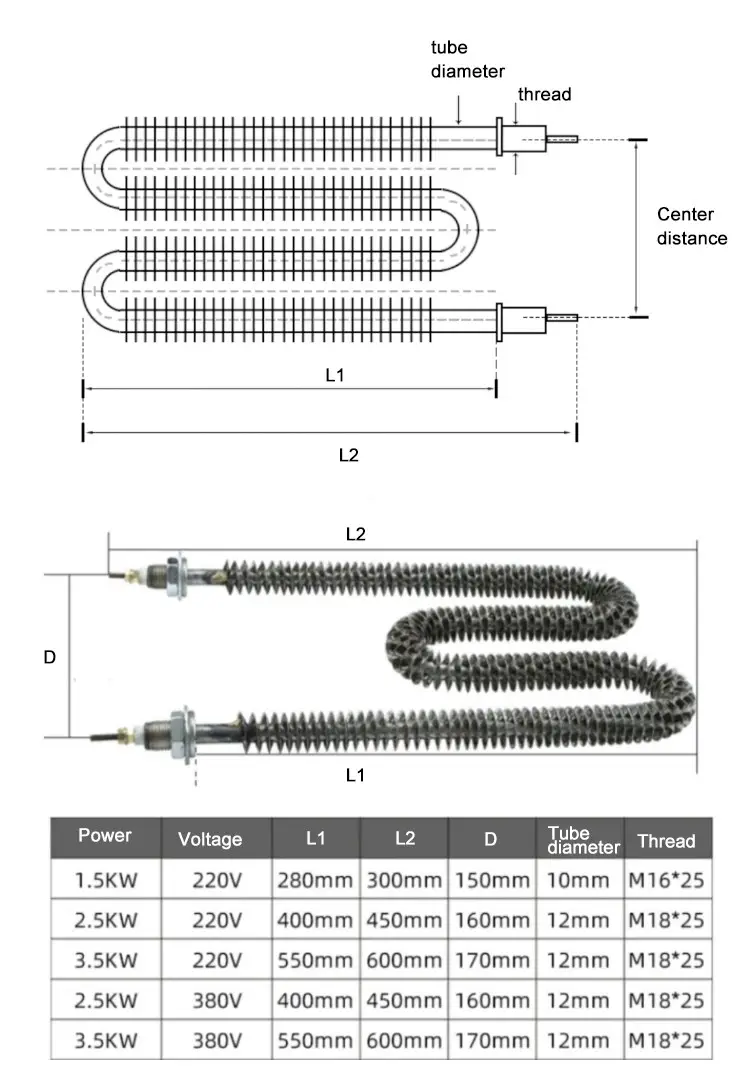

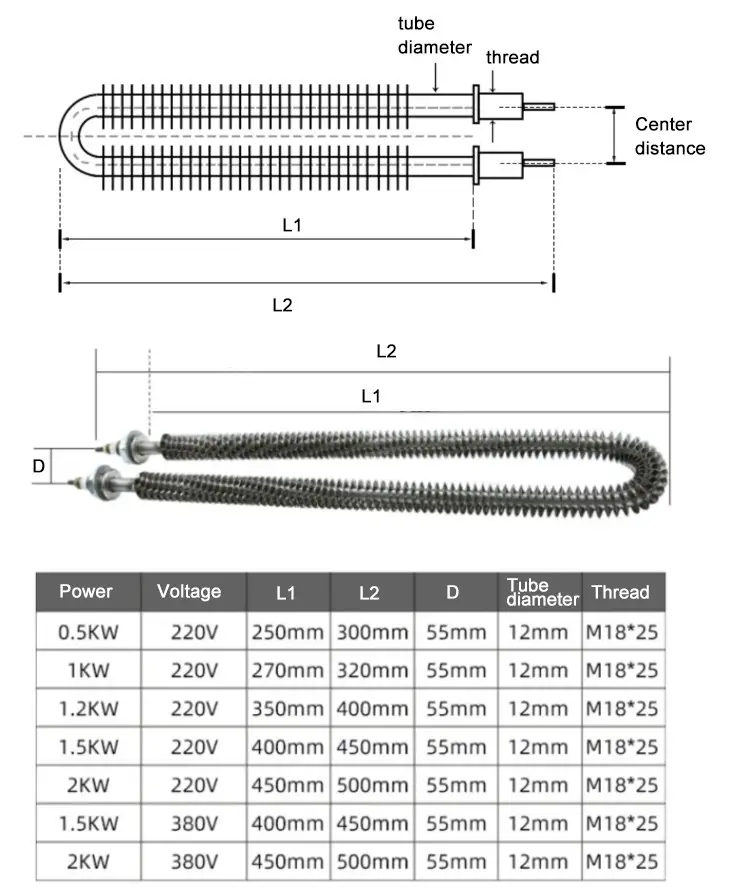

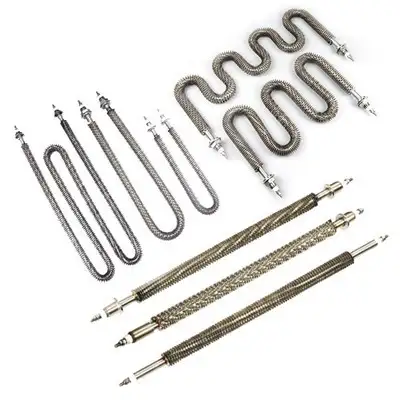

| Shape | Round, straight, U type, W type , double W type and so on |
| Voltage | 380V 230V 220V 240V or customzied |

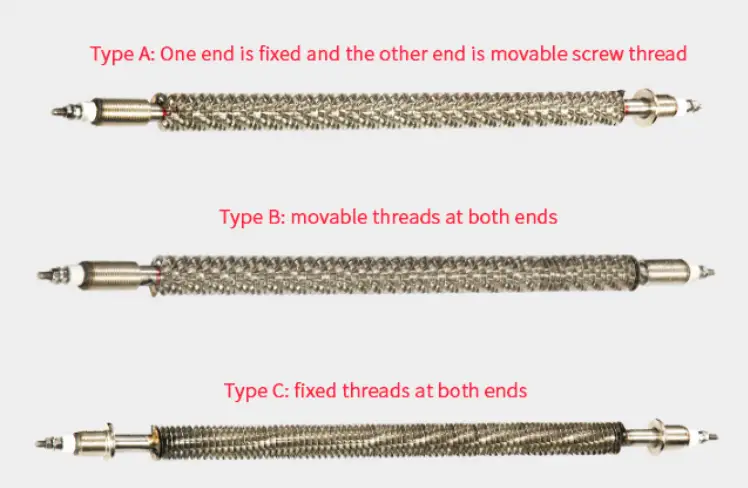

| Thread | M12 M14 M16 M18 |
| Application | Drying,Heat Treating,Annealing,Load Banks,Curing |
ARCHIVED PRODUCT INFORMATION
Description
Product Description

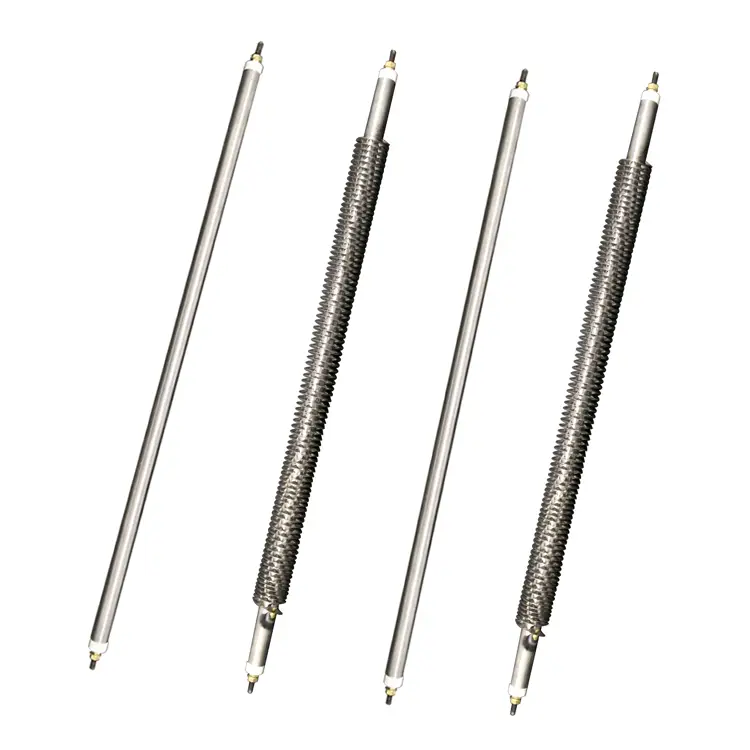

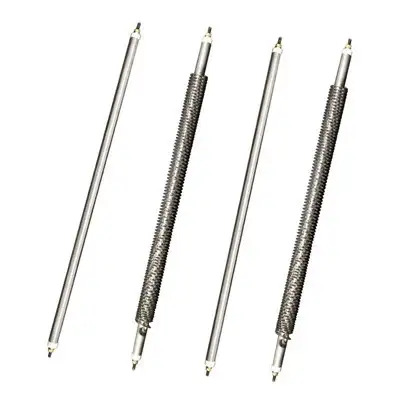

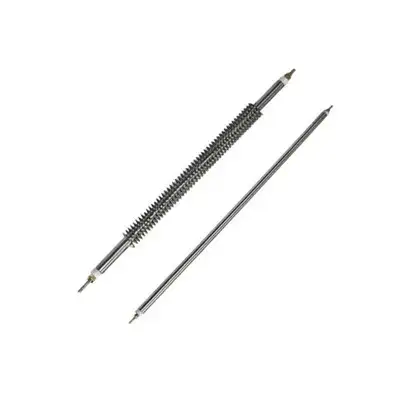

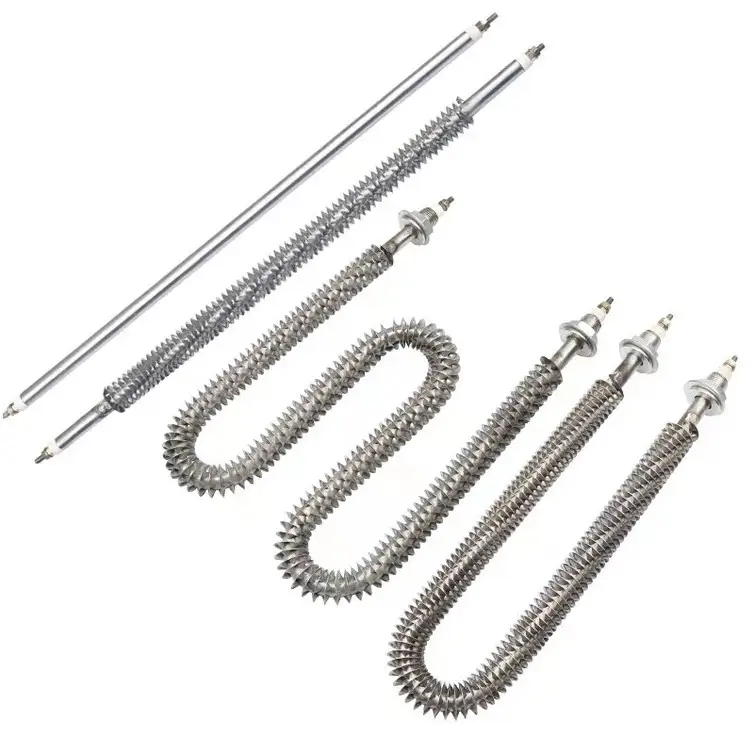

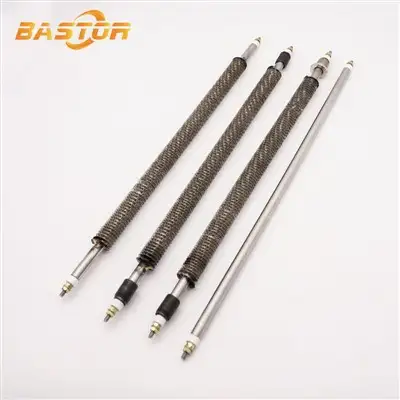

Finned tubular heater is constructed like basic tubular elements with the addition of continuous spiral fins
4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit
faster heat transfer to air, resulting in lower surface element temperatures
|
Product |
Air Finned Tubular Heater |
|
Material |
stainless steel 304/321/316/310S |
|
Power Tolerance |
+5% -10% |
|
Tube Diameter |
8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
|
Shape |
Round, straight, U type, W type , double W type and so on |
|
Voltage |
380V 230V 220V 240V or customzied |
|
Thread |
M12 M14 M16 M18 |
|
Application |
Drying,Heat Treating,Annealing,Load Banks,Curing |

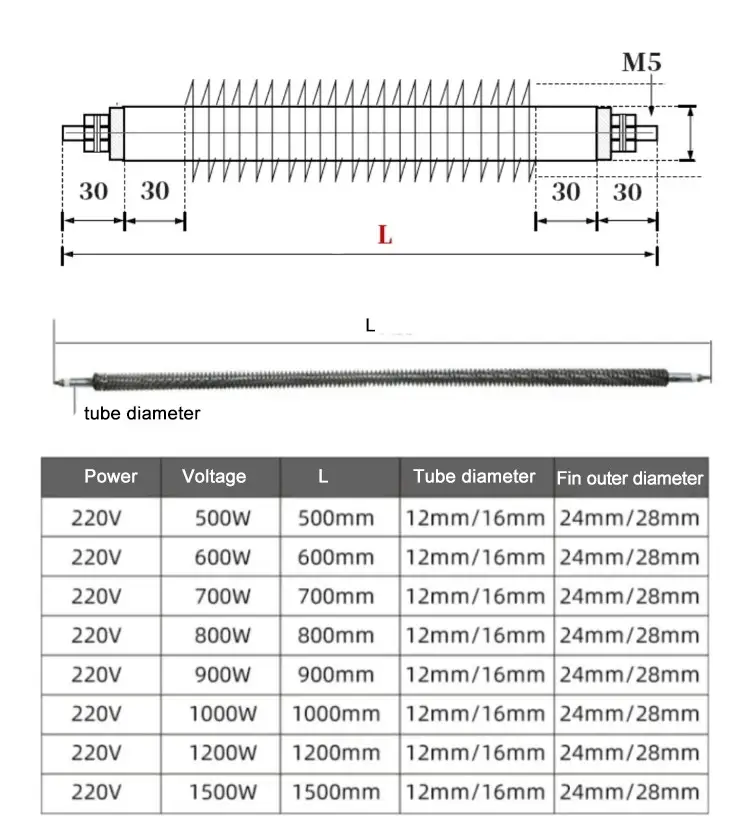

Stock size
| straight tubular heater | voltage power | tube diameter | total length |
| 220v 800w | 12mm | 800mm | |
| 220V 1000W | 1000mm | ||
| 220V 1200W | 1200mm | ||
| 220v 1500w | 1500mm | ||
| 220v 800w | 16mm | 800mm | |
| 220v 1000w | 1000mm | ||
| 220v 1200w | 1200mm | ||
| 220v 1500w | 1500mm |

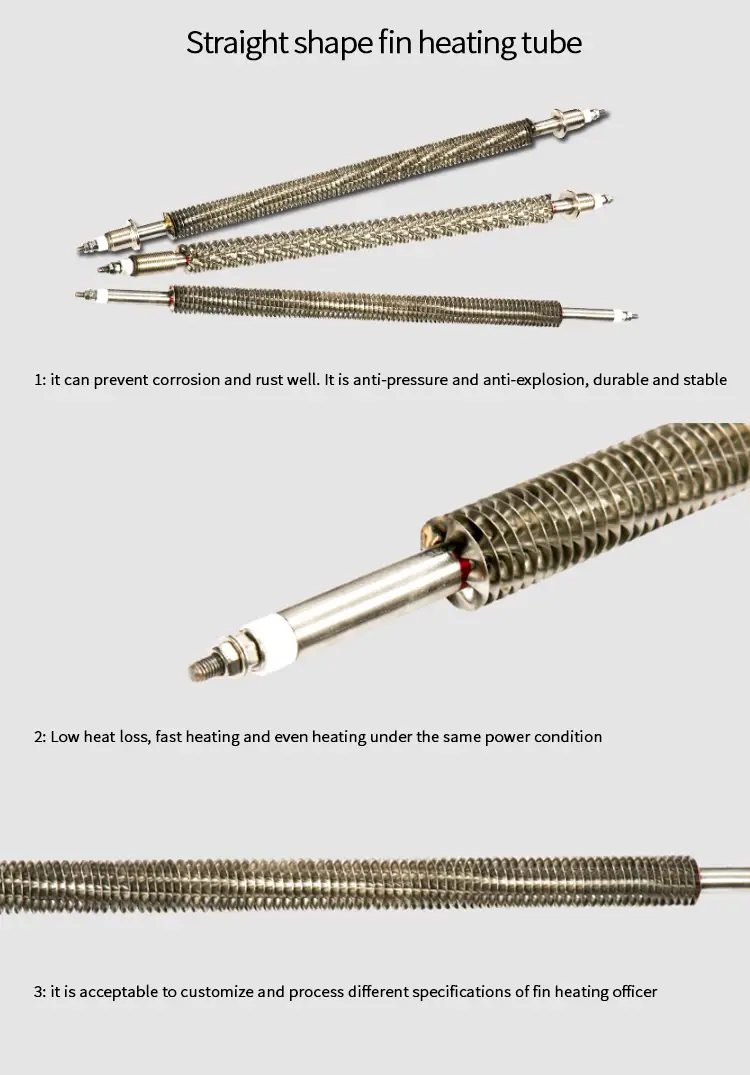

Product advantages
1: Selected iron, 201 stainless steel, 304 stainless steel, durable and high temperature resistant
2: Dry burning-resistant magnesium oxide powder, superior insulation performance, fast heating
3: Precision fins, encryption design, mechanical processing and winding, uniform heating
4: Brand electric heating wire, high temperature resistance, oxidation resistance, durable
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Packaging & Shipping
Package : paper box and Wooden box or customized for you.
Hot Tags: finned heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Water Immersion Copper Tubular Heater, Electric Water Boiler Heating Element, Water Immersion Heater Element, W Type Air Finned Tubular Heater, Electric Industrial Toaster Oven Heating Element, Mosquito Coil Heating Tube Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
