VERSATILE FORMED ELEMENTS

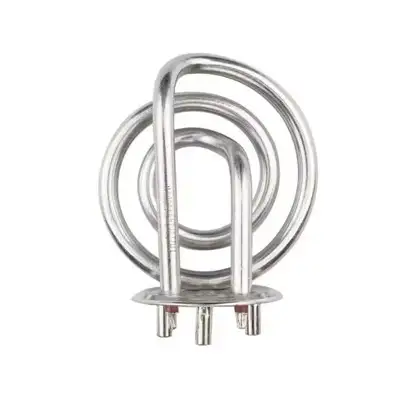

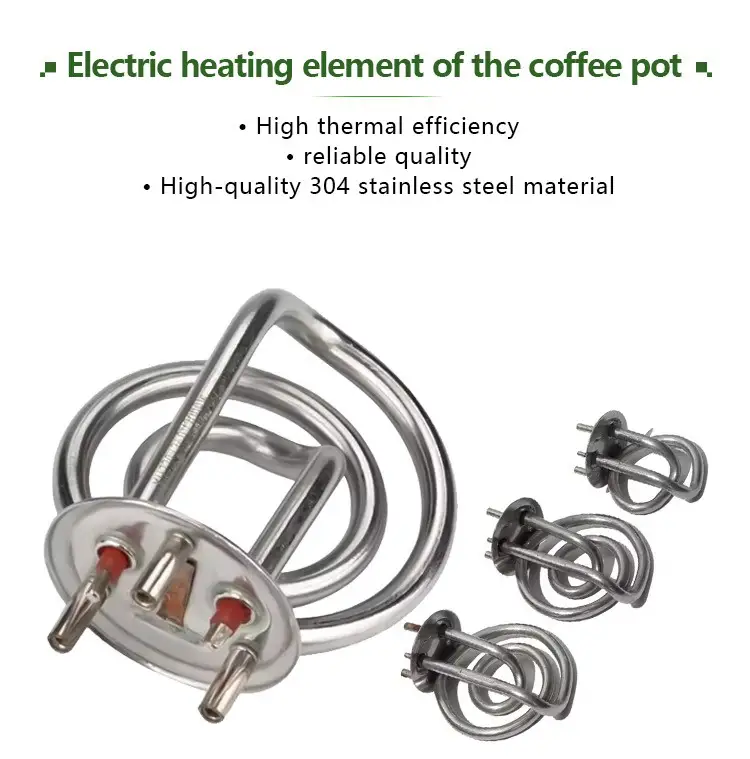

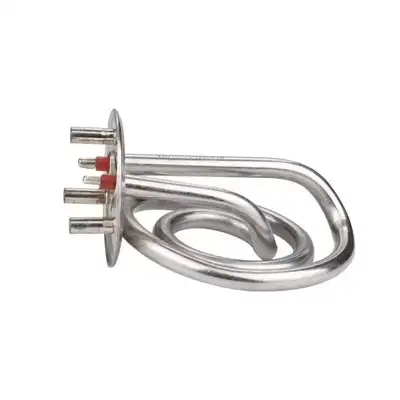

Electric Kettle Heating Element
Electric Kettle Heating Element by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Electric Kettle Heating Element: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Electric Kettle Heating Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Electric Kettle Heating Element lists Material:: SUS 304, 201, 202,copper; Tube size:: Φ6.5,Φ8,Φ8.5. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Electric Kettle Heating Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Electric Kettle Heating Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Material: | SUS 304, 201, 202,copper |
|---|---|
| Tube size: | Φ6.5,Φ8,Φ8.5 |
| Surface: | greening oxidation treatment |

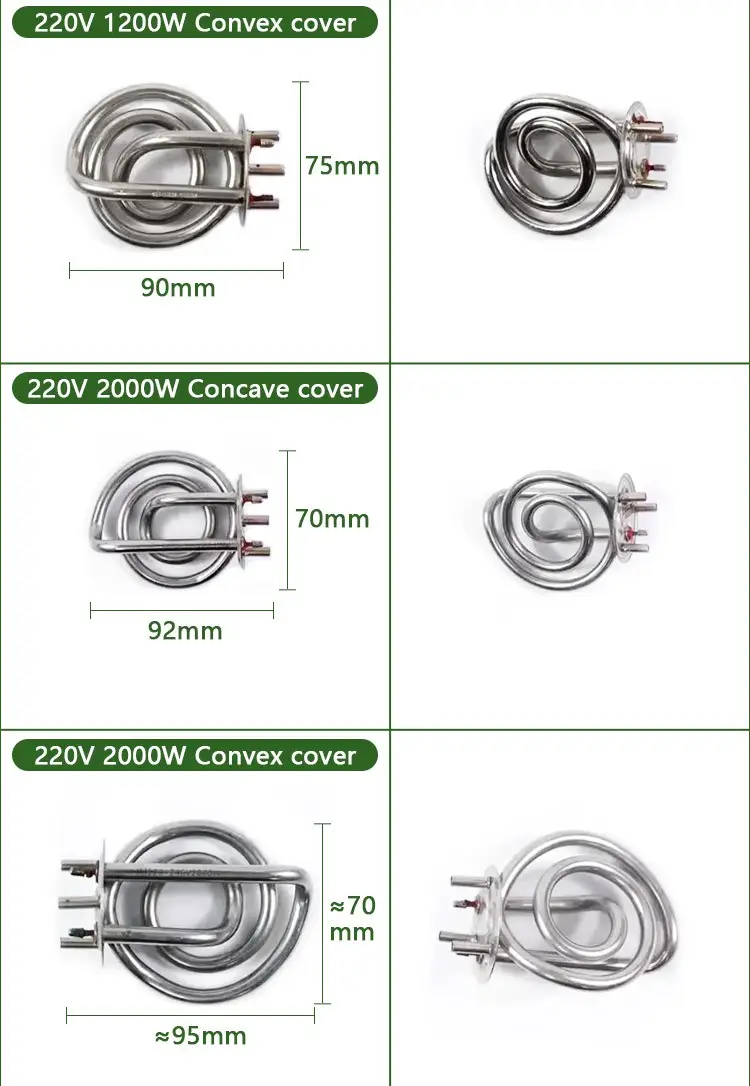

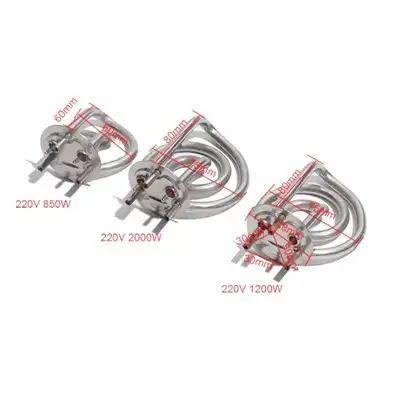

| Overall Dimensions: | OEM, customized in drawing or samples. |
| Electrical Performance | AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA |
| Application: | Toaster,oven.coffee machine |
ARCHIVED PRODUCT INFORMATION
Description
|
Material: |
SUS 304, 201, 202,copper |
|
Tube size: |
Φ6.5,Φ8,Φ8.5 |
|
Surface: |
greening oxidation treatment |
|
Overall Dimensions: |
OEM, customized in drawing or samples. |
|
Electrical Performance |
AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA |
|
Application: |
Toaster,oven.coffee machine |

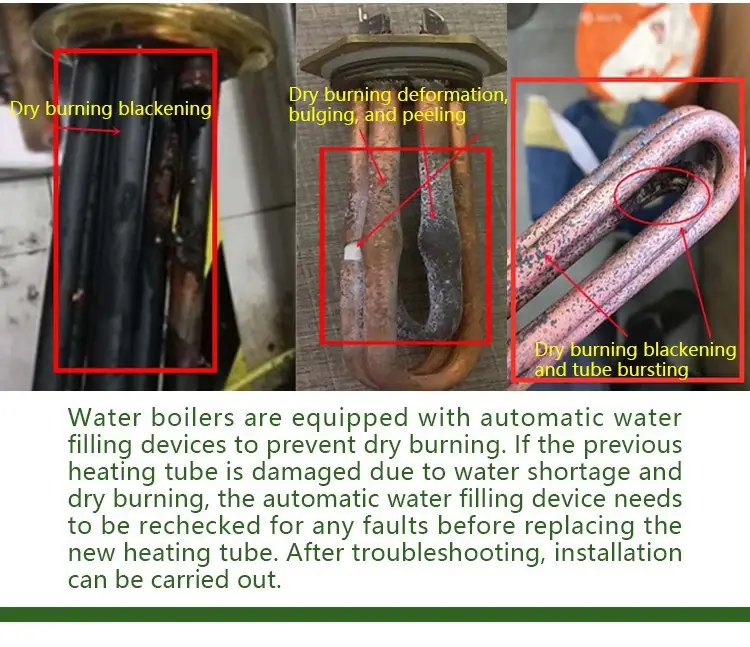

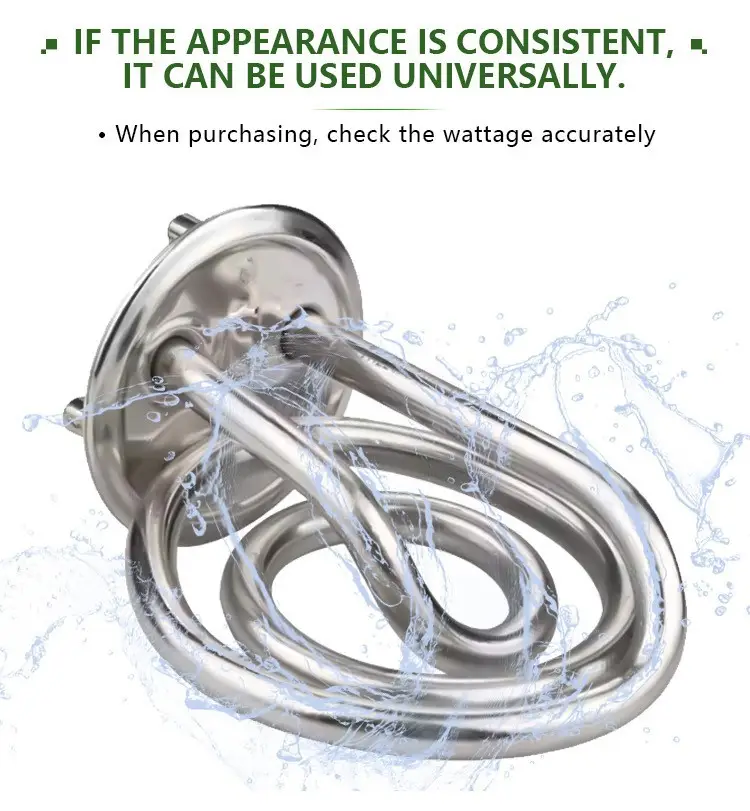

The heating area of the heating tube must becompletely submerged in water before it can bepowered on, and dehydration and dry burning arestrictly prohibited.
(Dehydration dry burning refers to the heatingelement partially or completely exposed to the watersurface and energized in the air. Due to the inabilityof heat to be conducted out through water, all of it isabsorbed by the metal tube, which can cause themetal tube body to turn black, bulge, or even burn,break, explode, or melt.)
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: electric kettle heating element, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Stainless Steel Water Immersion Heater, W Type Air Finned Tubular Heater, Teflon Water Industrial Immersion Heater, Water Immersion Heater Element, Tubular Air Finned Heater Element, Stainless Steel Electric Spiral Heating Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
ENGINEER-REVIEWED QUOTATION
