Dishwasher Heating Coil
Dishwasher Heating Coil by LICHENGDA. Formed geometry and sheath loading, configuration details and made-to-drawing quotation for process equipment and formed heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Formed geometry and sheath loading
Dishwasher Heating Coil: Review the complete formed outline against the available space and the heating medium. Bend radius, cold ends and terminal orientation need to be fixed before the tube is formed.
Choose the sheath for corrosion exposure and operating temperature. Support long spans and allow thermal expansion rather than forcing the element into an undersized mounting path.
For Dishwasher Heating Coil, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Dishwasher Heating Coil, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Process equipment and formed heating assemblies. The final suitability of Dishwasher Heating Coil depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Tube / Shape | Made to drawing |
| Material / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description

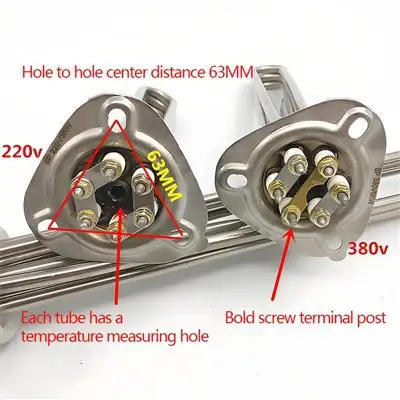

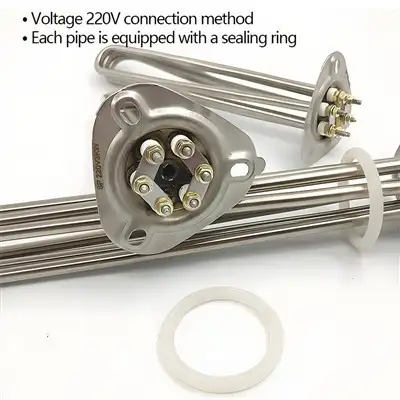

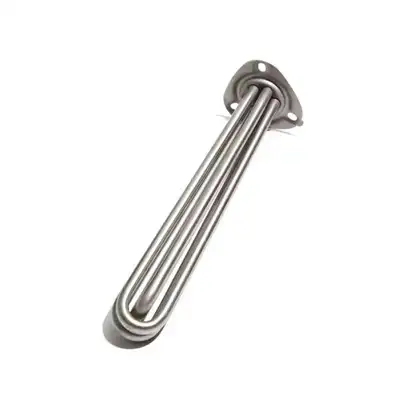

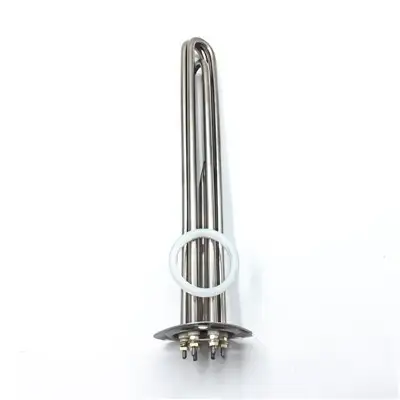

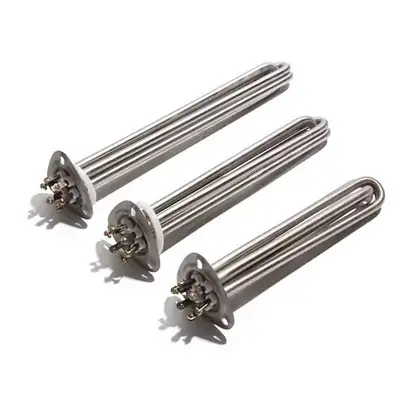

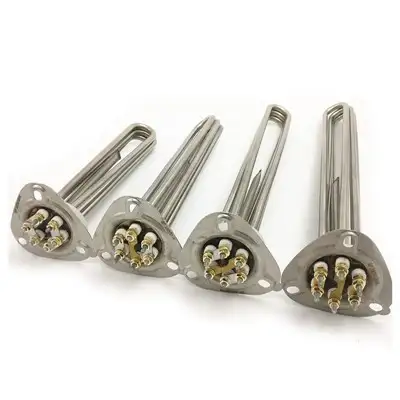

stainless - steel electric heating tubes. They have triangular - shaped flanges at the bottom, with terminal posts distributed on the flanges for circuit connection. The main body of the heating tube consists of a metal tube, a helical resistance wire, and insulating and heat - conducting materials filled in between. When in operation, an electric current passes through the resistance wire to generate heat, which is then transferred through the metal tube. These heating tubes have advantages such as high temperature resistance, corrosion resistance, high mechanical strength, and a long service life. They can be used in devices that require heating, such as dishwashers, electric water heaters, and industrial equipment, providing a stable and reliable heat source.
Advantages
Efficient Heating: It can quickly heat the washing water to an appropriate temperature (usually 40 - 70°C), significantly shortening the pre - heating time and improving the overall washing efficiency. For example, when cleaning heavily - soiled tableware with oil stains, high - temperature water can rapidly dissolve the grease, reducing the cleaning time.
Powerful Dirt Removal: The heated high - temperature water can enhance the activity of the detergent, enabling the detergent to function better and effectively remove stubborn stains, including dried - up food residues and grease, resulting in a higher cleaning ratio.
Sterilization and Disinfection: Most bacteria cannot survive above 50°C. The heating tube can raise the water temperature to a level that can kill common bacteria (such as Escherichia coli and Staphylococcus aureus), ensuring the hygiene of tableware.
Optimized Drying: The auxiliary drying function can accelerate water evaporation, quickly drying the tableware, reducing the risk of water stains and bacterial growth, especially suitable for tableware such as glass and ceramics that are prone to water stains.
Durability and Reliability: Heating tubes made of high - quality materials (such as stainless steel) have good high - temperature and corrosion resistance, long service life, reducing replacement costs and maintenance troubles.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: dishwasher heating coil, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Electric Water Boiler Heating Element, Teflon Water Industrial Immersion Heater, Water Tubular Brass Copper Heating Element, Electric Industrial Toaster Oven Heating Element, U Type Electric Air Fins Heater, Water Immersion Heater Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
