Waterproof 3 Wires Rtd Pt100 Temperature Sensor
Waterproof 3 Wires Rtd Pt100 Temperature Sensor by LICHENGDA. RTD wiring and insertion geometry, configuration details and made-to-drawing quotation for repeatable process-temperature measurement.
Product image gallery (9)
PRODUCT ENGINEERING
RTD wiring and insertion geometry
Waterproof 3 Wires Rtd Pt100 Temperature Sensor: Match the named platinum resistance sensor to the controller’s configured input. Confirm the resistance designation, accuracy class and 2-, 3- or 4-wire arrangement before connecting the probe.
Insertion depth, probe diameter and mounting contact affect response and measurement error. Route the signal cable away from heater power wiring and review cable resistance for the selected connection scheme.

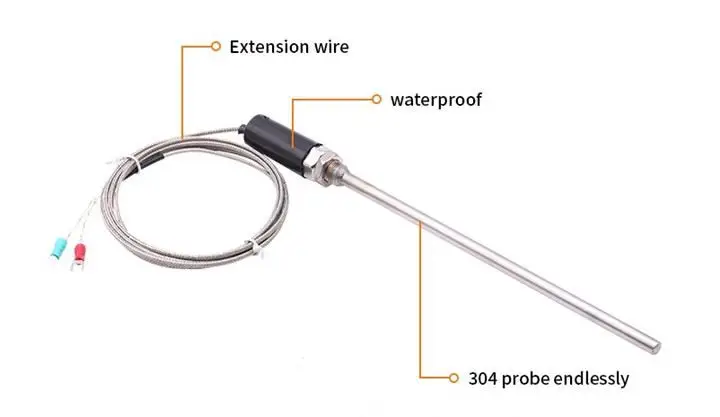

The archived configuration for Waterproof 3 Wires Rtd Pt100 Temperature Sensor lists Thread size: M12*1 OR M12*1.5; Material: SUS201/304; Tube diameter: 7mm Length can be customized; Wire material: Glass fiber wire and Teflon waterproof line. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Waterproof 3 Wires Rtd Pt100 Temperature Sensor, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Repeatable process-temperature measurement. The final suitability of Waterproof 3 Wires Rtd Pt100 Temperature Sensor depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Thread size | M12*1 OR M12*1.5 |
|---|---|
| Material | SUS201/304 |
| Tube diameter | 7mm Length can be customized |
| Wire material | Glass fiber wire and Teflon waterproof line |
| Probe material | SUS304 |
| Wire | Pt100 3 wires |
| Temperature | PT100 -200+450 ℃ |
ARCHIVED PRODUCT INFORMATION
Description
Thread size | M12*1 OR M12*1.5 |
Material | SUS201/304 |
Tube diameter | 7mm Length can be customized |
Wire material | Glass fiber wire and Teflon waterproof line |
Probe material | SUS304 |
Wire | Pt100 3 wires |
K, E type 2 wires. | |
Temperature | PT100 -200+450 ℃ |
CU50 -50+150 ℃ | |
K type 0-600 ℃ | |
E type 0-400 ℃ |
Product Advantage

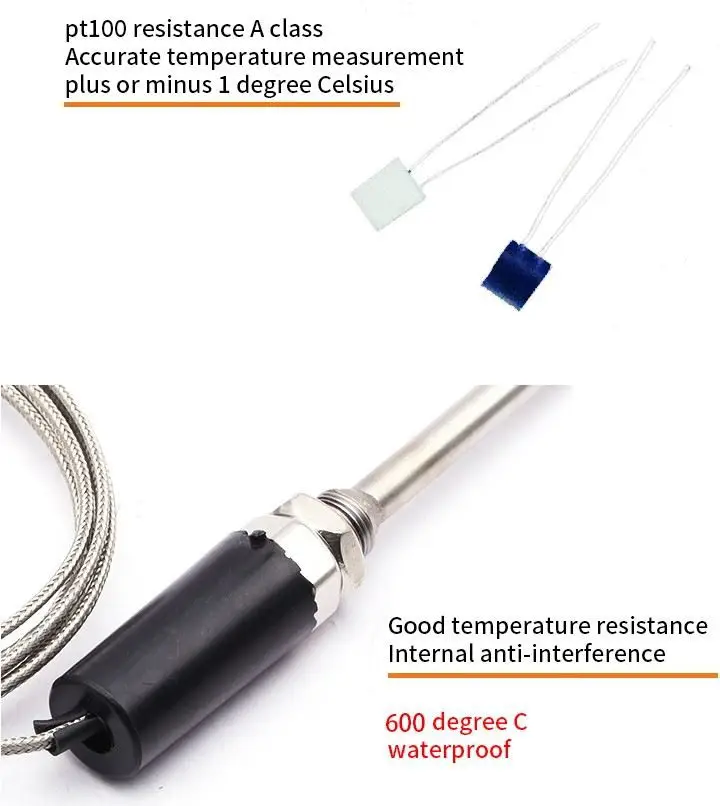

1: High temperature resistant ceramic base
