ACCURATE TEMPERATURE SENSING
Thermocouple Plug
Thermocouple Plug by LICHENGDA. Connector polarity and mating compatibility, configuration details and made-to-drawing quotation for temperature-signal cable connections.
Product image gallery (7)
PRODUCT ENGINEERING
Connector polarity and mating compatibility
Thermocouple Plug: Specify the sensor alloy or RTD wiring scheme, plug size and mating part. A thermocouple connector must preserve polarity and use contacts compatible with the sensing circuit.
Check terminal wire gauge, strain relief and local ambient temperature. Confirm that the chosen connector fits the controller and extension cable without introducing an unintended junction.
The archived configuration for Thermocouple Plug lists Material: nylon, Teflon, ceramic, plastic, silicone, copper, constantan, etc.; Size: a variety of specifications available. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Thermocouple Plug, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Temperature-signal cable connections. The final suitability of Thermocouple Plug depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Name | Thermocouple plug |
|---|---|
| Material | nylon, Teflon, ceramic, plastic, silicone, copper, constantan, etc. |
| Color | multi-color optional |
| Size | a variety of specifications available |

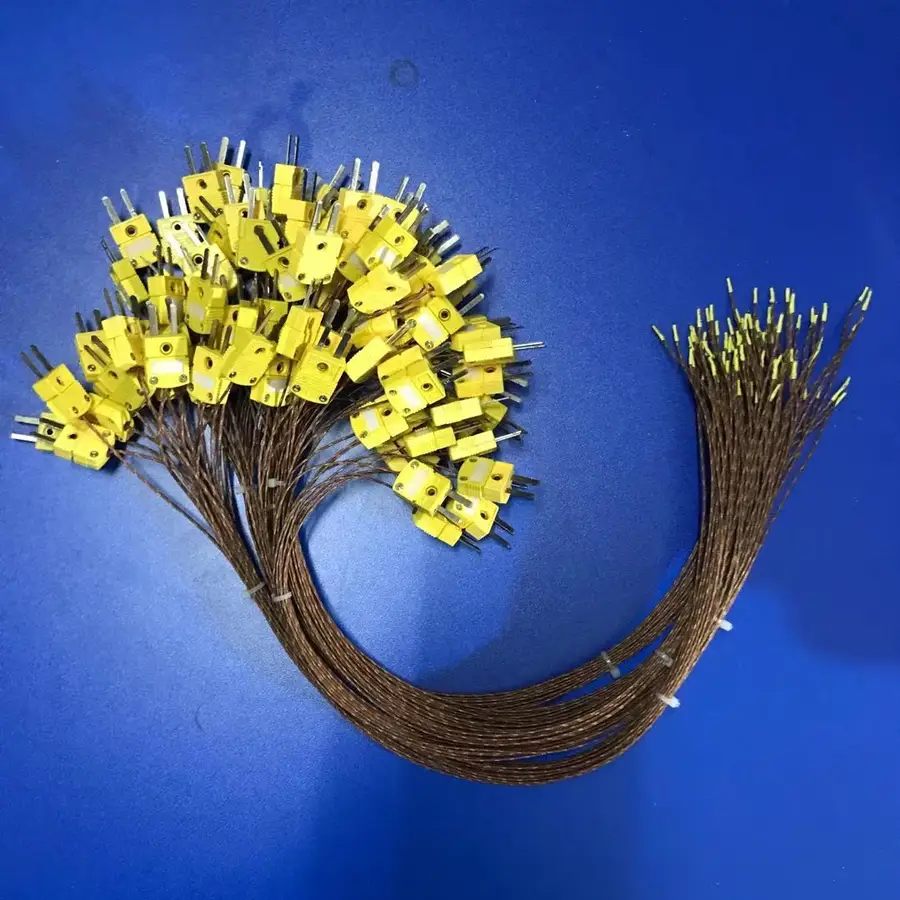

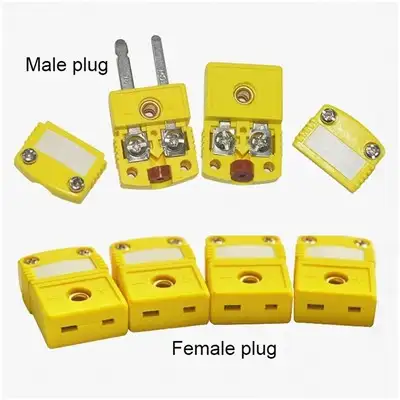

| Composition | male and female |

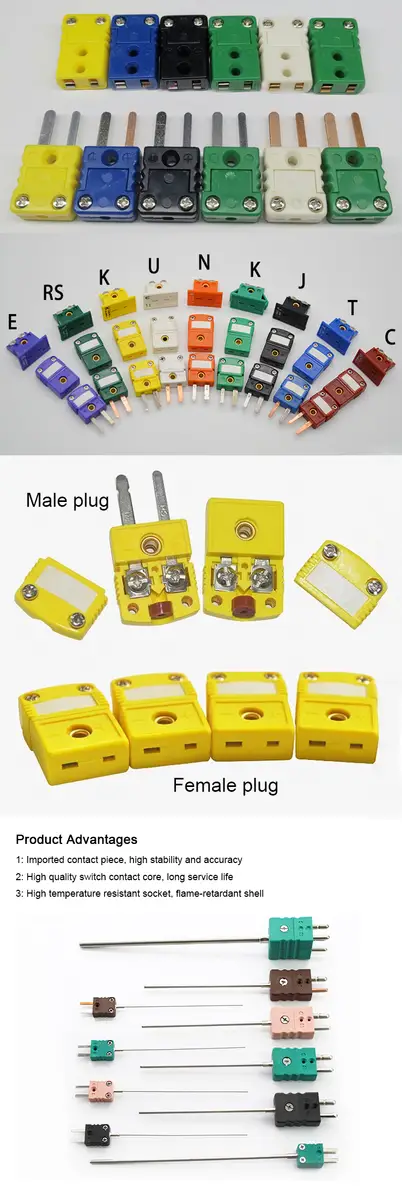

| Type | Thermocouple (all types) RTD (all types) Tungsten (all types) |
ARCHIVED PRODUCT INFORMATION
Description
Product Description
|
Name |
Thermocouple plug |
|
Material |
nylon, Teflon, ceramic, plastic, silicone, copper, constantan, etc. |
|
Color |
multi-color optional |
|
Size |
a variety of specifications available |
|
Composition |
male and female |
|
Type |
Thermocouple (all types) RTD (all types) Tungsten (all types) |
Products Advantage
1: HD large screen display
2: The instrument is suitable for a variety of probe measurements
3: Fast response time 2.5s/time
4: High resolution
5: Low battery reminder
Related Product Recommendation
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: thermocouple plug, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, pt100 temperature sensor 3 wires, Thermocouple, Platinum Rhodium Thermocouple, m6 rtd pt100 sensor thermocouple, ceramic b type thermocouple, Temperature Sensor K Type Thermocouple
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
