ACCURATE TEMPERATURE SENSING

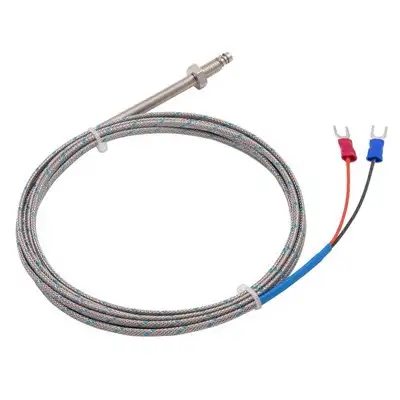

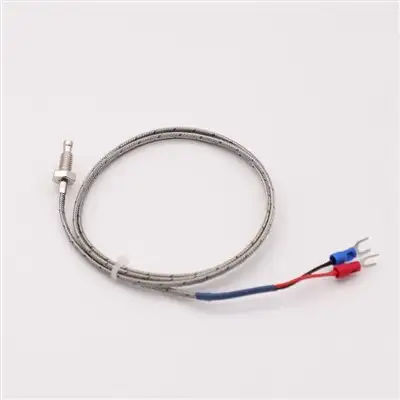

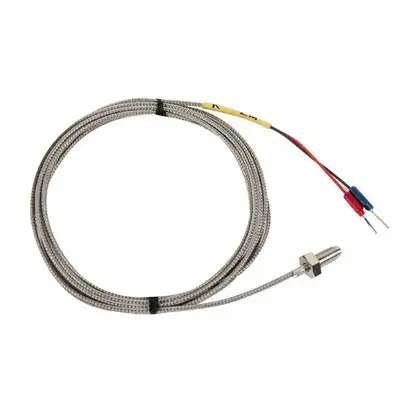

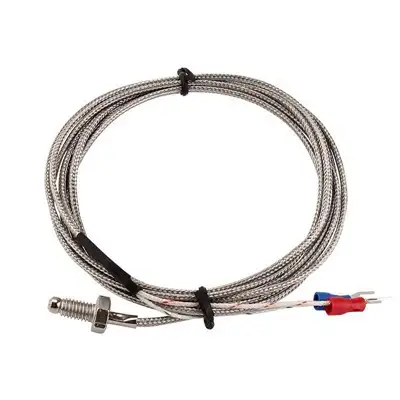

Thermocouple M8
Thermocouple M8 by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Thermocouple M8: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.

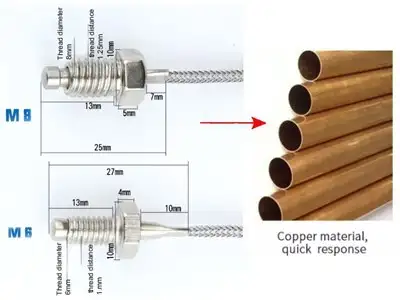

The archived configuration for Thermocouple M8 lists Cable material: Shielded wire,Fiberglass, PTFE, silicon; Thread size: M5/M6/M8; Thread size: M6*1/ M6*1.25. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Thermocouple M8, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Thermocouple M8 depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Cable material | Shielded wire,Fiberglass, PTFE, silicon |
|---|---|
| Thread size | M5/M6/M8 |
| K | 0-800℃ |
| J | 0-600 ℃ |
| E | 0-400 ℃ |
| PT100 | -200-500℃ |
| Thread size | M6*1/ M6*1.25 |
ARCHIVED PRODUCT INFORMATION
Description
The J type thermocouple is another type of thermocouple commonly used for temperature measurement. It is made of two different types of metals, iron and constantan, that are joined together to form a junction.
Like other thermocouples, when the junction is exposed to a temperature difference, a voltage is generated across the junction, which can be measured and used to determine the temperature. The J type thermocouple has a temperature range of approximately -210°C to 1200°C and is commonly used in low to medium temperature applications.
One of the advantages of the J type thermocouple is its high sensitivity, which allows for accurate temperature measurement even in small temperature differentials. It also has good accuracy and stability over its temperature range, making it a popular choice for many industrial and scientific applications.
| Cable material | Shielded wire,Fiberglass, PTFE, silicon |
| Thread size | M5/M6/M8 |
| K | 0-800℃ |
| J | 0-600 ℃ |
| E | 0-400 ℃ |
| PT100 | -200-500℃ |
| Thread size | M6*1/ M6*1.25 |
Product Advantage
1:High Precision Temperature control probe
2:Accurate measurement (imported chip),high sensitivity
3:fast response,anti-interference,Good temperature resistance
4:Protection spring,Stainless steel special plug
Appliction:professional selection,stable performance and more accurate,suitable for chemical industry
aquaculture ,food ,packing ,medical electronis and other industried with temperature control equipment
Application
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: thermocouple m8, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, pt100 temperature sensor 3 wires, industrial waterproof rtd pt100 sensor, k type screw type thermocouple, thermocouple temperature sensor pt100, m6 rtd pt100 sensor thermocouple, PT100 E K Type Thermocouple
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
