Thermocouple For Autoclave
Thermocouple For Autoclave by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Thermocouple For Autoclave: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Thermocouple For Autoclave lists Lead Material: PTFE Wire,Shielded Wire,Silicon Wire; Probe Size: 4mm* 30mm; Probe Material: Seamless 304 Stainless Steel. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Thermocouple For Autoclave, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Thermocouple For Autoclave depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product Name | Rtd Temperature Sensor Pt100 |
|---|---|
| Number | Pt100 |
| Temperature Range | -50~200℃ |
| Lead Material | PTFE Wire,Shielded Wire,Silicon Wire |
| Accuracy | ±1℃ |
| Probe Size | 4mm* 30mm |
| Probe Material | Seamless 304 Stainless Steel |
| Resistance | Class A , Class B, Calss 2B |
ARCHIVED PRODUCT INFORMATION
Description
The PT100 typically has a resistance of 100 ohms at 0°C, and its resistance changes by approximately 0.385 ohms per degree Celsius. By measuring the resistance of the PT100, it is possible to calculate the temperature of the medium being measured. PT100 sensors are widely used in industrial applications, such as in temperature control systems, process control systems, and laboratory equipment. They are known for their high accuracy, stability, and reliability, and can be used in a wide range of temperature ranges, from -200°C to 850°C. PT100 sensors can be connected to a variety of temperature controllers, data loggers, and other measurement devices, and are available in a variety of configurations, such as surface-mount sensors, immersion sensors, and probes. Overall, the PT100 is a versatile and reliable temperature sensor that is widely used in industrial and scientific applications, offering high accuracy, stability, and a wide range of temperature measurement capabilities.
|
Product Name |
Rtd Temperature Sensor Pt100 |
|
Number |
Pt100 |
|
Temperature Range |
-50~200℃ |
|
Lead Material |
PTFE Wire,Shielded Wire,Silicon Wire |
|
Accuracy |
±1℃ |
|
Probe Size |
4mm* 30mm |
|
Probe Material |
Seamless 304 Stainless Steel |
|
Resistance |
Class A , Class B, Calss 2B |
Product Advantages

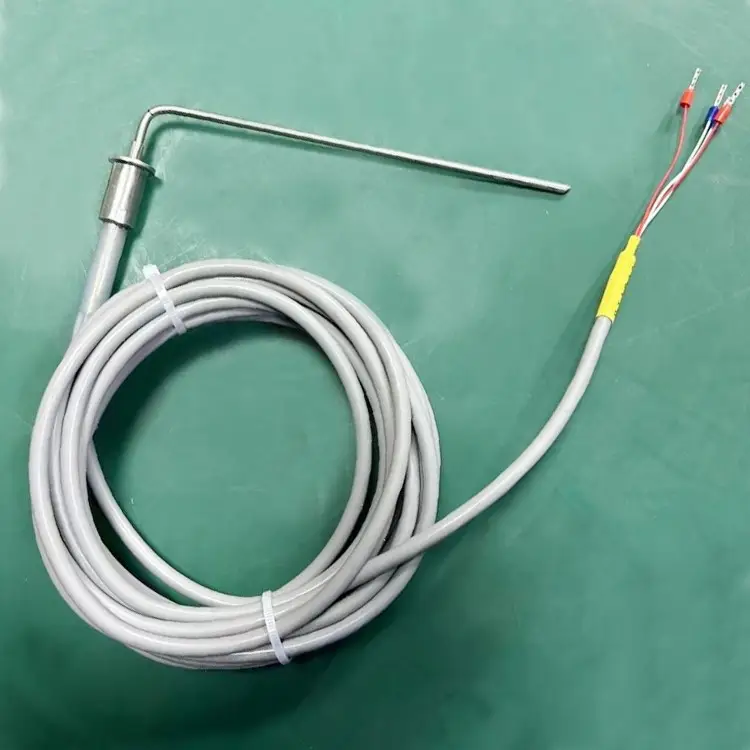

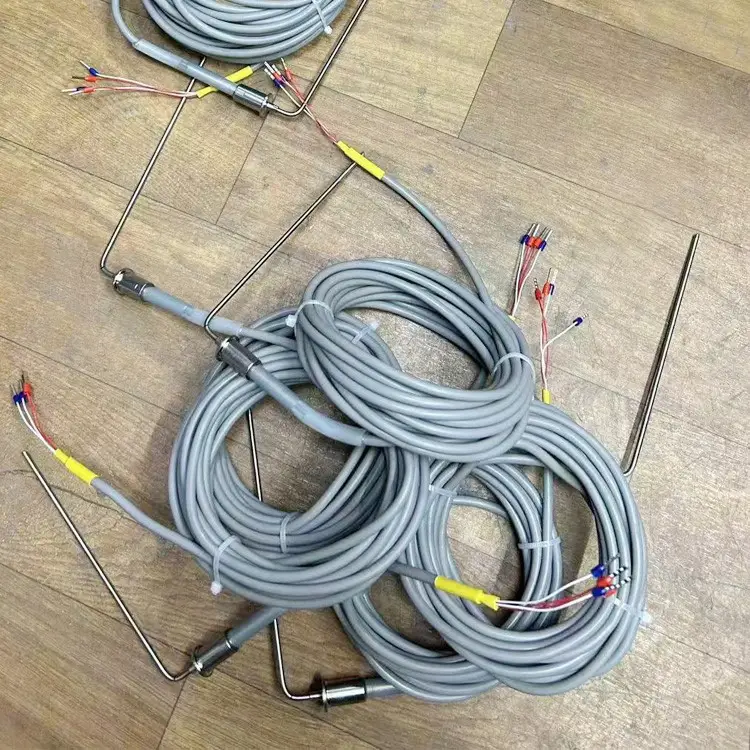

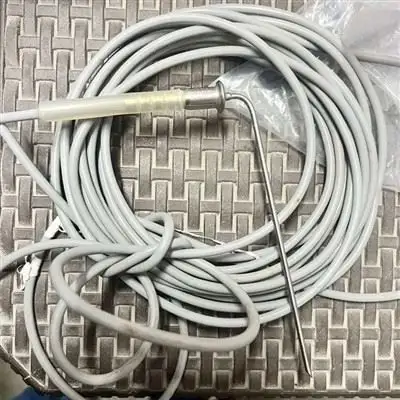

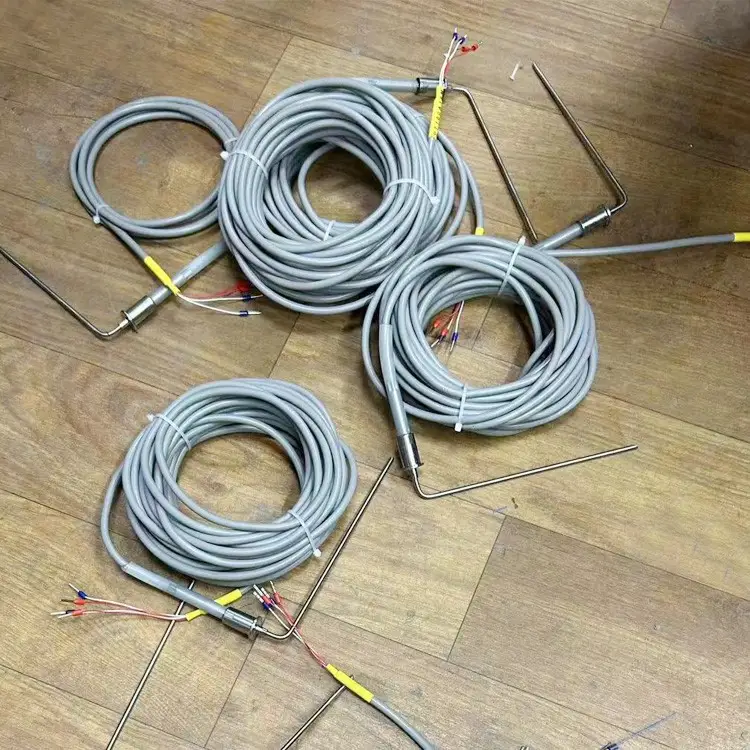

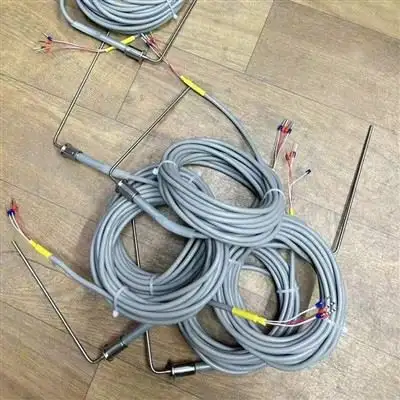

Design Pt100 detector mounted in protection tube with cannula-like (injection needle) probe tip.
The transition to cable is sealed with silicon and silicon hose.

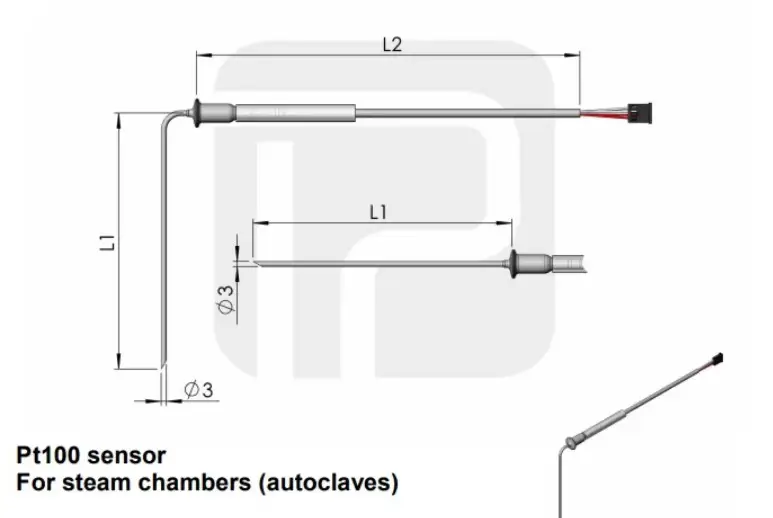

Example of use Temperature measurements of goods and atmosphere in steam chambers (steam autoclaves).
Max.temp. Probe: 180 °C Cable: 180 °C
Measuring probe Pt100 detector class A (IEC60751) Single or dual.
Protection tube Material, probe: stainless steel EN 1.4435
Material, transition fitting: stainless steel EN 1.4404
Angled or straight probe design.
Signal Connection 4-wire connection according to table below.
Silicon sheathed cable type: TEXSITW.
Product Advantages
1:Accurate measurement (imported chip)
2:fast response, anti-interference
3: waterproof and corrosion resistant (304 probe endlessly)
4:Good temperature resistance ,Internal anti-interference
