ACCURATE TEMPERATURE SENSING
Thermocouple Core
Thermocouple Core by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.

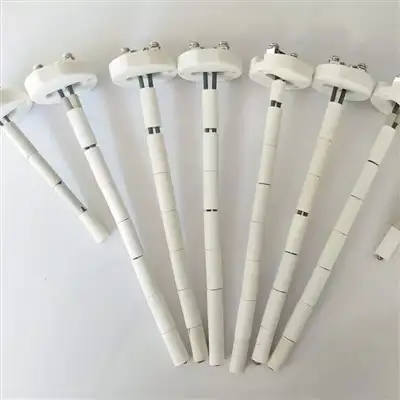

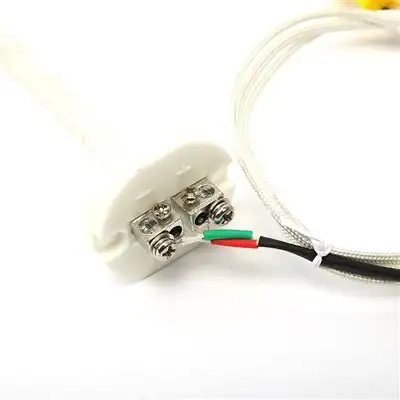

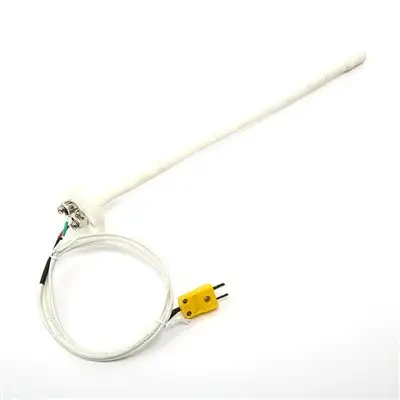

Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Thermocouple Core: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Thermocouple Core lists length: 300mm or custom; Default wire diameter: φ1.2mm (φ1.5mm φ2mmφ2.5mm φ3mm φ3.2mm optional). Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Thermocouple Core, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Thermocouple Core depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| name | Thermocouple Core |
|---|---|
| proper temperature | 0~1300℃ |
| Protective tube | Ceramic beads |
| Graduation number | K, E |
| length | 300mm or custom |
| application | Muffle furnace, resistance furnace, annealing furnace, furnace, etc. |
| Default wire diameter | φ1.2mm (φ1.5mm φ2mmφ2.5mm φ3mm φ3.2mm optional) |
ARCHIVED PRODUCT INFORMATION
Description
Overview
Video Description
00:0602:36
Product Description
|
name |
Thermocouple Core |
|
proper temperature |
0~1300℃ |
|
Protective tube |
Ceramic beads |
|
Graduation number |
K, E |
|
length |
300mm or custom |
|
application |
Muffle furnace, resistance furnace, annealing furnace, furnace, etc. |
|
Default wire diameter |
φ1.2mm (φ1.5mm φ2mmφ2.5mm φ3mm φ3.2mm optional) |
K type ceramic kiln furnace probe thermocouple sensors are used for temperature measurement and control. Thermocouples can be used to measure temperature and are widely used as temperature sensors for temperature measuring instruments. Mainly used for temperature measurement of muffle furnace, electric furnace, industrial use, also used in families, etc.
Ceramic kiln furnace probe thermocouple, is in size of : 1.5mm x 200mm/0.06 inch x 8 inch(D*L), -50 to 1300°C(-58 to 2372°F) measuring temperature
K type thermocouples can measure a wide range of temperatures and can be used in both low and high temperature environments; K type thermocouple sensors, with high precision, accurate measurement, fast response time, can quickly measure temperature, convenient for daily life and industrial environment use; Thermocouples can be used for different types of temperature measuring equipment and instruments, such as temperature controllers, digital thermocouple thermometer, hvac digital gauges, etc.
Product Advantage
1.Simple assembly and easy replacement;
2 · Assembled temperature sensing element, good shock resistance;
3. High measurement accuracy;Fast thermal response time;
4. Large measurement range (-200 ° C to 1300 ° C, under special conditions -270 ° C to 2800 ° C);
5. high mechanical strength, good pressure resistance;
6. Long service life.,OEM Accepted
