ACCURATE TEMPERATURE SENSING

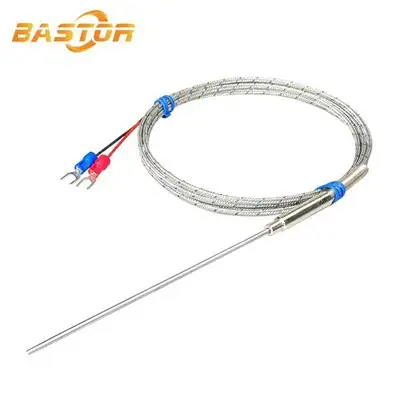

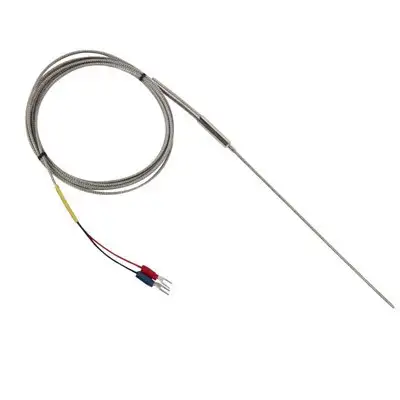

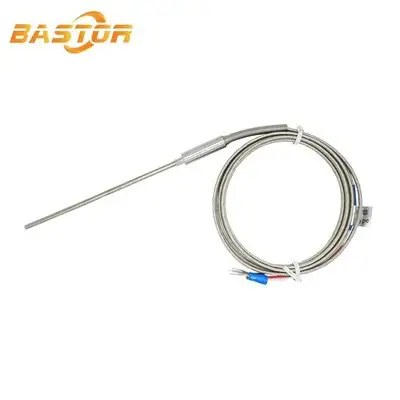

Thermocouple 0.5mm
Thermocouple 0.5mm by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (5)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Thermocouple 0.5mm: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Thermocouple 0.5mm lists tube diameter: min 1mm,1mm-10mm custom; Spring length: 70mm; Stainless steel material: Default 304 stainless steel ,customized 2520/3039/316. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Thermocouple 0.5mm, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
| Catalog name values | 0.5mm |
|---|
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Thermocouple 0.5mm depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| tube diameter | min 1mm,1mm-10mm custom |
|---|---|
| K type | 0-1250℃ |
| E type | 0-400℃ |
| PT100 | 0-500℃ |
| Spring length | 70mm |
| Wiring terminal | 2 wire (K/J/E/T),3 wire or 4 wire (PT100) |
| Stainless steel material | Default 304 stainless steel ,customized 2520/3039/316 |
ARCHIVED PRODUCT INFORMATION
Description
Thermocouple is a temperature measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit
Thermocouples are a widely used type of temperature measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures.
|
tube diameter |
min 1mm,1mm-10mm custom |
|
K type |
0-1250℃ |
|
E type |
0-400℃ |
|
PT100 |
0-500℃ |
|
Spring length |
70mm |
|
Wiring terminal |
2 wire (K/J/E/T),3 wire or 4 wire (PT100) |
|
Stainless steel material |
Default 304 stainless steel ,customized 2520/3039/316 |
Product Advantage
1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement
2:High temperature resistant Extension wire
3:Probe length can be customized, probe can be bent
4:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring
5:High Precision Temperature control probe
6:Quick response,OEM Accepted
