ACCURATE TEMPERATURE SENSING
Pt 100 Sensor
Pt 100 Sensor by LICHENGDA. RTD wiring and insertion geometry, configuration details and made-to-drawing quotation for repeatable process-temperature measurement.

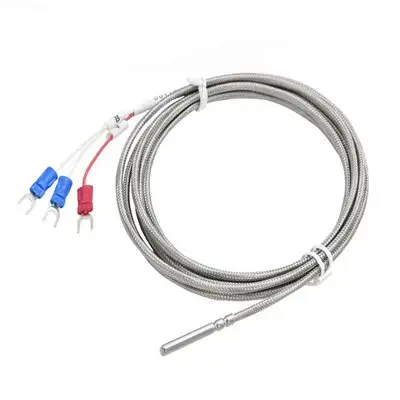

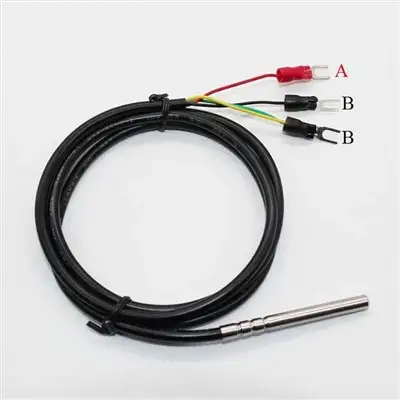

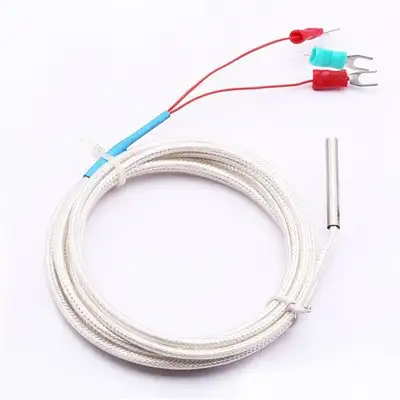

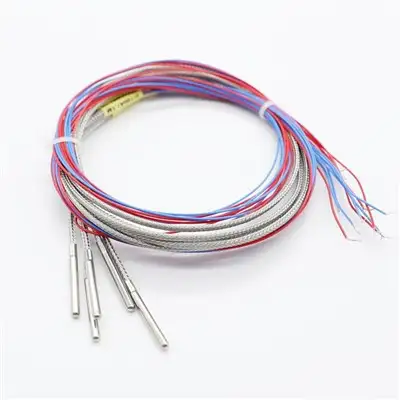

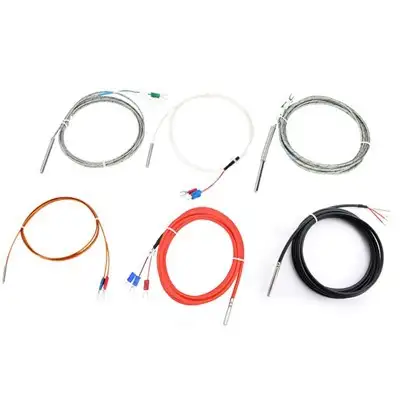

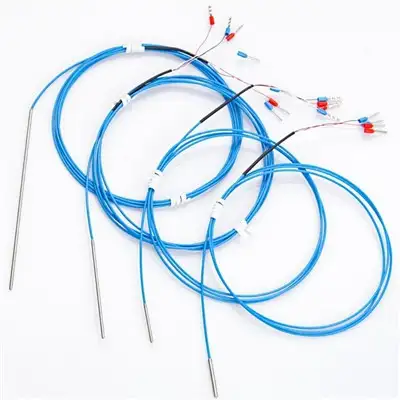

Product image gallery (7)
PRODUCT ENGINEERING
RTD wiring and insertion geometry
Pt 100 Sensor: Match the named platinum resistance sensor to the controller’s configured input. Confirm the resistance designation, accuracy class and 2-, 3- or 4-wire arrangement before connecting the probe.
Insertion depth, probe diameter and mounting contact affect response and measurement error. Route the signal cable away from heater power wiring and review cable resistance for the selected connection scheme.
For Pt 100 Sensor, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Repeatable process-temperature measurement. The final suitability of Pt 100 Sensor depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
| Model | probe | range | |
| Pt100 | standard 4*30mm or custom | -200 to 500℃ | |
| Resistance | Class A ,Class B | Precision | ±1℃,±2℃ |
| Wire material | Teflon/Silicone rubber (waterproof)/Glass fiber | ||
Product Advantages
1:Accurate measurement (imported chip)
2:fast response, anti-interference
3: waterproof and corrosion resistant (304 probe endlessly)
4:Good temperature resistance ,Internal anti-interference
Related Product Recommendation
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: thermocouple k, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, ceramic k type thermocouple, Platinum Rhodium Thermocouple, 4 Wires Rtd Pt100 Thermocouple Sensor, industrial waterproof rtd pt100 sensor, Temperature Sensor K Type Thermocouple, k type screw type thermocouple
Hot Tags: pt 100 sensor, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 4 Wire PT100 Temperature Sensor, high temperature thermocouples s type, 3 wire pt100 temperature sensor, 4 Wires Rtd Pt100 Thermocouple Sensor, K Type Temperature Sensor Handheld Thermocouple, industrial waterproof rtd pt100 sensor
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
