Probe Type Thermocouple K Temperature Sensor
Probe Type Thermocouple K Temperature Sensor by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (4)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Probe Type Thermocouple K Temperature Sensor: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Probe Type Thermocouple K Temperature Sensor lists Patch material: Pure copper silver plated patch; Wire material: shielded wire, glass fiber wire, PTFE wire, multi-strand wire; Extension cable length: 1m, 2m, 3m, 4m, 5m, 10m ect. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Probe Type Thermocouple K Temperature Sensor, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Probe Type Thermocouple K Temperature Sensor depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Patch material | Pure copper silver plated patch |
|---|---|
| Patch height | 1.1mm or customized |
| Inner hole | 4.2mm by default (customized for other apertures) |
| Temperature measurement | 600 degrees (k E) |
| Wire material | shielded wire, glass fiber wire, PTFE wire, multi-strand wire |
| Extension cable length | 1m, 2m, 3m, 4m, 5m, 10m ect |
| Type | K, E, J T, PT100 |
ARCHIVED PRODUCT INFORMATION
Description

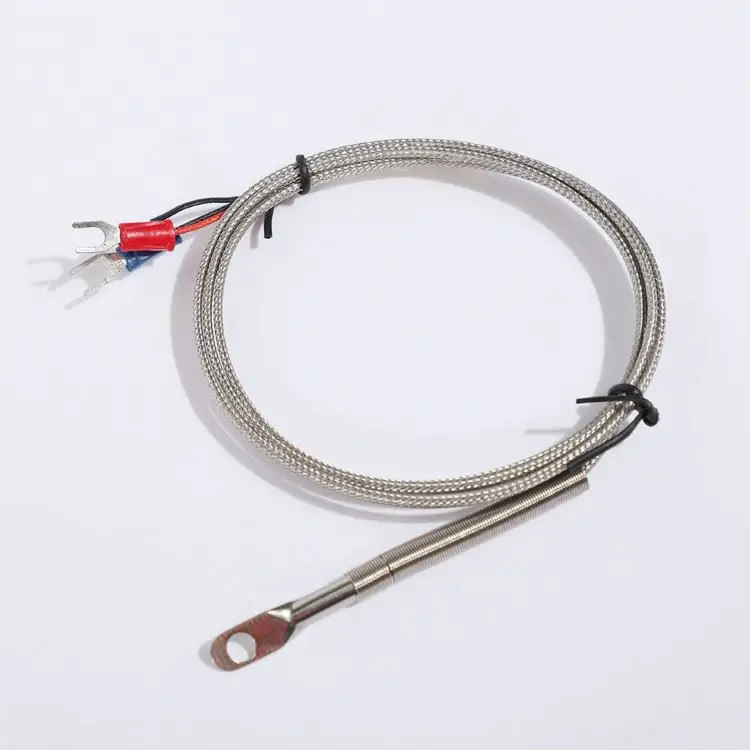

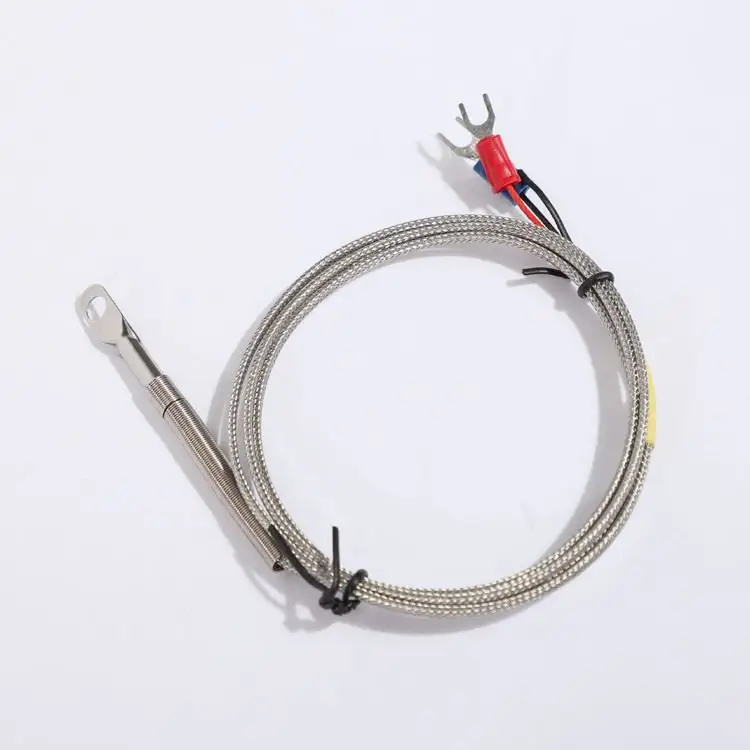

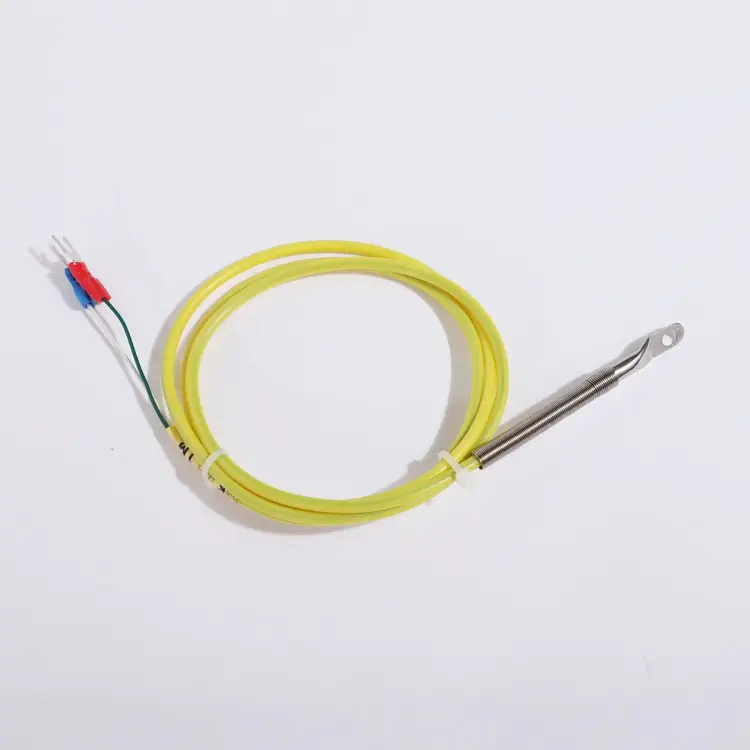

The thermal conductivity is very good, and it can accurately measure the surface temperature of the object. It is to lead the wire directly after putting the temperature sensing element on the protection tube.
Users can choose different indexing sleeve sizes and wire materials according to the different temperature or the size of the measurement space.
Generally used in small-scale temperature measurement occasions.
|
Patch material |
Pure copper silver plated patch |
|
Patch height |
1.1mm or customized |
|
Inner hole |
4.2mm by default (customized for other apertures) |
|
Temperature measurement |
600 degrees (k E) |
|
Wire material |
shielded wire, glass fiber wire, PTFE wire, multi-strand wire |
|
Extension cable length |
1m, 2m, 3m, 4m, 5m, 10m ect |
|
Type |
K, E, J T, PT100 |
Product Advantage
1: High Precision Temperature control probe
2: Accurate measurement accuracy, high sensitivity, wide measurement range -200-600℃
3: Accurate measurement (imported chip)
4: Fast response, anti-interference
5: Good temperature resistance
