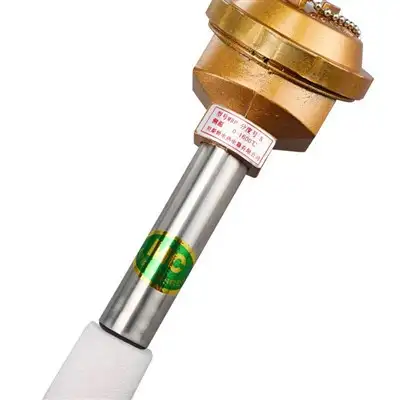

Platinum Thermocouple
Platinum Thermocouple by LICHENGDA. High-temperature atmosphere and protection tube, configuration details and made-to-drawing quotation for furnaces, kilns and high-temperature process control.
Product image gallery (2)
PRODUCT ENGINEERING
High-temperature atmosphere and protection tube
Platinum Thermocouple: For platinum-rhodium sensing, the process atmosphere and protection-tube material determine contamination exposure. Confirm the named thermocouple type, insertion length and mounting geometry together.
Review reference-junction compensation and compatible extension wiring. Keep the hot-zone sensing element protected during handling and request a configuration-specific calibration and temperature rating.
For Platinum Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Furnaces, kilns and high-temperature process control. The final suitability of Platinum Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
|
Thermocouple |
Length |
Insertion Depth |
Graduation |
Thermometric |
Specification |
Thermal response |
|
|
Category |
300 |
150 |
Mark |
Scope |
Diam (mm) |
Protection |
Time T (s) |
|
Single |
350 |
200 |
S/ R /B |
0~2500C |
Φ16 |
Corundum |
<150 |
|
Pt Rh30-Pt Rh6 |
400 |
250 |
Φ25 |
<360 |
|||
|
Double |
450 |
300 |
Φ16 |
<150 |
|||
|
PtRh 30-Pt Rh6 |
550 |
400 |
Φ25 |
<360 |
|||
|
Single Pt Rh 10-Pt |
650 |
500 |
Φ16 |
<150 |
|||
|
900 |
750 |
Φ25 |
<360 |
||||
|
Double Pt Rh10-Pt |
1150 |
1000 |
Φ16 |
<150 |
|||
|
1250 |
1100 |
Φ25 |
<360 |
||||
temperature sensor thermocouple is use of metal platinum (pt) resistance and temperature with a certain
functional relation of temperature sensor,Due to its high accuracy, large measuring range, good reproducibility
and stability, etc. That are widely used in medium temperature (-200 ℃ ~ 650 ℃) in the range of temperature
measurement.Diameter of protective tube4~20. Length according to user requirements
Product Advantage
1:High temperature resistant ceramic base ,99% corundum tube
2: imported chip ,Micro Welding Technology
3: the installation method can be customized,degrees fast response speed the installation
4: High accuracy,High quality temperature measuring wire
Package
Product Advantage
1: High temperature resistant ceramic base
2: Imported chip
3: Temperature resistance 0-2500℃
4: The installation method can be customized
5: Degrees fast response speed the installation
6: Micro Welding Technology
7: High accuracy, High quality temperature measuring wire
8: 99% corundum tube
1:The positive electrode (SP) of the S-type thermocouple wire is made of platinum rhodium alloy, which contains 10% rhodium and 90% platinum. The negative electrode (SN) is pure platinum, hence commonly known as a single platinum rhodium thermocouple. The thermocouple has a long-term operating temperature of 1300 ℃ and a short-term operating temperature of up to 1600 ℃.
2:·The positive electrode (RP) of the R-type thermocouple wire is made of platinum rhodium alloy, which contains 13% rhodium and 87% platinum. The negative electrode (RN) is pure platinum, so it is commonly known as a single platinum rhodium thermocouple. The long-term use temperature is 1300 ° C, and the short-term use temperature can reach 1600 ° C
3:The positive electrode (BP) of the B-type thermocouple wire is made of platinum rhodium alloy, which contains 30% rhodium and 70% platinum. The negative electrode (BN) is a platinum rhodium alloy, which contains 6% rhodium and 94% platinum, hence commonly known as a dual platinum rhodium thermocouple. The long-term use temperature of this thermocouple is 1600 ℃, and the short-term use temperature can reach 1800 ℃.
