K-type Thermocouple Thermometer
K-type Thermocouple Thermometer by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
K-type Thermocouple Thermometer: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for K-type Thermocouple Thermometer lists Cable Length: 0.4m (extended 1.5m) or customized; tube diameter: 6mm or customized; Probe Length: 150mm (6") or customized; Probe Material: Stainless Steel. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For K-type Thermocouple Thermometer, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of K-type Thermocouple Thermometer depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Operating Temperature | 0 – 1100 C |
|---|---|
| Cable Length | 0.4m (extended 1.5m) or customized |
| tube diameter | 6mm or customized |
| Probe Length | 150mm (6") or customized |
| Probe Material | Stainless Steel |

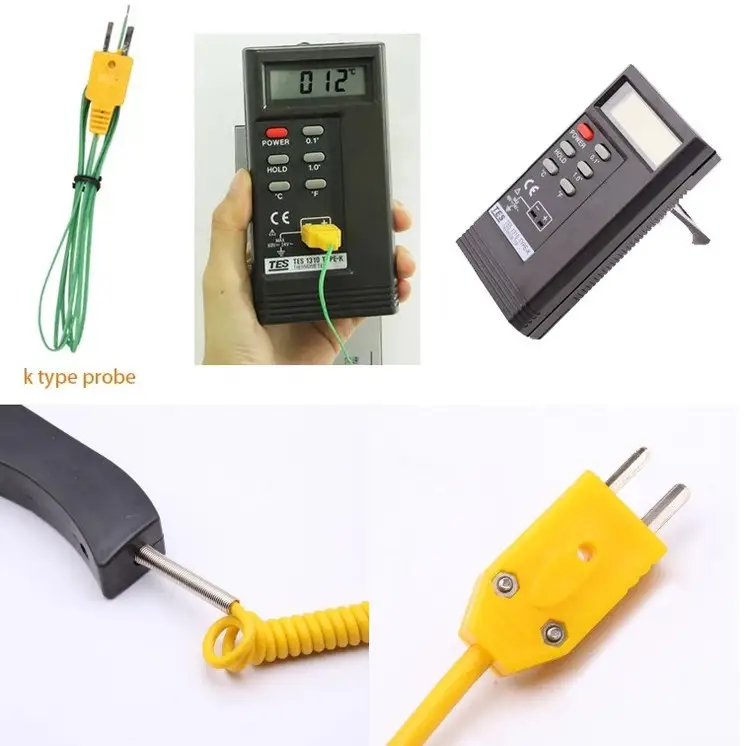

| Connector | Standard K Type,pt100 |
ARCHIVED PRODUCT INFORMATION
Description
Working Principle of Hand-held Thermocouple Temperature Sensor, Sheathed Thermocouple K type Thermocouple is a temperature sensing element, it can be directly perceived level of transformation temperatures. Twoends ofconductor with different materials is weldingtogether to form a closed loop,
when there is a temperature difference between the two ends, it will generate thermoelectric power in the loop.
|
Operating Temperature |
0 – 1100 C |
|
Cable Length |
0.4m (extended 1.5m) or customized |
|
tube diameter |
6mm or customized |
|
Probe Length |
150mm (6") or customized |
|
Probe Material |
Stainless Steel |
|
Connector |
Standard K Type,pt100 |
Product Advantages
1:Measurement temperature range:0-1100℃

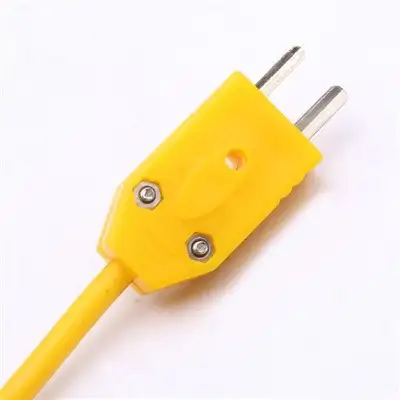

2:Integrated plug design, greatly improving service life

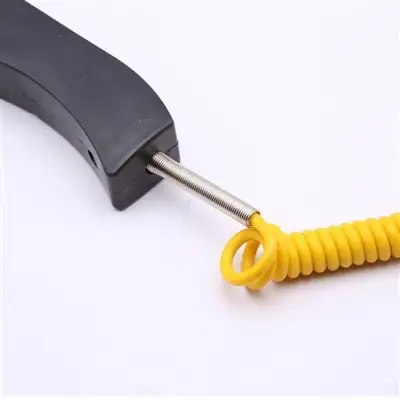

3: Wire protection spring design to protect the wire is not easy to break
4:High-quality bakelite, comfortable grip
5:304 stainless steel, qualified temperature measuring wire, short response time,
6:small dynamic error, flexible installation, wide measuring range, high mechanical strength
7:fast response, anti-interference,
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: k-type thermocouple thermometer, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, thermocouple temperature sensor pt100, Stainless Steel PT100 Rtd Thermocouple, k type screw type thermocouple, High Temperature Sensor Thermocouple K Type, high temperature k type thermocouple, k type pt100 thermocouples rtd
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
