ACCURATE TEMPERATURE SENSING
High Accuracy Thermocouple
High Accuracy Thermocouple by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.

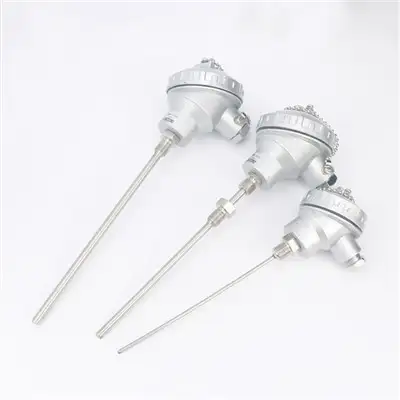

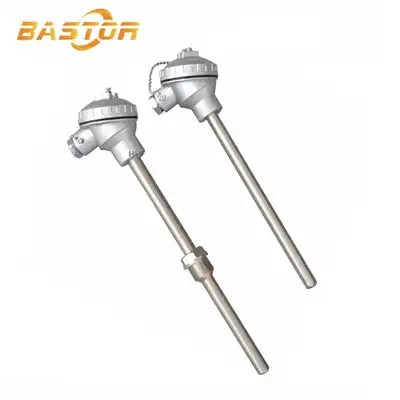

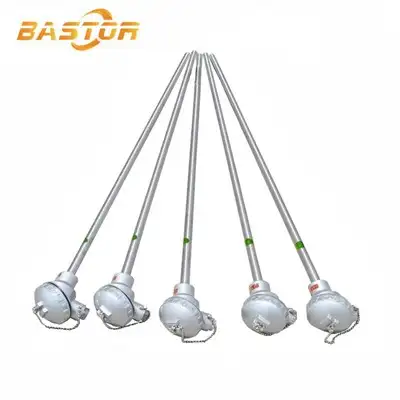

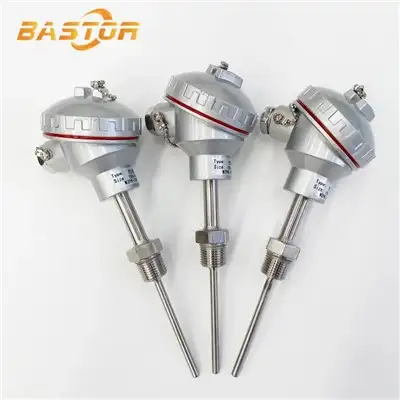

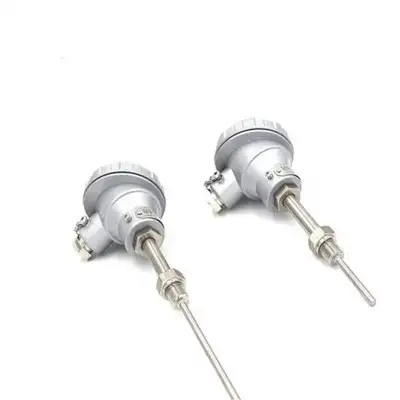

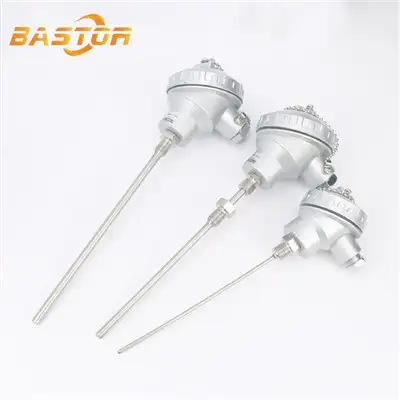

Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
High Accuracy Thermocouple: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
For High Accuracy Thermocouple, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of High Accuracy Thermocouple depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Sensor Type | Confirmed for the application |
|---|---|
| Probe / Length | Made to drawing |
| Cable / Mounting | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
thermocouple as measure temperature sensor, and usually display meter, recording meter and
electronic regulator, at the same time, also can be used as a prefabricated thermocouple temperature
sensing element, it can be directly measured from 0 ℃ ~ 1200 ℃ in the process of various production
within the scope of the liquid, steam and gas medium, as well as the temperature of the solid surface.
| Size | Type | length | Temperature | Material | thread |
| WRN-130 WRN-230 |
K | L=300 | 0-1200℃ |
SS304 SS2520 SS201 |
M27*2 or custom |
| L=400 | |||||
| L=500 | |||||
| L=600 | |||||
| L=700 | |||||
| L=800 | |||||
| L=900 |
Product advantage
1:Size: WRN-130 (Without thread) ,WRN-230 (M27*2 thread)
2:Tube diameter:16mm (6-20mm diameter can be customized)
3:Wire diameter:1.5mm (Stander size,can be customized)
4:Stainless steel protective tube:SS304
Related Product
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Buyer Feedback
Hot Tags: high accuracy thermocouple, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, High Temperature Sensor Thermocouple K Type, K E T PT100 RTD Thermocouple, Stainless Steel Thermocouple, PT100 E K Type Thermocouple, temperature sensor thermocouple pt100 rtd, k type temperature thermocouples
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
