ACCURATE TEMPERATURE SENSING

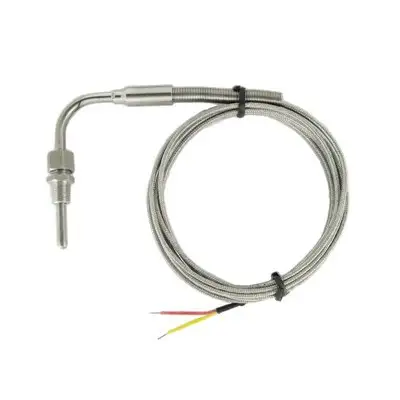

Exhaust Gas Temperature Sensor
Exhaust Gas Temperature Sensor by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (7)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Exhaust Gas Temperature Sensor: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Exhaust Gas Temperature Sensor lists Probe Material:: Stainless Steel; Probe Diameter:: Approx. 5 mm/0.2inch; Probe Length(Front):: Approx. 80mm/3.2 inch; Threads Size:: 1/8in PT. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Exhaust Gas Temperature Sensor, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Exhaust Gas Temperature Sensor depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

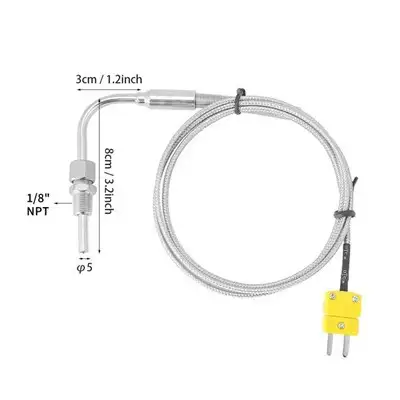

| Measuring Range: | 0-1100 ℃ |
|---|---|
| Thermal Response Time: | 0.3 (s) |
| Probe Material: | Stainless Steel |
| Probe Diameter: | Approx. 5 mm/0.2inch |
| Probe Length(Front): | Approx. 80mm/3.2 inch |
| Threads Size: | 1/8in PT |
| Threads Lock: | Adjustable Pressure Lock(Adjustable Length) |
| Connector: | Mini K Type Connector |
ARCHIVED PRODUCT INFORMATION
Description
About this item
A QUICK REPONSE DUE TO THE EXPOSED TIP --- This EGT thermocouple of K-type has a exposed tip for fast response.
SAFE TO USE --- This k-type sensor probes has been tested in good working condition before auction.The yellow male plug of the front end opening, high temperature resistance, insulation.
WIDE RANGE OF APPLICATIONS --- This EGT K thermocouple suitable for all our temperature controllers and provides accurate and precise details.
LONG USING LIFE --- This type k thermocouple is flexible, made of stainless steel you can form and bend freely without risk of cracking.
Measuring range --- It can be measured in the range of 0-1250 ° C
| Measuring Range: | 0-1100 ℃ |
| Thermal Response Time: | 0.3 (s) |
| Probe Material: | Stainless Steel |
| Probe Diameter: | Approx. 5 mm/0.2inch |
| Probe Length(Front): | Approx. 80mm/3.2 inch |
| Threads Size: | 1/8in PT |
| Threads Lock: | Adjustable Pressure Lock(Adjustable Length) |
| Connector: | Mini K Type Connector |
Features:

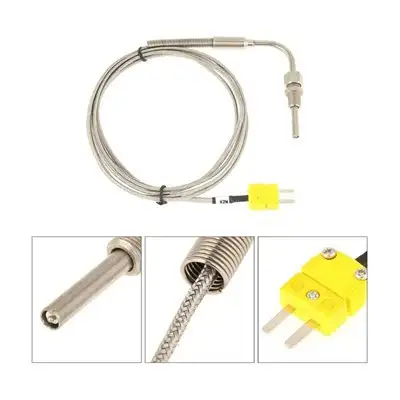

EGT thermocouple has exposed tip for fast response
Fits all kinds of temperature controllers
Allows forming and bending of the thermocouple without the risk of cracking
The yellow male plug of the front end opening, high temperature resistance
This item has been tested in good working condition before auction
QUICK RESPONSE: The tip of this 1/8" PT temperature probe sensors is exposed and can respond quickly at the moment of contact.
STRONG ENVIRONMENTAL ADAPTABILITY: The EGT thermocouple has been tested in different environments and can be used stably in most environments.
STRONG MATERIAL RESISTANCE: The wire of thistemperature probe sensors does not cause bending cracking due to the formation of thermocouples.
HIGH TEMPERATURE RESISTANT COATING: You may notice the yellow coating on the front of the product, which is created by the addition of high temperature and insulating materials.
STRICT ENTRY INSPECTIOn: This K Type 1/8" PT temperature probe sensors has passed strict market standard stress testing before it is sold, which ensures the safe use and durability of the product.
