Diaphragm Pressure Gauge
Diaphragm Pressure Gauge by LICHENGDA. Thermocouple alloy and junction selection, configuration details and made-to-drawing quotation for industrial temperature monitoring and furnace control.
Product image gallery (10)
PRODUCT ENGINEERING
Thermocouple alloy and junction selection
Diaphragm Pressure Gauge: Match thermocouple type, polarity and extension cable to the controller input. Select protection-tube material and grounded or ungrounded junction for the atmosphere, electrical noise and response required.
Define insertion depth and the mechanical support at the process connection. A temperature stated in a product name needs confirmation for the complete probe assembly, cable transition and continuous duty.
The archived configuration for Diaphragm Pressure Gauge lists Connector material: 304SS, 304L, 316SS, 316L, 904L, HC276, and Ti for customization.; Membrane material: 316L, HC276, Ta, Monel, Ni; 316L gold-plated, 904L, Ti (customizable); Case Material: Carbon steel spray molding, 304SS, 316L optional. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Diaphragm Pressure Gauge, send the controller input, required measurement range, accuracy, probe drawing and cable or connector details. Ask for the agreed sensor designation and inspection requirements on the quotation.
Application and reference configuration
Industrial temperature monitoring and furnace control. The final suitability of Diaphragm Pressure Gauge depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Model | Diaphragm Pressure Gauge |
|---|---|
| Accuracy | grades 1.6 and 2.5 are customizable. |
| Measuring range | -0.1~0.... 60Mpa customizable |
| Ambient temperature | -40~80 °C |
| Medium temperature | -40~100 °C |
| Connector material | 304SS, 304L, 316SS, 316L, 904L, HC276, and Ti for customization. |

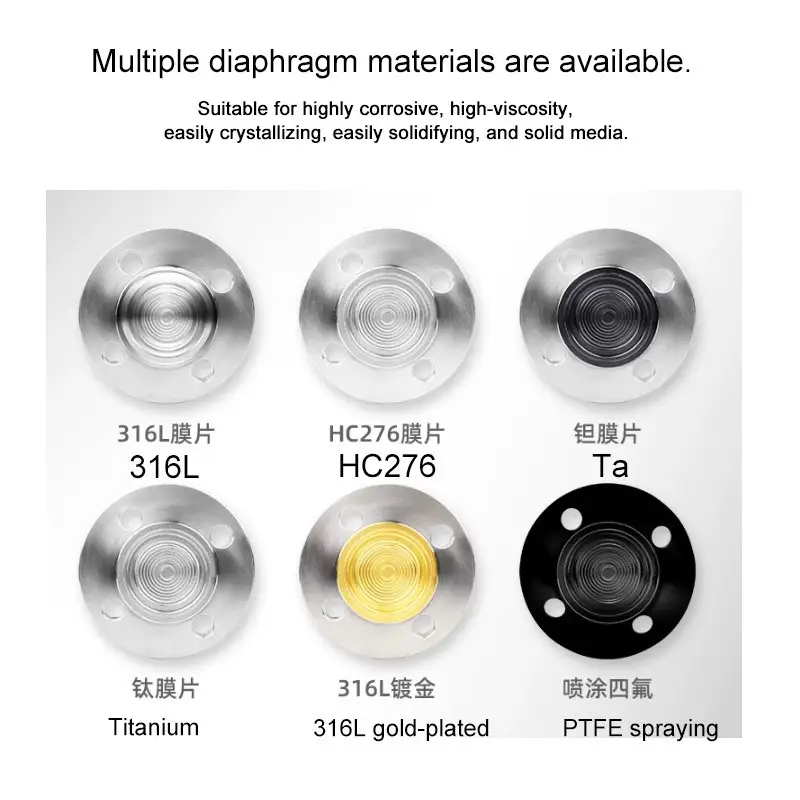

| Membrane material | 316L, HC276, Ta, Monel, Ni; 316L gold-plated, 904L, Ti (customizable) |
| Case Material | Carbon steel spray molding, 304SS, 316L optional |
| Diaphragm filling | shock-resistant version filled with glycerin or Wacker silicone oil |
ARCHIVED PRODUCT INFORMATION
Description
| Model | Diaphragm Pressure Gauge |
| Accuracy | grades 1.6 and 2.5 are customizable. |
| Measuring range | -0.1~0.... 60Mpa customizable |
| Ambient temperature | -40~80 °C |
| Medium temperature | -40~100 °C |
| Connector material | 304SS, 304L, 316SS, 316L, 904L, HC276, and Ti for customization. |
| Membrane material | 316L, HC276, Ta, Monel, Ni; 316L gold-plated, 904L, Ti (customizable) |
| Case Material | Carbon steel spray molding, 304SS, 316L optional |
| Diaphragm filling | shock-resistant version filled with glycerin or Wacker silicone oil |
1 Core Structure
Gauge Head: Made of full stainless steel (mostly 304/316L), the dial is marked with dual scales of MPa (megapascal) and bar, with an accuracy class of 1.6, complying with industrial metering standards.
Isolation Diaphragm Structure: A layer of corrosion-resistant metal diaphragm is installed between the pressure gauge and the measured medium. The pressure is transmitted through the filled silicone oil, completely isolating the medium from the pressure gauge movement.

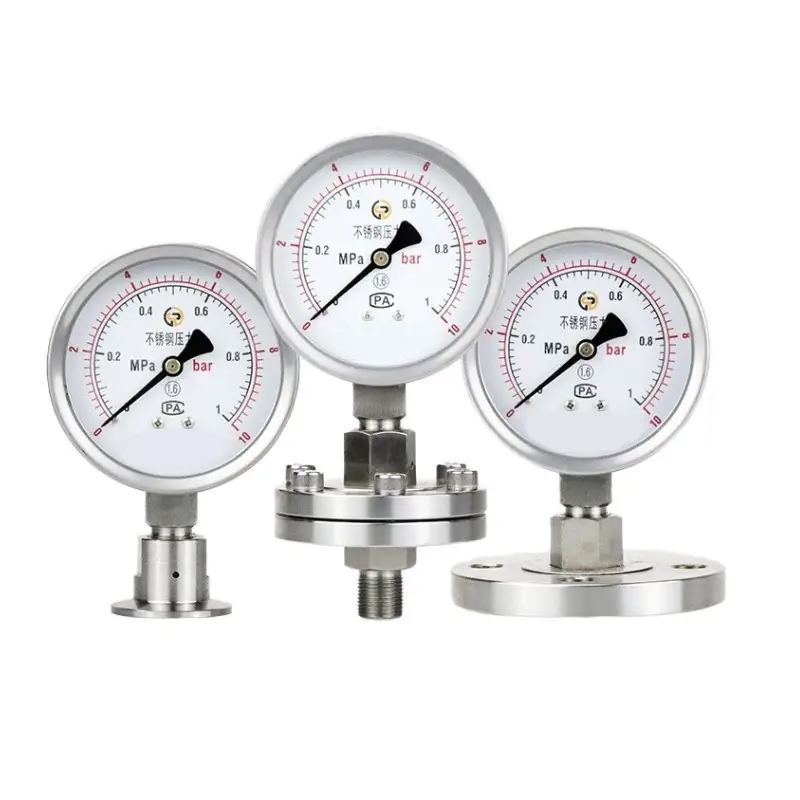

Three Installation Interfaces:

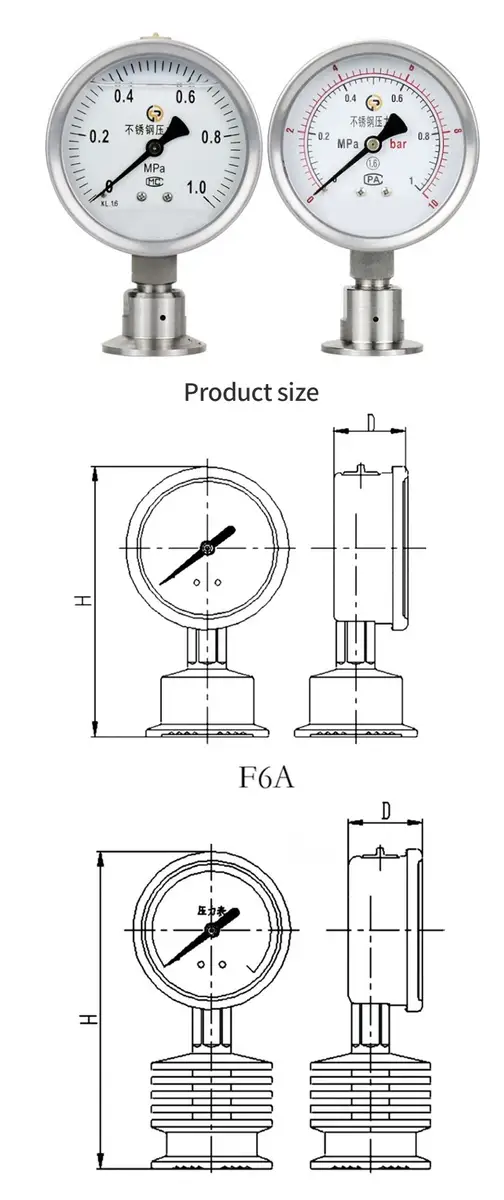

Left: Sanitary Clamp Type (Quick-install Type): Complies with food and pharmaceutical industry hygiene standards, facilitating quick disassembly and cleaning.

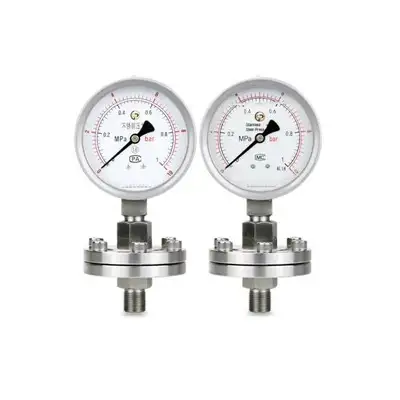

Middle: Threaded Type (External Thread Connection): General-purpose industrial installation, suitable for standard threaded interfaces of pipelines and tanks.

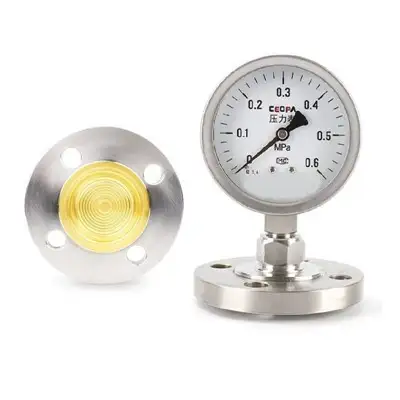

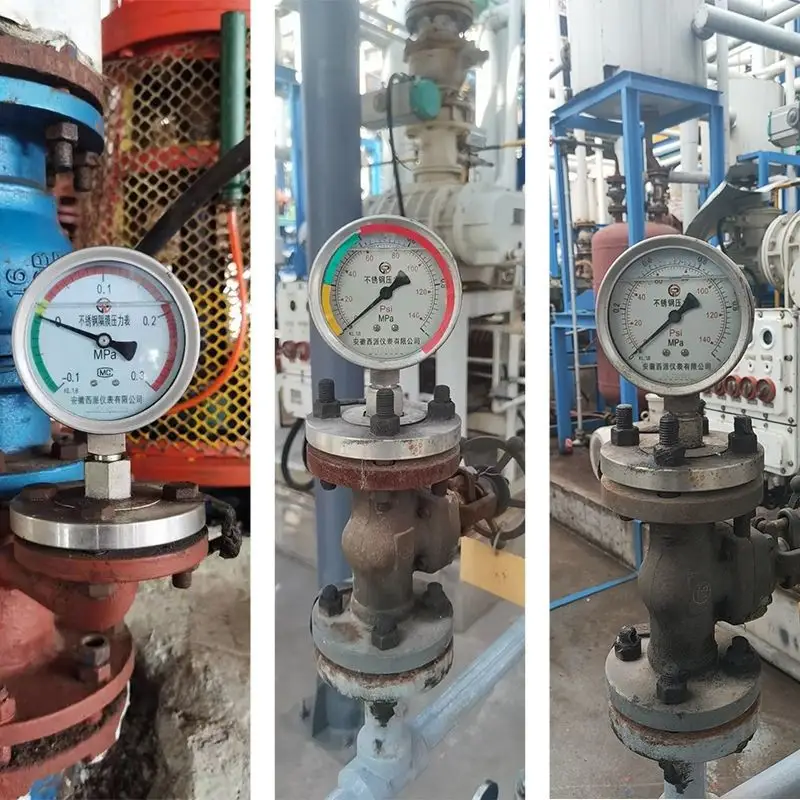

Right: Flange Type (Flange Connection): Special for large-diameter, high-pressure working conditions, with strong sealing performance, suitable for chemical, petroleum and other scenarios.
Isolation Protection: The diaphragm isolates the measured medium from the internal components, preventing corrosion, clogging, and contamination.
Compatible with Aggressive Media: Suitable for measuring highly corrosive, viscous, crystallizing, high-temperature, low-temperature, and particle-laden media.
Stable Accuracy: Reduces direct impact from the medium on the sensing element, ensuring long-term measurement stability.
Flexible Installation: Available with various diaphragm materials, connection types, and seal configurations.
Durable and Safe: Extends instrument lifespan and lowers maintenance and replacement costs.
Wide Industry Applicability: Ideal for harsh operating conditions in chemical, petrochemical, pharmaceutical, food, and water treatment industries.
Core Advantages and Selling Points
✅ Superior Corrosion Resistance: Full stainless steel structure + isolation diaphragm, resistant to strong acids, alkalis and corrosive media, solving the problem of easy corrosion and damage of ordinary pressure gauges.
✅ Sanitary Design: The clamp-type model has no hygienic dead ends, complying with GMP and FDA hygiene standards, suitable for food, pharmaceutical, bioengineering and other industries.
✅ Anti-clogging & Anti-crystallization: The diaphragm structure can isolate high-viscosity, easy-to-crystallize and particle-containing media, avoiding movement blockage.
✅ Dual-scale Intuitive Reading: Simultaneously marked with two internationally used pressure units of MPa and bar, adapting to working condition requirements of different standards
✅ Stable Temperature & Pressure Resistance: Adaptable to medium-high temperature and high-pressure working conditions, and some models support vacuum measurement (negative pressure).
Key Selection Parameters
Range: Conventional 0~1.6MPa, customizable for vacuum negative pressure and high-pressure ranges.
Interface Type: Select clamp (sanitary type), thread (general type), or flange (high-pressure type) according to working conditions.
Material: 304 stainless steel (for general working conditions) / 316L stainless steel (for strong corrosion and sanitary working conditions).
Accuracy Class: Conventional 1.6, customizable for higher accuracy (1.0 / 0.5).
Filling Fluid: Select silicone oil (conventional) or high-temperature oil according to medium temperature.
Typical Application Scenarios
Food & Beverage / Biopharmaceuticals: Pressure monitoring of sanitary pipelines, fermentation tanks, and sterilization equipment.
Petrochemical / Metallurgy: Pressure measurement of corrosive fluids and high-temperature and high-pressure pipelines.
Water Treatment / Environmental Protection: Pressure monitoring of corrosive media such as sewage and chemical wastewater.
Papermaking / Printing & Dyeing: Pressure detection of high-viscosity and easy-to-crystallize slurries.
