DIRECT LIQUID HEATING
Industrial Electric Water Immersion Tubular Heater
Industrial Electric Water Immersion Tubular Heater by LICHENGDA. Wetted material and minimum liquid level, configuration details and made-to-drawing quotation for tanks and process vessels.

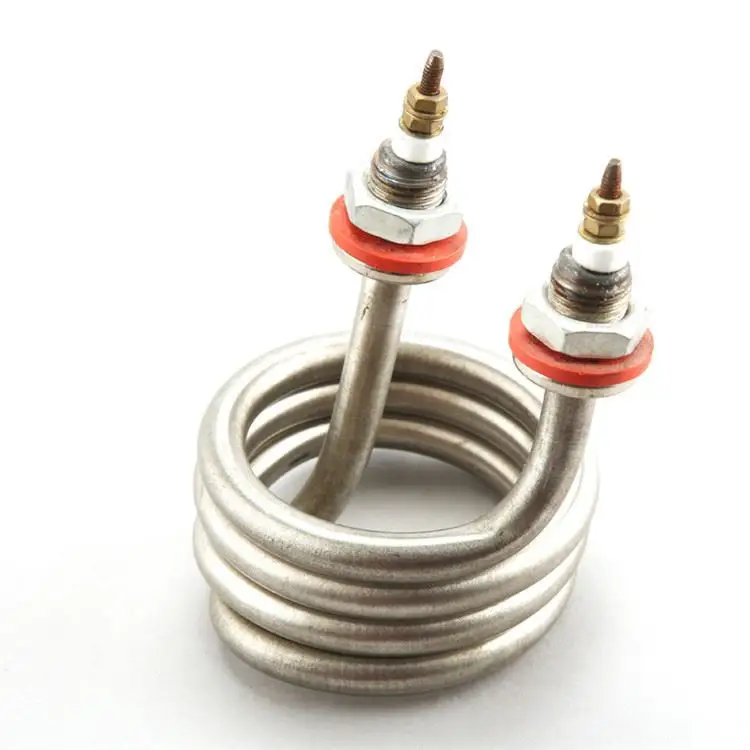

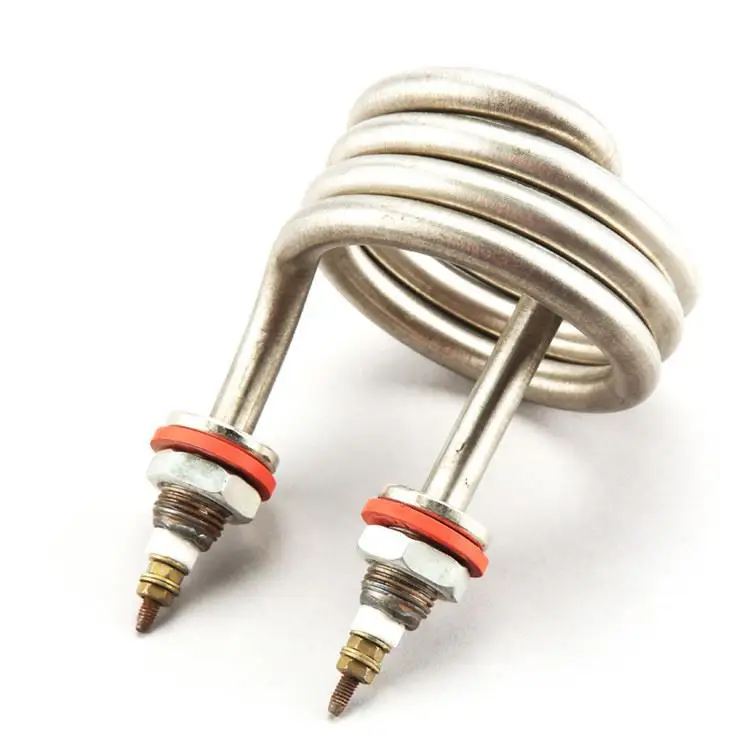

Product image gallery (5)
PRODUCT ENGINEERING
Wetted material and minimum liquid level
Industrial Electric Water Immersion Tubular Heater: Select the sheath against the actual liquid chemistry, concentration and operating temperature. Confirm insertion length and thread or flange geometry from the tank drawing.
Keep the active section submerged during operation. Review liquid-level and independent temperature protection, sediment buildup and access for scale removal before commissioning.
For Industrial Electric Water Immersion Tubular Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Industrial Electric Water Immersion Tubular Heater lists Material: Stainless steel 304/ 321/ 316/ 310S, Incoloy 800 840; Power Tolerance: +5% -10%; Tube Diameter: 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc; Voltage: 380V 230V 220V 240V or customzied. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Industrial Electric Water Immersion Tubular Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Tanks and process vessels. The final suitability of Industrial Electric Water Immersion Tubular Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product | Air Tubular Heater |
|---|---|
| Material | Stainless steel 304/ 321/ 316/ 310S, Incoloy 800 840 |
| Power Tolerance | +5% -10% |
| Tube Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |

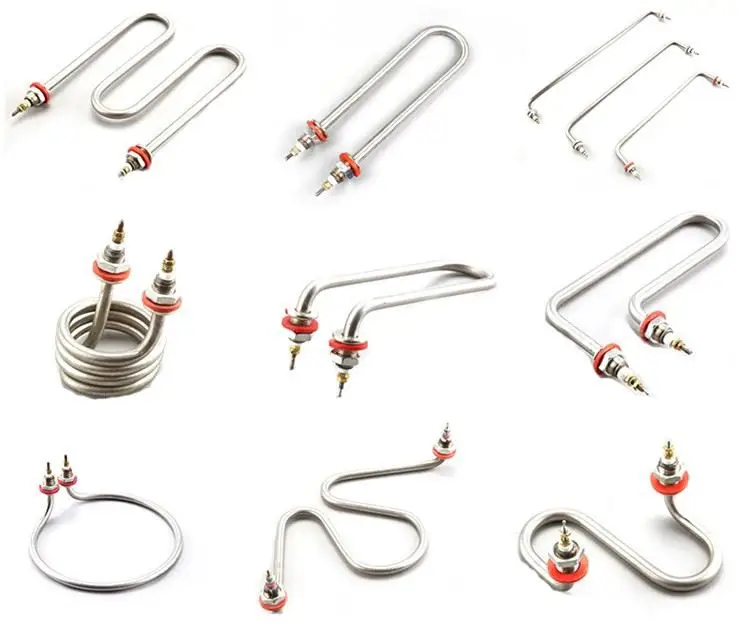

| Shape | Round, straight, U type, W type, double W type and so on |
| Voltage | 380V 230V 220V 240V or customzied |
| Thread | M12 M14 M16 M18 |
| Application | Drying, Heat Treating, Annealing, Load Banks, Curing |
ARCHIVED PRODUCT INFORMATION
Description
Product | Air Tubular Heater |
Material | Stainless steel 304/ 321/ 316/ 310S, Incoloy 800 840 |
Power Tolerance | +5% -10% |
Tube Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc |
Shape | Round, straight, U type, W type, double W type and so on |
Voltage | 380V 230V 220V 240V or customzied |
Thread | M12 M14 M16 M18 |
Application | Drying, Heat Treating, Annealing, Load Banks, Curing |
Advantage
·Increase heat transfer surface area
·Safe to operate, Durable, Easy to maintain
·Secondary insulated bushings available
·High temperature resistance and wide application range. Corrosion resistance
