DIRECT LIQUID HEATING
immersion heater boiler
immersion heater boiler by LICHENGDA. Oil circulation and surface loading, configuration details and made-to-drawing quotation for oil tanks and circulating thermal systems.
Product image gallery (6)
PRODUCT ENGINEERING
Oil circulation and surface loading
immersion heater boiler: Oil viscosity and circulation affect heat removal from the sheath. Confirm the fluid grade, cold-start temperature and permissible film temperature before agreeing the surface loading.
Specify the tank connection and active immersion length. Review circulation or level interlocks and independent over-temperature protection so stagnant oil cannot overheat locally.
For immersion heater boiler, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For immersion heater boiler, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Oil tanks and circulating thermal systems. The final suitability of immersion heater boiler depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| 220V 3KW | 210mm |
|---|---|
| 220V 6KW | 250mm |
| 220V 9KW | 300mm |
| 220V 12KW | 350mm |
| 220V 15KW | 600mm |
ARCHIVED PRODUCT INFORMATION
Description
Product Description

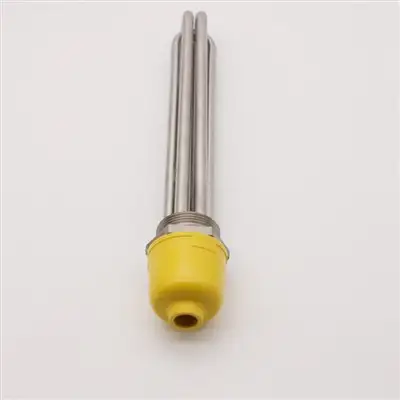

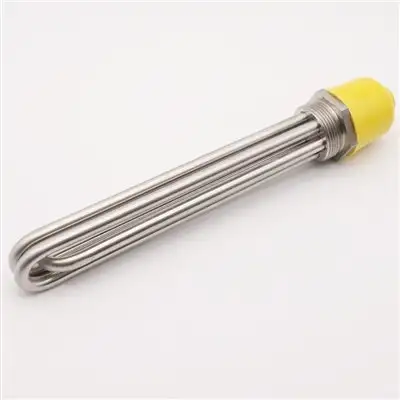

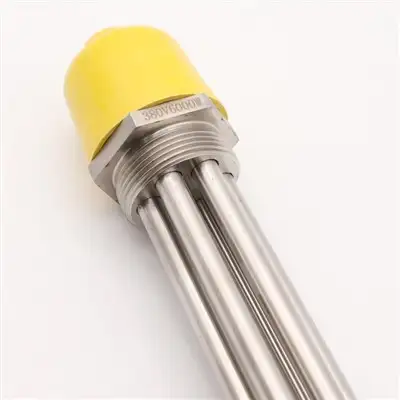

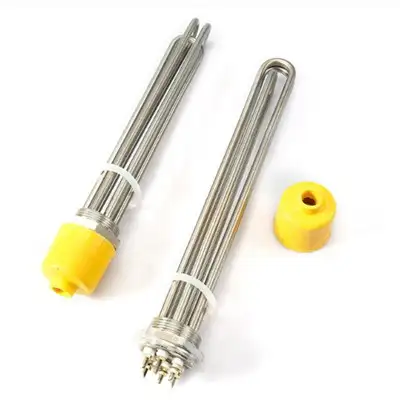

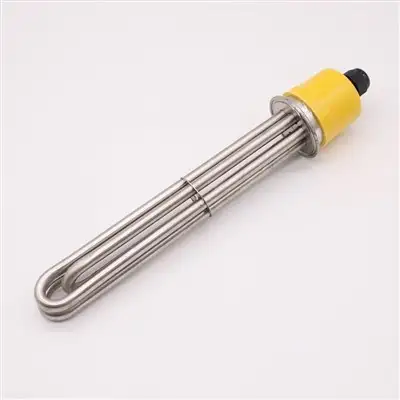

The heating pipe adopts stainless steel tube coat, modified magnesium oxide powder, high-performance
nickel-chromium electrothermal alloy wire and other materials. This series of products can be widely
used in heating water, oil, air, nitrate solution, acid solution, alkali solution and low-melting point metals
(aluminum, zinc, tin, Babbitt alloy).
| Voltage/Power | Tube length |
DN40( Dia 47mm) DN50( Dia 58mm) |
| 220V 3KW | 210mm | |
| 380V 3KW | ||
| 220V 6KW | 250mm | |
| 380V 6KW | ||
| 220V 9KW | 300mm | |
| 380V 9KW | ||
| 220V 12KW | 350mm | |
| 380V 12KW | ||
| 220V 15KW | 600mm | |
| 380V 15KW |
1: Thickened 304 stainless steel, resistant to corrosion and rust
2: High quality magnesium oxide powder, fast heating, stable performance, and long service life
3: Laser welding with mature technology and convenient installation
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: immersion heater boiler, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, cheap ultrasonic level sensor, fuel sensor ultrasonic fuel level, pp float switch liquid level float switch, Electric Level Plastic Water Float Switch, Silicon Nitride Ceramic Ignition Rod, ceramic s type thermocouple sensor
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
