DIRECT LIQUID HEATING

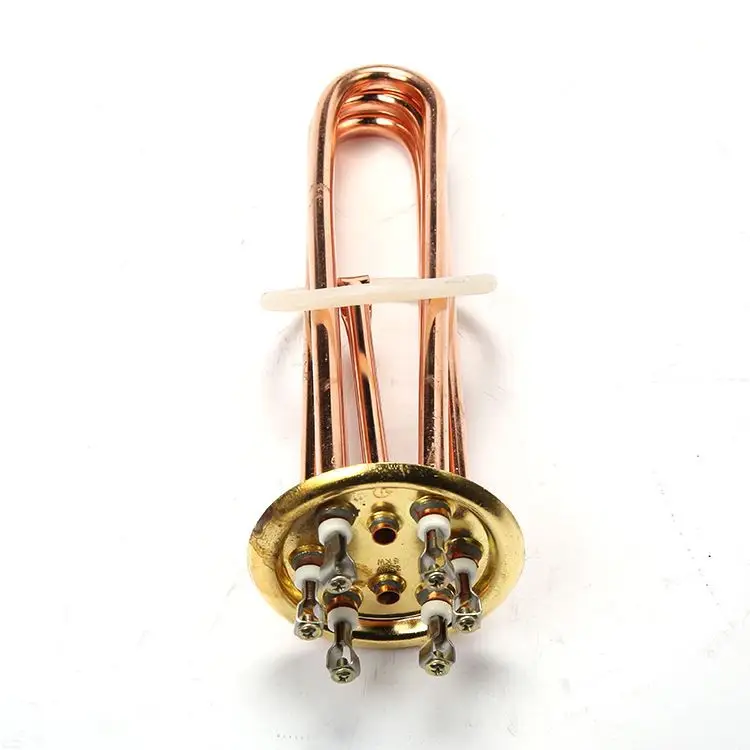

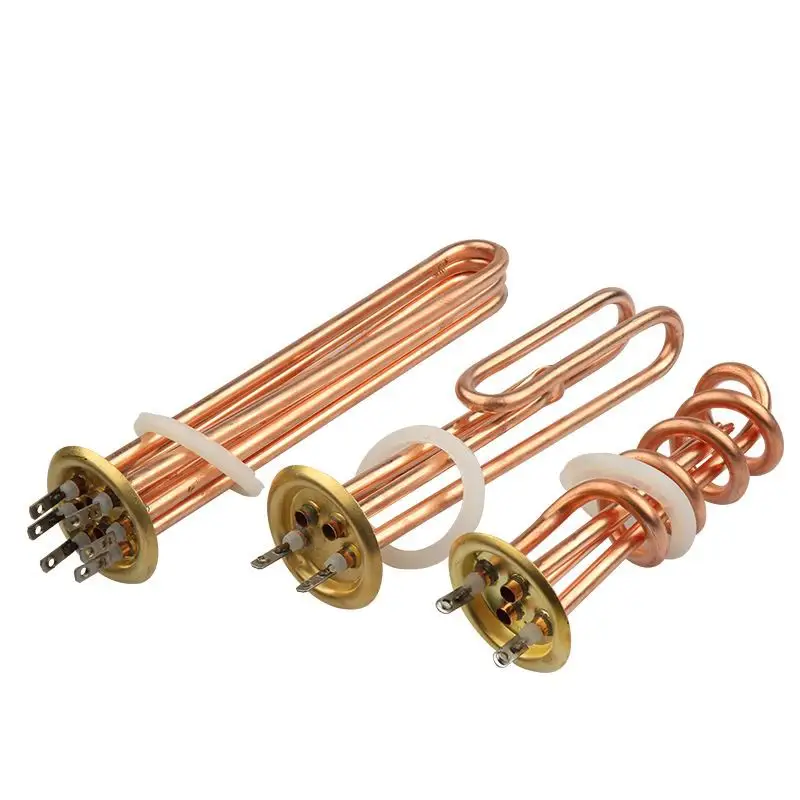

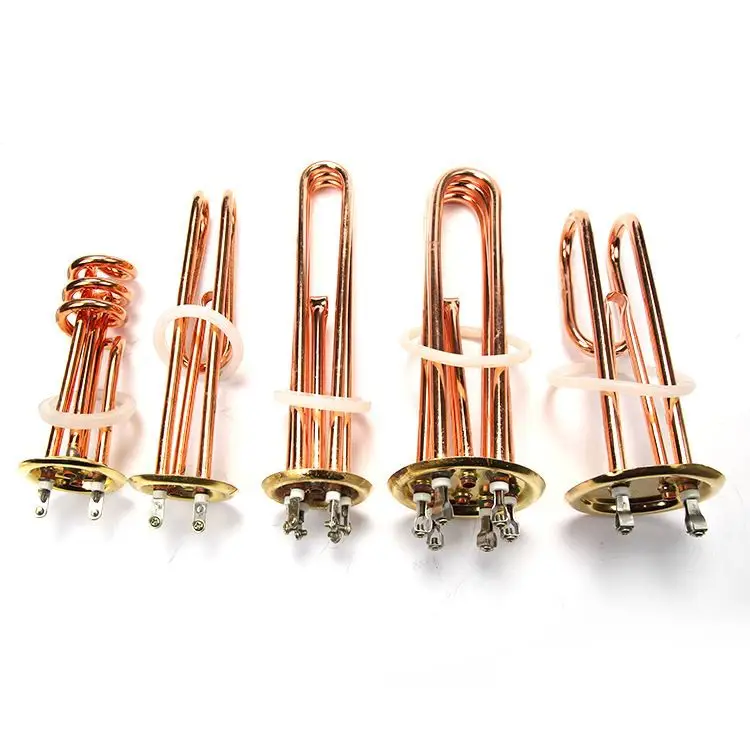

Electric Immersion Heater Flange
Electric Immersion Heater Flange by LICHENGDA. Wetted material and minimum liquid level, configuration details and made-to-drawing quotation for tanks and process vessels.
Product image gallery (6)
PRODUCT ENGINEERING
Wetted material and minimum liquid level
Electric Immersion Heater Flange: Select the sheath against the actual liquid chemistry, concentration and operating temperature. Confirm insertion length and thread or flange geometry from the tank drawing.
Keep the active section submerged during operation. Review liquid-level and independent temperature protection, sediment buildup and access for scale removal before commissioning.
For Electric Immersion Heater Flange, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Electric Immersion Heater Flange lists Material: Purple copper tube/SUS304 Stainless steel; Insulating material: Copper nickel plating , high grade magnesium oxide; Power: 3KW, 6KW, 9KW, 12KW; Withstand voltage: 1800V/0.5mA/min. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Electric Immersion Heater Flange, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Tanks and process vessels. The final suitability of Electric Immersion Heater Flange depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product name | Flange water heater heating tube |
|---|---|
| Material | Purple copper tube/SUS304 Stainless steel |
| Insulating material | Copper nickel plating , high grade magnesium oxide |
| Power | 3KW, 6KW, 9KW, 12KW |
| Insulation value | >1000MQ |
| Withstand voltage | 1800V/0.5mA/min |
ARCHIVED PRODUCT INFORMATION
Description
Product name | Flange water heater heating tube |
Material | Purple copper tube/SUS304 Stainless steel |
Insulating material | Copper nickel plating , high grade magnesium oxide |
Power | 3KW, 6KW, 9KW, 12KW |
Insulation value | >1000MQ |
Withstand voltage | 1800V/0.5mA/min |
Uniform heating, high thermal efficiency, rapid heating, rapid heat conduction, seamless steel pipe, corrosion and rust resistance
Hot Tags: electric immersion heater flange, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, W Type Air Finned Tubular Heater, Stainless Steel Water Immersion Heater, Teflon Water Industrial Immersion Heater, Stainless Steel Electric Coil Tubular Heater, Straight Stainless Steel Finned Heater, Stainless Steel Industrial Sauna Heat Tube
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
