DIRECT LIQUID HEATING

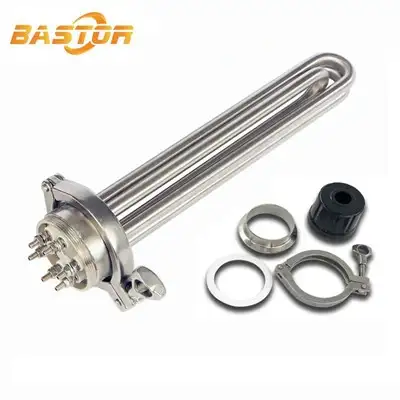

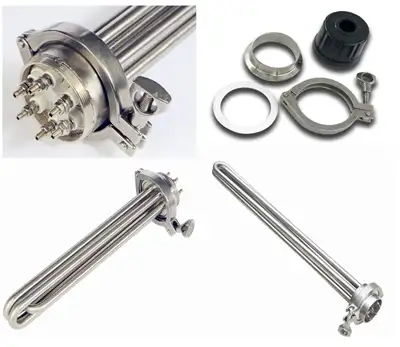

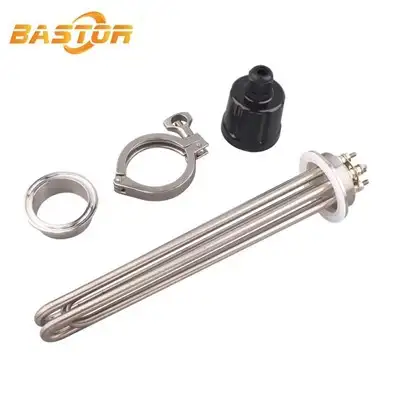

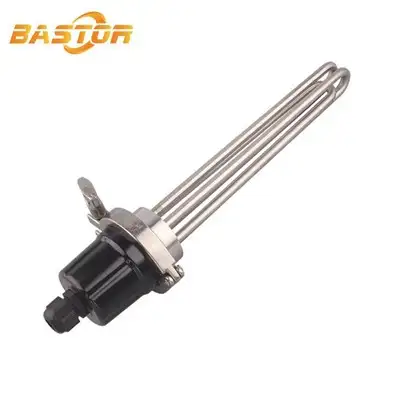

Clamp Immersion Heater
Clamp Immersion Heater by LICHENGDA. Wetted material and minimum liquid level, configuration details and made-to-drawing quotation for tanks and process vessels.
Product image gallery (6)
PRODUCT ENGINEERING
Wetted material and minimum liquid level
Clamp Immersion Heater: Select the sheath against the actual liquid chemistry, concentration and operating temperature. Confirm insertion length and thread or flange geometry from the tank drawing.
Keep the active section submerged during operation. Review liquid-level and independent temperature protection, sediment buildup and access for scale removal before commissioning.
For Clamp Immersion Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Clamp Immersion Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Tanks and process vessels. The final suitability of Clamp Immersion Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| 220V 3KW | 190mm |
|---|---|
| 220V 3.75KW | 210mm |
| 220V 4.5KW | 230mm |
| 220V 6KW | 250mm |
| 220V 9KW | 290mm |
ARCHIVED PRODUCT INFORMATION
Description
The heating pipe adopts stainless steel tube coat, modified magnesium oxide powder, high-performance
nickel-chromium electrothermal alloy wire and other materials. This series of products can be widely
used in heating water, oil, air, nitrate solution, acid solution, alkali solution and low-melting point metals
(aluminum, zinc, tin, Babbitt alloy). It has good heating efficiency, uniform temperature, high temperature
resistance, corrosion resistance and good safety performance.
| Power/Voltage | Tube length |
diameter:64mm diameter:78mm |
| 220V 3KW | 190mm | |
| 380V 3KW | ||
| 220V 3.75KW | 210mm | |
| 380V 3.75KW | ||
| 220V 4.5KW | 230mm | |
| 380V 4.5KW | ||
| 220V 6KW | 250mm | |
| 380V 6KW | ||
| 220V 9KW | 290mm | |
| 380V 9KW |
Waterproof: The heating element is made of high-quality abs material, which is durable and has a long service life.
Multi purposes: It can be used as a heating element for boiling water, or as a heater in the kitchen.
Versatile Wattage Options:Available in 3KW to 12KW, this heating element caters to various water heating needs.
1. Material: SUS304(The element is constructed of shiny 304 stainless steel and will look like new for years.)
2. Tube Diameter: 8mm
3.Thread diameter:51mm
4. Flange: 2 Tri-clamp(64mm)
Uniform heating, high thermal efficiency, rapid heating, rapid heat conduction, seamless steel pipe,
corrosion and rust resistance
immersion heater consists of a heating element, usually made of a metal alloy such as copper or stainless steel, which is insulated from the surrounding liquid by a sheath or tube made of a material that is resistant to corrosion and heat. The heating element is connected to an electrical power supply via a cable, and when the power is switched on, the element heats up and begins to transfer heat to the surrounding liquid.
Immersion heaters are available in a variety of sizes and power ratings, depending on the application requirements. They are typically controlled by a thermostat or a temperature sensor, which monitors the temperature of the liquid and switches the heater on or off to maintain the desired temperature.
Immersion heaters are easy to install and maintain, and they are a popular choice for heating water in households and in industrial processes where a continuous supply of hot water is required. However, they can be expensive to run if used continuously, and care should be taken to ensure that they are properly installed and used in a safe manner to avoid the risk of electric shock or fire.
Uniform heating, high thermal efficiency, rapid heating, rapid heat conduction, seamless steel pipe,
corrosion and rust resistance
