DIRECT LIQUID HEATING

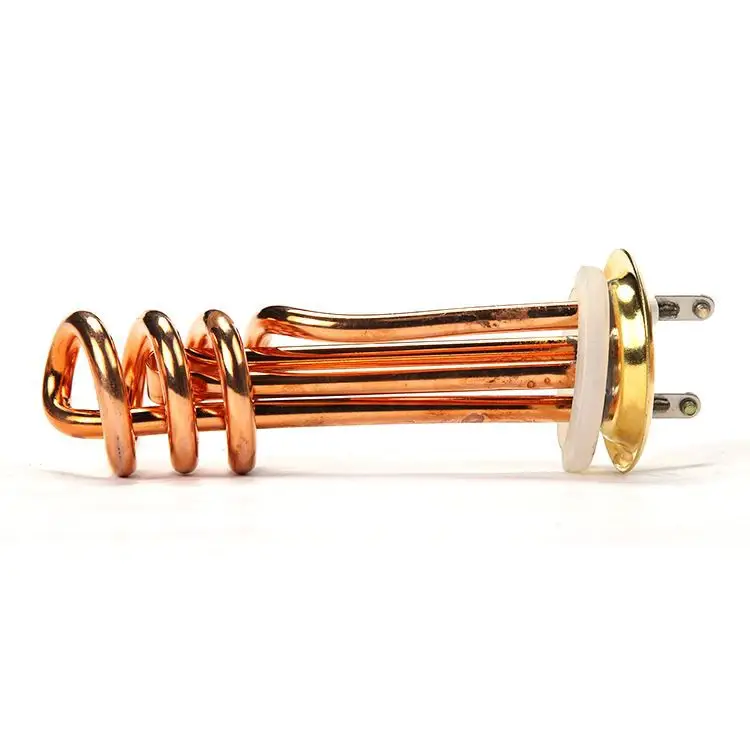

Brass Flange Immersion Heater
Brass Flange Immersion Heater by LICHENGDA. Wetted material and minimum liquid level, configuration details and made-to-drawing quotation for tanks and process vessels.
Product image gallery (6)
PRODUCT ENGINEERING
Wetted material and minimum liquid level
Brass Flange Immersion Heater: Select the sheath against the actual liquid chemistry, concentration and operating temperature. Confirm insertion length and thread or flange geometry from the tank drawing.
Keep the active section submerged during operation. Review liquid-level and independent temperature protection, sediment buildup and access for scale removal before commissioning.
For Brass Flange Immersion Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Brass Flange Immersion Heater lists Voltage resistance: No electric breakdown for 1 minute under 1500V. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Brass Flange Immersion Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Tanks and process vessels. The final suitability of Brass Flange Immersion Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Use condition | Environment temperature: 20~60 degree |
|---|---|
| Leakage current | <0.5MA |
| Insulation | ≥5M |
| Ground resistance | <0.1 |
| Voltage resistance | No electric breakdown for 1 minute under 1500V |
| Temperature | 100-1200 degree |
ARCHIVED PRODUCT INFORMATION
Description
Use condition | Environment temperature: 20~60 degree |
Leakage current | <0.5MA |
Insulation | ≥5M |
Ground resistance | <0.1 |
Voltage resistance | No electric breakdown for 1 minute under 1500V |
Temperature | 100-1200 degree |

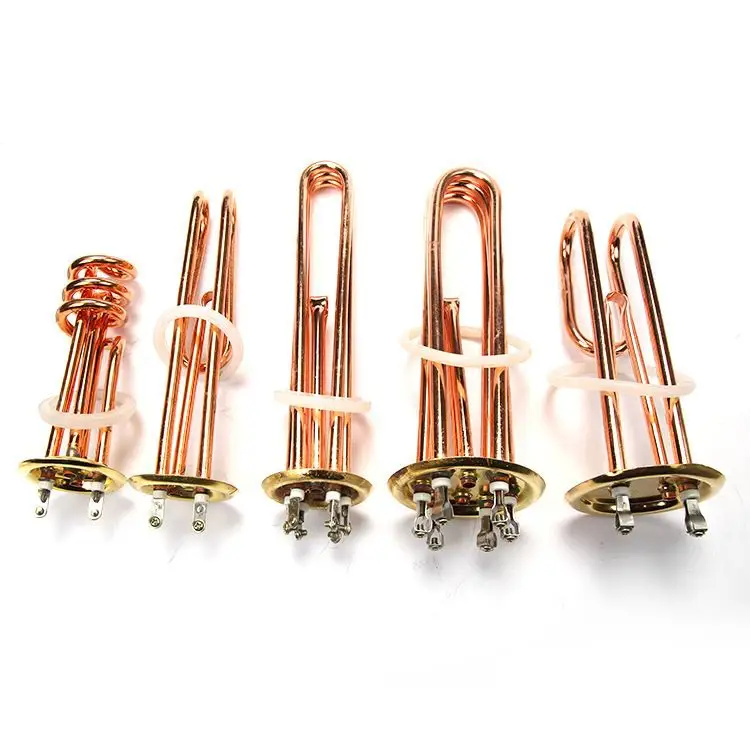

Industrial brass flanges heater immersion heater
Standard tube diameters are 8mm 10mm 12mm 16mm,18mm,20mm etc, but other special sizes are available for replaceable tubular water heater.
Based on the diameter, lengths can be supplied up to 6000mm.
Standard sheath materials are Stainless Steel 201, 304, 316 ,321, but special sheath materials may be available based on diameter and size of the element required.
Hot Tags: brass flange immersion heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Water Tubular Brass Copper Heating Element, Electric Industrial Toaster Oven Heating Element, Water Immersion Heater Element, Straight Stainless Steel Finned Heater, Air Tubular U Shape Heating Element, Electric Water Boiler Heating Element
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
