THIN, LIGHT & UNIFORM
Thin Film Heater
Thin Film Heater by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Thin Film Heater: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Thin Film Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Thin Film Heater lists Power density range: 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2); Voltage: 3.7v-220v; Material: polyimide; Power: 1-6.5w/cm2. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Thin Film Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Thin Film Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Power density range | 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
|---|---|
| Thickness | 0.15-0.18mm |
| thermocouple | K or J type |
| Voltage | 3.7v-220v |
| Wattage | 3w-100kw |
| Material | polyimide |
| Resistance Precision | ±10%ak±0.5Ω |
| Power | 1-6.5w/cm2 |
ARCHIVED PRODUCT INFORMATION

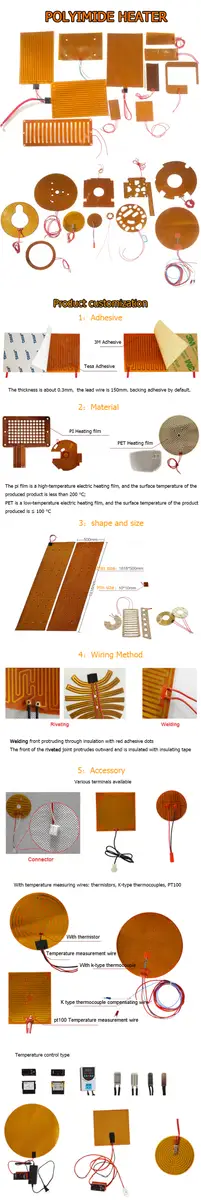

Description
Product Description
| Power density range | 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
| Thickness | 0.15-0.18mm |
| thermocouple | K or J type |
| Voltage | 3.7v-220v |
| Wattage | 3w-100kw |
| Material | polyimide |
| Resistance Precision | ±10%ak±0.5Ω |
| Power | 1-6.5w/cm2 |
1: Light and soft texture, good bending, shape can be customized with equipment, excellent anti-aging performance
2: Surface heating, with uniform heating performance and faster heating rate
3: Non layered and non oxidizing, with a service life 10 times that of traditional electric heating elements.Adopting advanced technology and strict quality inspection, it can be added with adhesive backing
Technical Parameter
1:Heating core: Alloy
2:Thickness: 0.15-0.18
3:Operating temperature:-190 ~ 205℃
4:Voltage: 3.7-220V
5:Power: Designed according to environment
6:Power deviation: ± 5℃
7:Tensile strength of lead:>5N
Company Information
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: thin film heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, Gas Cylinder Silicone Heater, heating element silicone heater pad, electric heating pad silicone rubber heater, electric silicone drum heater bands, Polyimide Flexible Film Kapton Heater, Flexible Silicone Heating Pad Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
