THIN, LIGHT & UNIFORM
Silicone Rubber Heater Jacket
Silicone Rubber Heater Jacket by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Silicone Rubber Heater Jacket: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Silicone Rubber Heater Jacket, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Silicone Rubber Heater Jacket, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Silicone Rubber Heater Jacket depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| 250*1740 | 2kw 3kw |
|---|---|
| 200*860 | 0.8kw |
| 200*860 | 0.8kw |
| 250*1200 (100L) | 1.5kw |
| 250*1520 (150L) | 2kw |
| 880*1780 | 6kw |
ARCHIVED PRODUCT INFORMATION
Description

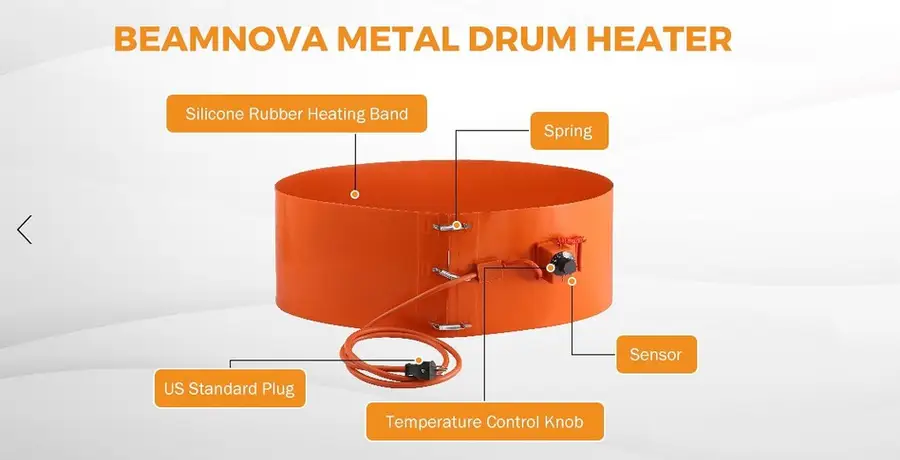

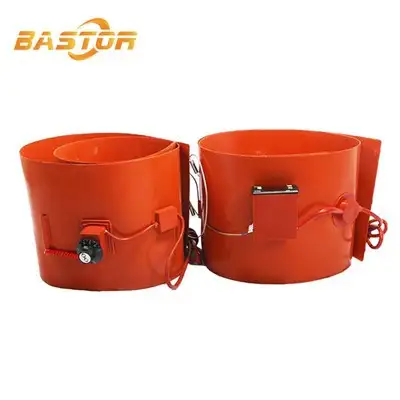

drum heater is a heating device designed to warm the contents of a drum, such as liquids or semi-solid materials. It is typically used in industrial processes where materials need to be heated for processing or storage purposes.

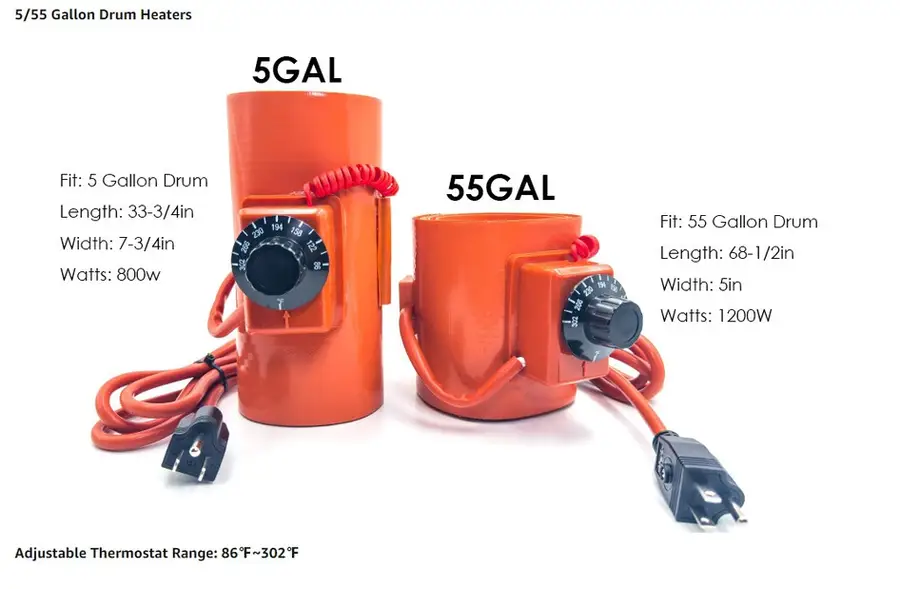

Drum heaters can be designed to fit different sizes of drums, from small 5-gallon drums to large 55-gallon drums, and can be made of a variety of materials, such as silicone, polyimide, or fiberglass. The heating element is typically a resistance wire or a flexible heating element, which is wrapped around the drum or placed inside the drum to provide even heat distribution.
Drum heaters can be used for a variety of applications, such as heating and melting viscous liquids, reducing the viscosity of materials for easier pumping and transferring, or maintaining the temperature of materials during storage or transportation.
Some drum heaters are equipped with thermostats or temperature controllers to ensure that the contents of the drum are heated to the desired temperature and maintained at a consistent temperature. Other drum heaters are designed to be explosion-proof or suitable for use in hazardous environments.
Overall, drum heaters are a cost-effective solution for heating materials in drums, offering fast and efficient heat transfer, easy installation and operation, and a high level of customization to meet specific application requirements.
|

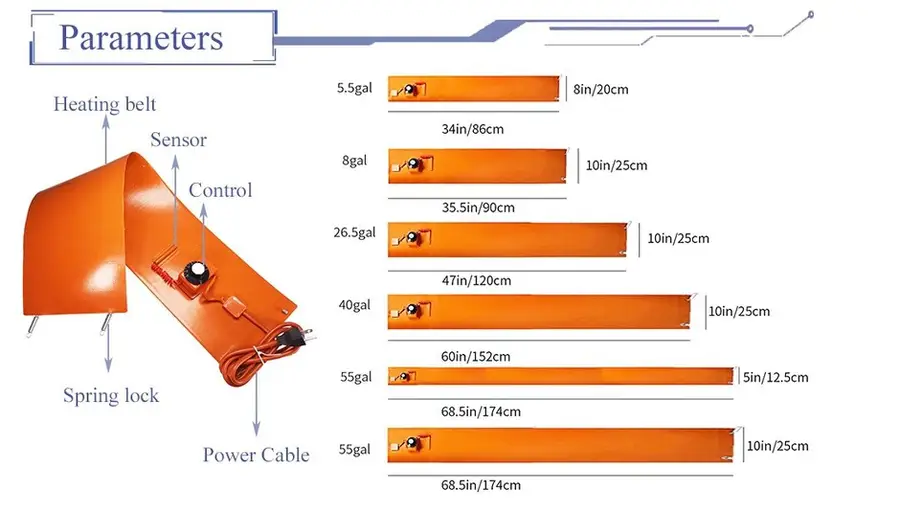

Size (mm) |
Power |
Temperature control |
|
|
In stock |

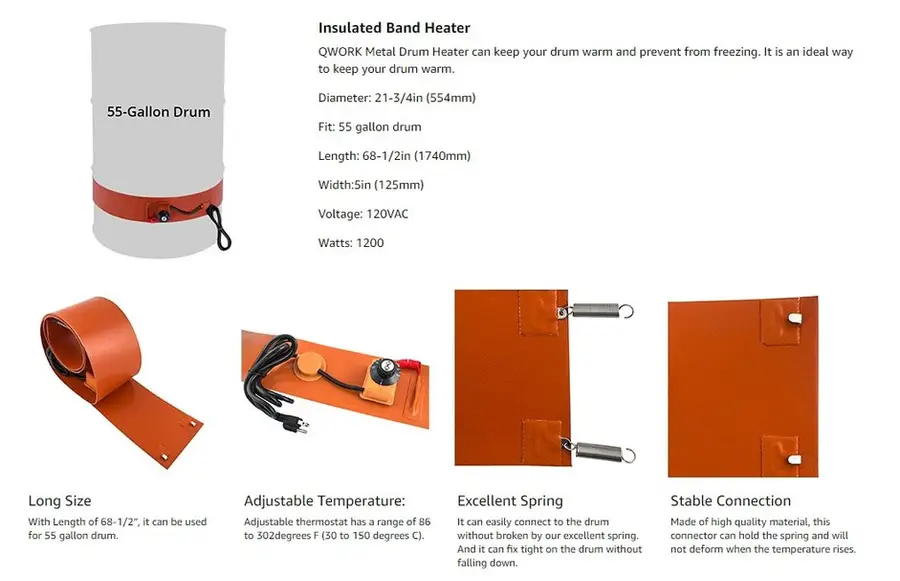

125*1740 |
1kw 2kw |
Knob control: (Error range: ± 5℃) |
|
250*1740 |
2kw 3kw |
||
|
Customized |
250*1840 (200L) |
2kw |
|
|
200*860 |
0.8kw |
||
|
200*860 |
0.8kw |
||
|
250*1200 (100L) |
1.5kw |
||
|
250*1520 (150L) |
2kw |
||
|

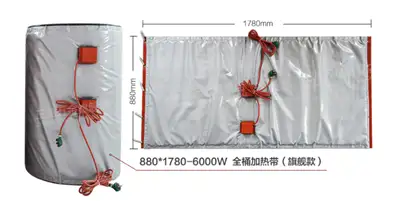

880*1780 |
6kw |
Product Properties
1. Temperature range: 0~250.00°C:
2: Thickness: 1.5mm-1.8mm
3. Electric resistance precision: ±10% (bigger value selected)
4. Power density: 0.10~1.50w/cm²
5. Mechanical pressure: 100.00kg/cm²
6. Minimum bending radius: 3.20mm
Products Advantage
1: Heating, insulation, frost and moisture
2: Strong Thermal conductivity
3: Uniform temperature, safe and durable useing

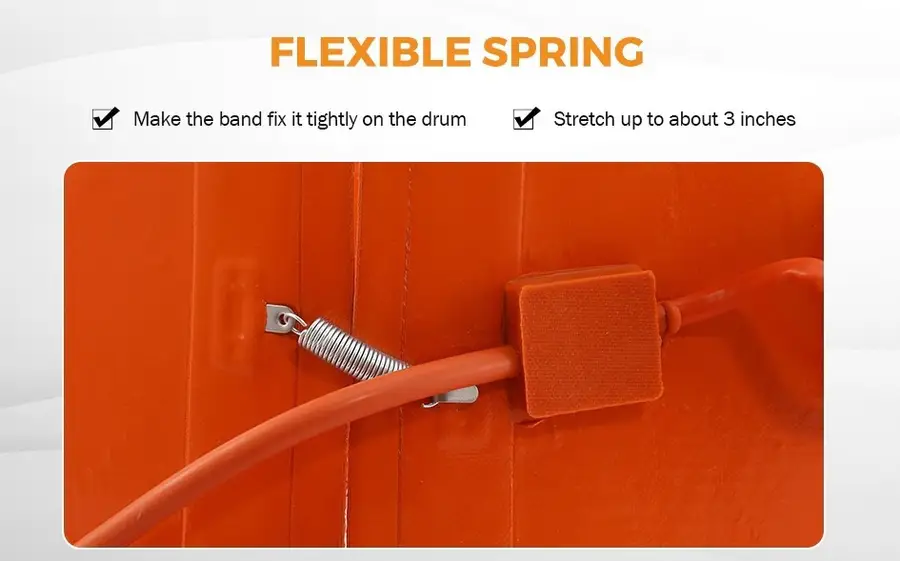

4: Accurate temperature control, good fixing effect of elastic connection
Application

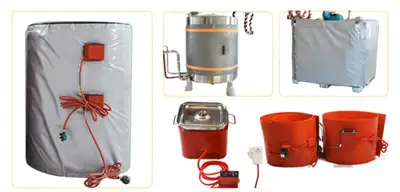

1. Industrial equipment, pipelines, barrels, tanks, etc.
2. Outdoors telecommunication equipment
3. Medical equipment and devices
4. Outdoors electronic devices
5.Thermal imaging of imaging equipment
6. Case protection under cold and moist environment
7. Industrial ovens and thermal processing equipment
8. Ventilator supports
9. Laminating equipment
10. Vessels
