THIN, LIGHT & UNIFORM
Silicone Heater Strip
Silicone Heater Strip by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (9)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Silicone Heater Strip: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Silicone Heater Strip, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Silicone Heater Strip, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Silicone Heater Strip depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Voltage / Wattage | Confirmed for the application |
|---|---|
| Shape / Dimensions | Made to drawing |
| Material / Sensor | Selected for operating conditions |
ARCHIVED PRODUCT INFORMATION
Description
Flexible Rubber Silicone Rubber Belt Pipe Heater are available as wire wound or etched foil. Wire wound elements consist of the resistance wire wound on a fiberglass cord for support and stability. Etched foil heaters are made with a thin metal foil (.001") as the resistance element. Wire wound is recommended and preferred for small to medium size quantities, medium to large sized heaters, and to produce prototypes to prove out the design parameters prior to entering into large volume production runs with etched foil.
|
Material |
Silicone Rubber |
Voltage |
220V and customized |
|
Temperature Range |
0-200 Degree |
Power |
100W-1000W |
|
Length |
1m to 10m |
Lead Length |
300mm |
|
Width |

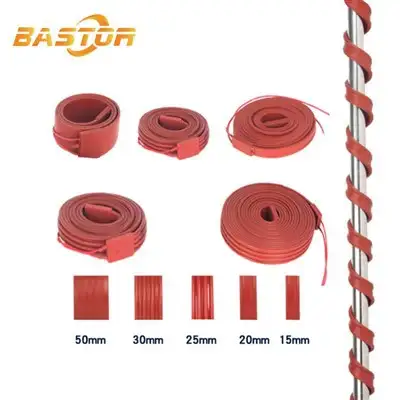

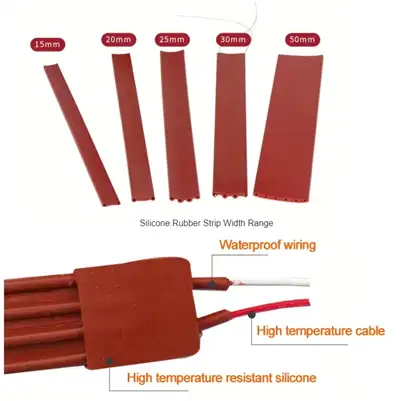

15mm/ 20mm/ 25mm/ 30mm/ 50mm |
| voltage :220v | size |
| size | 25mm*1m 100w |
| 15mm*1m 100w | 25mm*2m 200w |
| 15mm*2m 200w | 25mm*3m 300w |
| 15mm*3m 300w | 25mm*5m 500w |
| 15mm*5m 500w | 25mm*10m 1000w |
| 15mm*10m 1000w | 30mm*1m 100w |
| 20mm*1m 100w | 30mm*2m 200w |
| 20mm*2m 200w | 30mm*3m 300w |
| 20mm*3m 300w | 30mm*5m 500w |
| 20mm*5m 500w | 30mm*10m 1000w |
| 20mm*10m 1000w | 50mm*1m 100w |
Key Features:
1. Flexible & Durable – Made of high-quality silicone rubber, it can conform to various shapes and withstand harsh environments.
2. Uniform Heating – Provides consistent heat distribution across the surface.
3. Temperature Resistance – Typically operates between -60°C to 250°C (-76°F to 482°F).
4. Waterproof & Chemical-Resistant – Ideal for wet or corrosive environments.
5. Energy Efficient – Low thermal inertia ensures quick heating and energy savings.
6. Customizable – Available in different voltages (12V, 24V, 110V, 220V, etc.), wattages, and sizes.
1. Temperature range: -60.0~200℃
2. Electric resistance precision: ±10%( bigger value selected)
3. Power density: 0.10~1.50w/cm²
4. Mechanical pressure: 100.00kg/cm²
5. Minimum bending radius: 3.20mm
High-quality silicone material, fireproof and waterproof, safe and stable, using alloy wire to conduct heat
Good heat resistance, small thermal expansion coefficient, large electrical conductivity, corrosion
resistance, good electrical conductivity
