THIN, LIGHT & UNIFORM
Silicone Food Heating Pad
Silicone Food Heating Pad by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (8)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Silicone Food Heating Pad: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Silicone Food Heating Pad, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Silicone Food Heating Pad lists Power density: 0.10~1.50w/cm²; External insulation material: Silicone glass fiber; Voltage: 3.7-660V. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Silicone Food Heating Pad, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Silicone Food Heating Pad depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Temperature range | -40.00~180.00°C |
|---|---|
| Electric resistance precision | ±10%( bigger value selected) |
| Power density | 0.10~1.50w/cm² |
| Mechanical pressure | 100.00kg/cm² |
| Minimum bending radius | 3.20mm |
| External insulation material | Silicone glass fiber |
| Internal heating element | Ni-Cr alloy |
| Thickness | 1.5mm-3mm(With 3M) |
| Voltage | 3.7-660V |
ARCHIVED PRODUCT INFORMATION
Description
silicone heater is a flexible heating element made of a silicone rubber material that is designed to provide uniform
and efficient heat transfer in a wide range of applications. The heating element consists of a resistance wire, such
as nickel-chromium or copper-nickel, that is embedded in a silicone rubber substrate, which is then bonded to a thin
layer of fiberglass or other insulating material.
[High-Efficiency 150W Fast Heating Warmer] Experience rapid warmth in seconds! This electric pizza bag warmer operates on 120V/150W, quickly raising the surface temperature to approximately 179°F (82°C). It is the powerful heating pad for pizza delivery bags that efficiently maintains the ideal serving temperature for pizzas, meals, and food transport, ensuring customer satisfaction.
[EFFECTIVE & SAFE USE] To prevent burns and damage,for safe operation and to protect your belongings, and NEVER use the food warming plate in a fully sealed bags, ALWAYS ENSURE your insulated delivery bag has adequate ventilation holes and placing a heat-insulating barrier (such as a thick towel or dedicated heat-resistant mat) beneath the pad. NEVER place the heated pad on any surface (like car seats, clothes,plastics, nylon,fabrics or paper) that cannot withstand high heat
[Durable, Multipurpose & Built to Last] Crafted to be waterproof, anti-oil, and chemical-resistant, this food warming pad is both flexible and lightweight. Its robust design ensures long-lasting performance, making it the perfect, portable companion that fits all standard insulated pizza delivery bags for delivery drivers and food enthusiasts alike.So this portable food warmer is compatible with most pizza delivery bags and food transport containers on the market.
[Convenient Wall Plug Design for Easy Use] Enjoy straightforward "plug and play" operation. This electric food warmer comes with a standard US wall plug and a generous 5.9-foot power cord, offering excellent flexibility and ease of use anywhere-whether at home, in a commercial kitchen, or at a pop-up delivery station. No special adapters are needed
About this item
[Enhanced Food Temperature Retention] Keep your pizza and hot food piping hot from the oven to the table with the 100W Food Transport Heated Pad. Its built-in thermostat maintains a consistent 176°F (80°C), ensuring your meals arrive at the perfect temperature-ideal for food delivery services like Eats, GrubHub, and DoorDash.
[Extended Reach with Detachable Cable] Enjoy unmatched convenience with a 78.2-inch (2-meter) detachable power cable, offering maximum reach and flexibility. Its universal design fits most delivery bags, ensuring your food stays hot from pickup to drop-off-perfect for busy delivery drivers and food enthusiasts alike
[User-Friendly Operation] Designed for simplicity and safety, the waterproof ON/OFF switch on the power cable ensures hassle-free operation. Whether you're a delivery driver on the go or a home cook, the intuitive controls make heating your food effortless and secure.

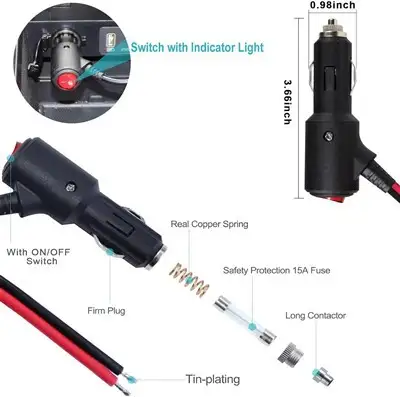

[Versatile Power Options] Stay powered on the go with the 12V car plug , making this portable pizza bag warmer perfect for deliveries, road trips, and outdoor adventures. Whether you're a driver, trucker, or camping enthusiast, your meals will stay hot wherever you are.
[Flexible and Lightweight Design] Experience ultimate portability with a flexible, lightweight design that fits seamlessly into any delivery bag, pizza box, or travel setup. Its versatile positioning ensures even heat distribution without damaging thin plastic bags-perfect for deliveries, office lunches, potlucks, and camping trips.
[Important Safety Note] For your safety, avoid touching the pizza food heated pad while it is i
|
Temperature range |
-40.00~180.00°C |
|
Electric resistance precision |
±10%( bigger value selected) |
|
Power density |
0.10~1.50w/cm² |
|
Mechanical pressure |
100.00kg/cm² |
|
Minimum bending radius |
3.20mm |
|
External insulation material |
Silicone glass fiber |
|
Internal heating element |
Ni-Cr alloy |
|
Thickness |
1.5mm-3mm(With 3M) |
|
Voltage |
3.7-660V |
,
Product Advantage
1.3M gum
2. The shape can be customized
3. Heating in the air, the highest temperature is 180℃
4. USB interface, 3.7V battery, thermocouple wire and thermistor can be added (PT100 NTC 10K 100K 3950%)
Construction: Silicone heaters are made by sandwiching a resistive heating element (usually a nickel-chromium wire or etched foil) between layers of silicone rubber. The silicone rubber serves as both the insulating material and the outer protective layer.
Resistance Heating: When an electric current is applied to the resistive heating element within the silicone heater, it generates heat due to resistance. The resistance of the heating element causes it to heat up, transferring thermal energy to the surrounding silicone rubber.
Uniform Heat Distribution: Silicone rubber has excellent thermal conductivity properties, allowing the heat generated by the heating element to distribute evenly across the surface of the heater. This ensures uniform heating of the target object or surface.
Flexibility: One of the key advantages of silicone heaters is their flexibility. They can be manufactured in various shapes, sizes, and thicknesses to conform to the contours of complex surfaces or objects. This flexibility makes them suitable for applications where traditional rigid heaters are impractical.
Temperature Control: Temperature control of silicone heaters is typically achieved using a thermostat or temperature controller. These devices monitor the temperature of the heater and regulate the power supplied to maintain the desired temperature level.
Overall, silicone heaters are versatile, efficient, and reliable heating solutions suitable for a wide range of industrial and commercial applications.
silicone heater is a type of flexible heating element constructed using silicone rubber as the base material.
These heaters are commonly used in various applications such as medical devices, food processing
equipment, aerospace, automotive, and electronics.
Silicone heaters are known for their flexibility and durability, as well as their ability to withstand high temperatures and harsh environments.
They are typically used in applications where a flat or curved surface needs to be heated, such as in industrial pro
cesses, medical equipment, and aerospace applications.
One of the advantages of silicone heaters is their ability to conform to irregular surfaces, which makes them ideal for use in equipment that has complex geometries or tight spaces. They can also be easily customized to fit specific shapes and sizes, which allows for a high degree of design flexibility.
Silicone heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating.
Overall, silicone heaters are a reliable and cost-effective solution for a wide range of heating applications, offering excellent thermal stability, resistance to moisture and chemicals, and long service life.
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: silicone food heating pad, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 200 liter electric drum heater, custom polyimide kapton flexible heater, flexible ceramic pad heater element, Flexible Silicone Rubber Heater, Industrial Flexible Ceramic Heater Pad, Silicone Rubber Gas Cylinder Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
