THIN, LIGHT & UNIFORM

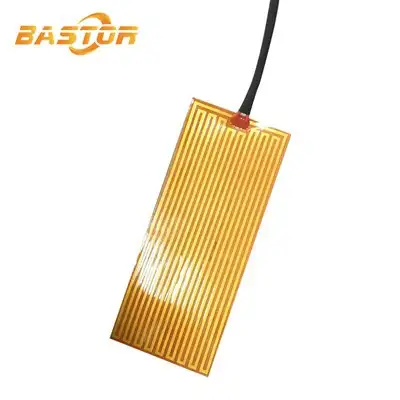

Pi Kapton Film Heater
Pi Kapton Film Heater by LICHENGDA. Thin-film bonding and temperature feedback, configuration details and made-to-drawing quotation for instruments, electronics and precision surface warming.
Product image gallery (5)
PRODUCT ENGINEERING
Thin-film bonding and temperature feedback
Pi Kapton Film Heater: A polyimide heater has low thermal mass and should be supported by a compatible substrate. Supply an outline drawing that identifies cutouts, lead exit and the area available for bonding.
Review adhesive temperature limits and uniform contact pressure. Place the sensor where the controlled surface temperature matters, and keep the circuit away from sharp folds or screw holes.
For Pi Kapton Film Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Pi Kapton Film Heater lists Power density range: 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2); Voltage: 3.7v-220v; Material: polyimide; Power: 1-6.5w/cm2. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Pi Kapton Film Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Instruments, electronics and precision surface warming. The final suitability of Pi Kapton Film Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Power density range | 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
|---|---|
| Thickness | 0.15-0.18mm |
| thermocouple | K or J type |
| Voltage | 3.7v-220v |
| Wattage | 3w-100kw |
| Material | polyimide |
| Resistance Precision | ±10%ak±0.5Ω |
| Power | 1-6.5w/cm2 |
ARCHIVED PRODUCT INFORMATION
Description
220v 1000w electric 3d printer PI foil Flexible polyimide film kapton heating element
Product Description
| Power density range | 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
| Thickness | 0.15-0.18mm |
| thermocouple | K or J type |
| Voltage | 3.7v-220v |
| Wattage | 3w-100kw |
| Material | polyimide |
| Resistance Precision | ±10%ak±0.5Ω |
| Power | 1-6.5w/cm2 |
1: Light and soft texture, good bending, shape can be customized with equipment, excellent anti-aging performance
2: Surface heating, with uniform heating performance and faster heating rate

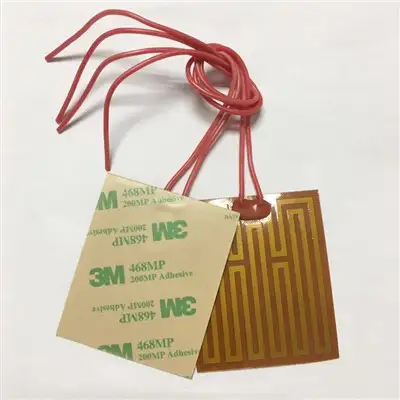

3: Non layered and non oxidizing, with a service life 10 times that of traditional electric heating elements.Adopting advanced technology and strict quality inspection, it can be added with adhesive backing
Technical Parameter
1:Heating core: Alloy
2:Thickness: 0.15-0.18
3:Operating temperature:-190 ~ 205℃
4:Voltage: 3.7-220V
5:Power: Designed according to environment
6:Power deviation: ± 5℃
7:Tensile strength of lead:>5N
