THIN, LIGHT & UNIFORM
Honey Melting Heater
Honey Melting Heater by LICHENGDA. Gentle warming and container contact, configuration details and made-to-drawing quotation for honey buckets and controlled viscosity reduction.
Product image gallery (7)
PRODUCT ENGINEERING
Gentle warming and container contact
Honey Melting Heater: Confirm the container dimensions and the material’s acceptable warming temperature. Use distributed contact and feedback to limit hot spots rather than relying on a high heater setpoint to shorten warm-up.
Review insulation, filled volume and ambient temperature. Position the sensor to measure the container or contents at the controlling location and allow cleaning access around the heater.
For Honey Melting Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Honey Melting Heater lists Material: Chemical Fiber Cotton, Carbon Fiber, Cloth; Power Source: Corded Electric; Voltage: 110V; Product Size: 96*31 cm/ 37.8*12.2 in. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Honey Melting Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration

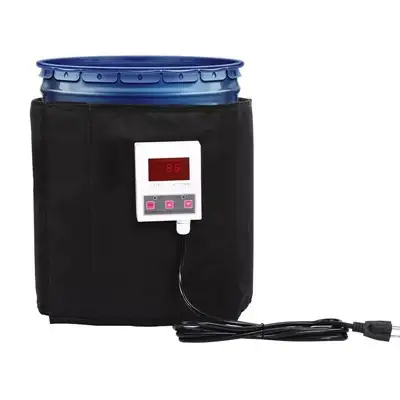

Honey buckets and controlled viscosity reduction. The final suitability of Honey Melting Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Material | Chemical Fiber Cotton, Carbon Fiber, Cloth |
|---|---|
| Temperature Control Range | 20-110℃/ 68-230℉ |
| Power Source | Corded Electric |
| Plug Type | US Standard |
| Voltage | 110V |

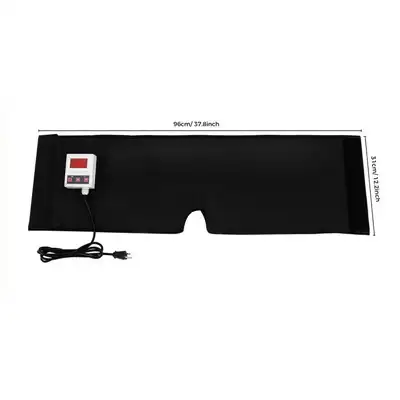

| Product Size | 96*31 cm/ 37.8*12.2 in |
| Power | 400w |
ARCHIVED PRODUCT INFORMATION
Description
| Material | Chemical Fiber Cotton, Carbon Fiber, Cloth |
| Temperature Control Range | 20-110℃/ 68-230℉ |
| Power Source | Corded Electric |
| Plug Type | US Standard |
| Voltage | 110V |
| Product Size | 96*31 cm/ 37.8*12.2 in |
| Power | 400w |

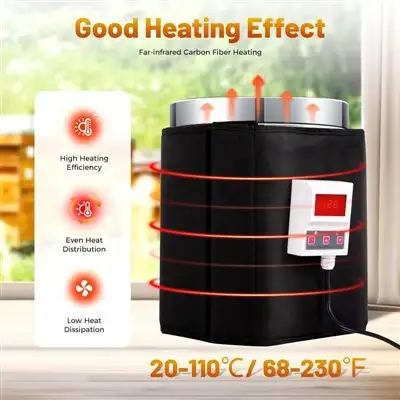

Good Heating Effect: It adopts far-infrared carbon fiber heating wire, which has high heating efficiency and even heat distribution. In addition, the internal and external insulation cotton can effectively lock the heat and reduce heat dissipation.

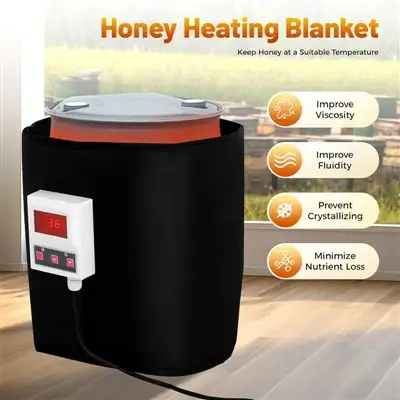

Good Helper: This product can keep honey at a suitable temperature, avoiding it from solidifying or crystallizing, and helps to improve its viscosity and fluidity, minimizing nutrient loss.

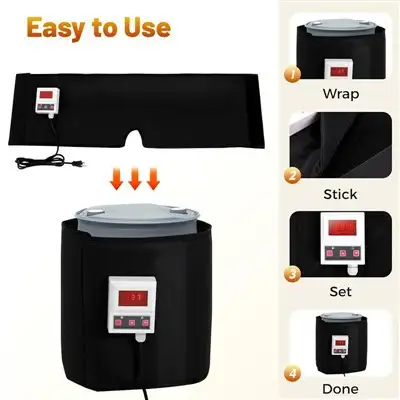

Easy to Use: With its simple structure, all you need to do is put it around the honey bucket, stick the adhesive tape on both sides tightly, and then set a suitable temperature ( range: 68-230°F) through the self-contained temperature controller.
Thoughtful Design: This product has an intelligent memory function, which can permanently memorize the parameters you set after a power failure, making it convenient for you to use it next time.
Adhesive Tape: It allows the heater to be flexible and removable, you can adjust the tape according to the size of the drum.
Soft Surface: It can effectively prevent scratching the walls of the honey bucket.
ndicator Lights: Two power indicator lights are convenient for you to observe the working status of the product.
Digital Display: It shows the heating temperature in real-time for easy observation and helps prevent overheating.
Notes
1. Please note that this product does not include a bottom heating blanket or honey bucket.
2. Please note that the heating part of this product should not be overlapped to avoid damage caused by high temperatures. When the product is not long enough, it can be tied with a thin rope (not included).
3. The process of melting crystallized honey is a long one and requires patience. The speed of melting will vary depending on the degree of crystallization, which is normal.
4. Plug the temperature control cable into the corresponding jack of the temperature control box and plug in the power supply of the thermostat to set the temperature. You need to set the temperature to less than 210.2℉ before melting honey. It is recommended to set the start temperature to 149℉ and the stop temperature to 158℉.
5. The lid of the bucket can be opened and stirred during the heating process to speed up the melting of the honey.
