THIN, LIGHT & UNIFORM
Heater Belt Drum
Heater Belt Drum by LICHENGDA. Container coverage and controlled warming, configuration details and made-to-drawing quotation for drums, buckets and viscosity-control applications.
Product image gallery (7)
PRODUCT ENGINEERING
Container coverage and controlled warming
Heater Belt Drum: Confirm the drum or bucket diameter, material and filled volume. Coverage and insulation should be selected around the required heat-up time and the material’s permitted storage temperature.
Locate temperature feedback to detect hot spots at the container wall. Review minimum fill level, restraint method and safe removal before choosing a thermostat or operating setpoint.
For Heater Belt Drum, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For Heater Belt Drum, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Drums, buckets and viscosity-control applications. The final suitability of Heater Belt Drum depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| 250*1740 | 2kw 3kw |
|---|---|
| 200*860 | 0.8kw |
| 200*860 | 0.8kw |
| 250*1200 (100L) | 1.5kw |
| 250*1520 (150L) | 2kw |
| 880*1780 | 6kw |
ARCHIVED PRODUCT INFORMATION
Description
Oil Drum Heating

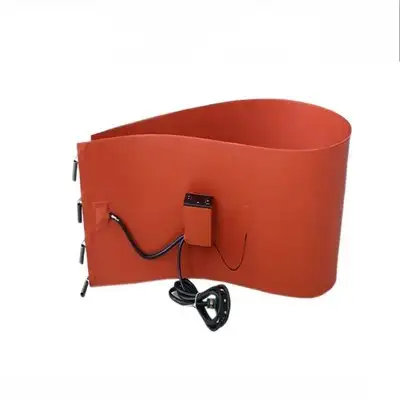

Drum Heating Belt is extremely thin, light and flexible. And the heater can transfer heat to any required place. In processing, it can improve heat transfer, accelerate temperature rising and reduce power need. Glass fiber-reinforced silicon rubber can ensure the heater to be stable in dimension, without losing flexibility.
|
Size (mm) |
Power |
Temperature control |
|
|
In stock |
125*1740 |
1kw 2kw |

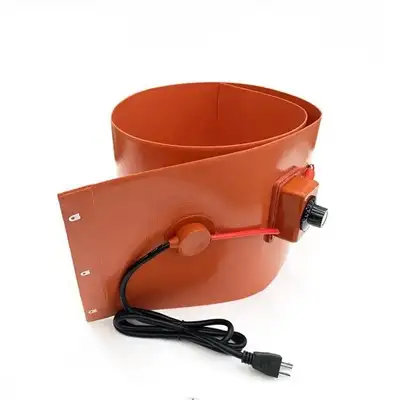

Knob control: (Error range: ± 5℃) |
|
250*1740 |
2kw 3kw |
||
|
Customized |
250*1840 (200L) |
2kw |
|
|
200*860 |
0.8kw |
||
|
200*860 |
0.8kw |
||
|
250*1200 (100L) |
1.5kw |
||
|
250*1520 (150L) |
2kw |
||
|
880*1780 |
6kw |
Product Properties
1. Temperature range: 0~250.00°C:
2: Thickness: 1.5mm-1.8mm
3. Electric resistance precision: ±10% (bigger value selected)
4. Power density: 0.10~1.50w/cm²
5. Mechanical pressure: 100.00kg/cm²
6. Minimum bending radius: 3.20mm
Products Advantage
1: Heating, insulation, frost and moisture
2: Strong Thermal conductivity
3: Uniform temperature, safe and durable useing
4: Accurate temperature control, good fixing effect of elastic connection
Application
1. Industrial equipment, pipelines, barrels, tanks, etc.
2. Outdoors telecommunication equipment
3. Medical equipment and devices
4. Outdoors electronic devices
5.Thermal imaging of imaging equipment
6. Case protection under cold and moist environment
7. Industrial ovens and thermal processing equipment
8. Ventilator supports
9. Laminating equipment
10. Vessels
Hot Tags: heater belt drum, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 12v pad flexible silicone heater heating, 200l Oil Drum Heater Blanket, 12v flexible pi kapton foil heater, Flexible Kapton Film Polyimide Heater, 5v kapton polyimide film heater, Gas Cylinder Silicone Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
