THIN, LIGHT & UNIFORM
Flexible Polymide Heater Film
Flexible Polymide Heater Film by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Flexible Polymide Heater Film: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.

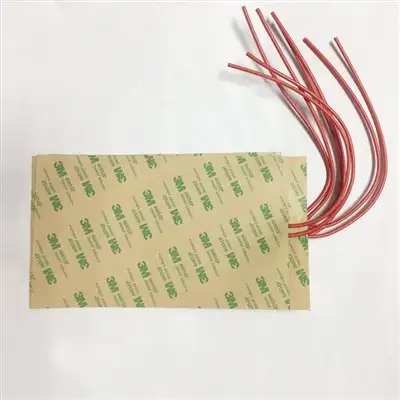

Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Flexible Polymide Heater Film, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Flexible Polymide Heater Film lists Power density range: 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2); Voltage: 3.7v-220v; Material: polyimide; Power: 1-6.5w/cm2. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Flexible Polymide Heater Film, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Flexible Polymide Heater Film depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Power density range | 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
|---|---|
| Thickness | 0.15-0.18mm |
| thermocouple | K or J type |
| Voltage | 3.7v-220v |
| Wattage | 3w-100kw |
| Material | polyimide |
| Resistance Precision | ±10%ak±0.5Ω |
| Power | 1-6.5w/cm2 |
ARCHIVED PRODUCT INFORMATION
Description

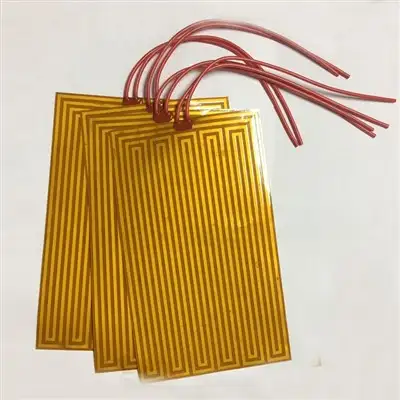

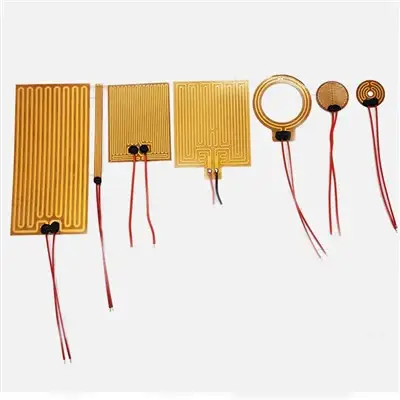

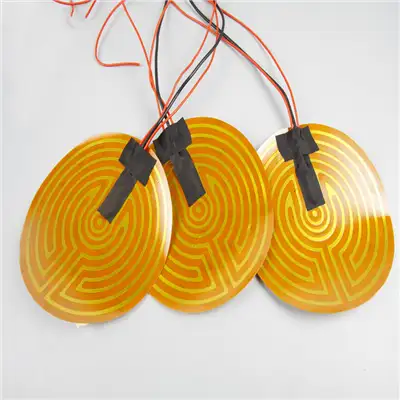

Polyimide heater (Kapton heater) is available in a variety of shapes, sizes, and wattages, it is a clear amber colored polyimide film. The process for making flexible heating film is similar to that of Etched Foil Silicone heaters.It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -60 degree celsius to 250 degree Celsius.
|
Power density range |
0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
|
Thickness |
0.15-0.18mm |
|
thermocouple |
K or J type |
|
Voltage |
3.7v-220v |
|
Wattage |
3w-100kw |
|
Material |
polyimide |
|
Resistance Precision |
±10%ak±0.5Ω |
|
Power |
1-6.5w/cm2 |
Technical Parameter
1:Heating core: Alloy
2:Thickness: 0.15-0.18
3:Operating temperature:-190 ~ 205℃
4:Voltage: 3.7-220V
5:Power: Designed according to environment
6:Power deviation: ± 5℃
7:Tensile strength of lead:>5N
Polyimide heaters are known for their flexibility, durability, and resistance to high temperatures and harsh environments. They are typically used in applications where a thin and flexible heating element is required, such as in medical equipment, aerospace applications, and electronics.
One of the advantages of polyimide heaters is their ability to conform to irregular surfaces, which makes them ideal for use in equipment that has complex geometries or tight spaces. They can also be easily customized to fit specific shapes and sizes, which allows for a high degree of design flexibility.
Polyimide heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating.
Overall, polyimide heaters are a reliable and cost-effective solution for a wide range of heating applications, offering excellent thermal stability, resistance to moisture and chemicals, and long service life.
