THIN, LIGHT & UNIFORM
Dual Heating Plate Tire Repair Vulcanizer
Dual Heating Plate Tire Repair Vulcanizer by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (6)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Dual Heating Plate Tire Repair Vulcanizer: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Dual Heating Plate Tire Repair Vulcanizer, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Dual Heating Plate Tire Repair Vulcanizer lists Power density: 0.10~1.50w/cm²; External insulation material: Silicone glass fiber; Voltage: 220v or customized. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Dual Heating Plate Tire Repair Vulcanizer, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Dual Heating Plate Tire Repair Vulcanizer depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| max Temperature | 180.00°C |
|---|---|
| Electric resistance precision | ±10%( bigger value selected) |
| Power density | 0.10~1.50w/cm² |
| Mechanical pressure | 100.00kg/cm² |
| Minimum bending radius | 3.20mm |
| External insulation material | Silicone glass fiber |
| Internal heating element | Ni-Cr alloy |

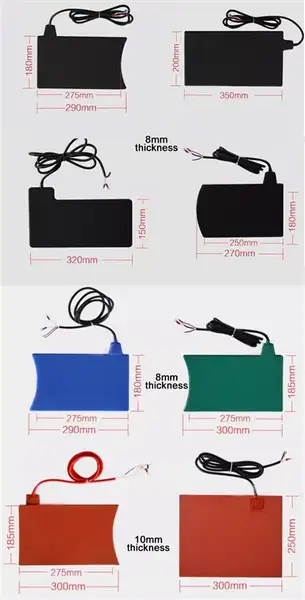

| Thickness | 8mm-13mm |
| Voltage | 220v or customized |
ARCHIVED PRODUCT INFORMATION
Description
| max Temperature | 180.00°C |
| Electric resistance precision | ±10%( bigger value selected) |
| Power density | 0.10~1.50w/cm² |
| Mechanical pressure | 100.00kg/cm² |
| Minimum bending radius | 3.20mm |
| External insulation material | Silicone glass fiber |
| Internal heating element | Ni-Cr alloy |
| Thickness | 8mm-13mm |
| Voltage | 220v or customized |

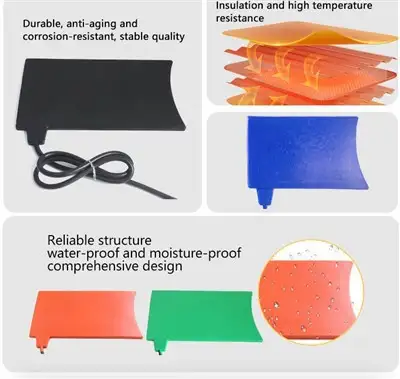

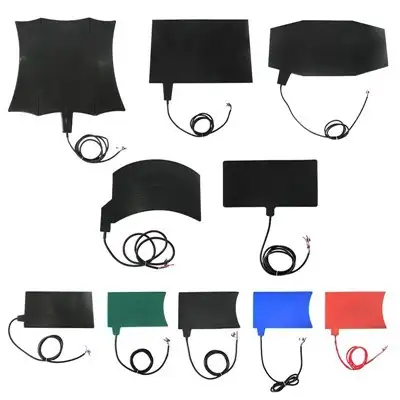

Tire curing plates are available in both one-piece, pure silicone and sponge materials. The one-piece, pure silicone type is more resistant to aging, wrinkling, and cracking, making it more durable. The sponge type is economical and meets different needs. With the exception of the V-shaped passenger car tire curing plate (red), which is a sponge type, all other tire heating plates are one-piece, pure silicone.
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Feedback
Hot Tags: dual heating plate tire repair vulcanizer, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 12v flexible silicone pad heater, 200 liter electric drum heater manufacturer, 220v silicon heater element, flexible ceramic pad heater element, Flexible Heater, Gas Cylinder Silicone Heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
