THIN, LIGHT & UNIFORM
Dew Heater
Dew Heater by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Dew Heater: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Dew Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Dew Heater lists wire length: 1.5m; heating length: 27cm (Lens outer diameter <80mm) 31cm (Lens outer diameter80-110mm; Power supply: USB powered. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Dew Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Dew Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| wire length | 1.5m |
|---|---|
| heating length | 27cm (Lens outer diameter <80mm) 31cm (Lens outer diameter80-110mm |
| Current | 2A |
| Heating settings | Low temperature, medium and high temperature |
| Power supply | USB powered |
| Type | LENS DEW HEATER STRIP |
| vlotage | 5v |
| width | 53mm |
ARCHIVED PRODUCT INFORMATION
Description
| wire length | 1.5m |
| heating length |
27cm (Lens outer diameter <80mm) 31cm (Lens outer diameter80-110mm |
| Current | 2A |
| Heating settings | Low temperature, medium and high temperature |
|
Power supply |
USB powered |
| Type | LENS DEW HEATER STRIP |
| vlotage | 5v |
| width | 53mm |

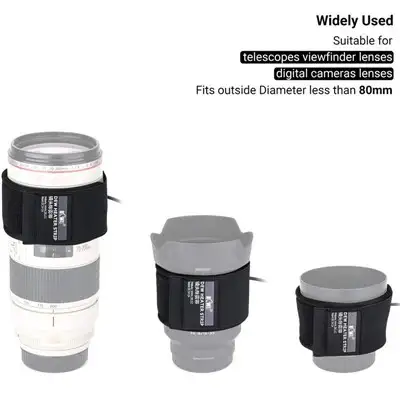

suitable for telescopes, viewfinder lenses, digital cameras of most sizes (Diameter less than 80mm). Thermos, drink cup, baby bottle or any good idea that requires insulation.

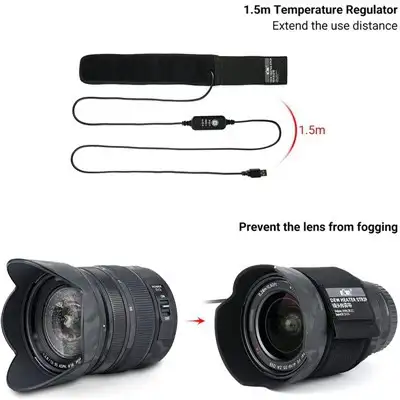

[Adjustable Temperature]: The product is equipped with a 1.5m temperature regulator with low, medium and high modes. Low temperature wire design can withstand temperatures as low as -40°C, and will not freeze and break in a cold environment for a long time.

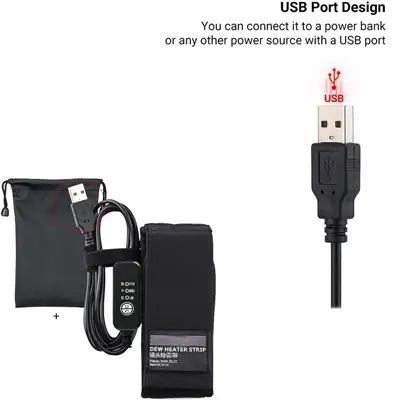

[USB power supply]: USB port design, Suitable for long-term outdoor heating of the lens. You can connect it to a power bank or any other power source with a USB port.
[Fast heat transfer and Good thermal insulation]: Our lens heater prevent the lens from fogging by heating the camera lens or telescope, so as not to affect the effect of the equipment. Made of high-quality materials with fast heat transfer and good thermal insulation.
[Quick installation and Removal]: Can be adjusted according to the size of the lens, suitable for lenses with an outer diameter of less than 80mm(3.15 inch).
1. Low-temperature wire design: Withstands temperatures as low as -40°C, maintaining flexibility even after prolonged use in extremely cold environments without freezing.
2. Composite fiber heating wire + neoprene adhesive: Provides rapid heating and enhanced safety for worry-free use.
3. Velcro fastening: The Velcro fastening allows for a snug fit to your lens and easy adjustment to the desired length.
4. Widened 53mm camera lens defogging belt design: Offers wider coverage and more even heating.
5. Integrated design with external USB power supply: Convenient storage to prevent loss and ideal for outdoor use.
Specifically:
Core heating element: Inside the dew heater strip, there is usually a flexible resistance heating wire (such as nichrome wire) or a carbon fiber heating film. When connected to a power source, an electric current passes through these resistive elements, converting electrical energy into heat.
Heat transfer: The generated heat is evenly transferred to the lens barrel through the fabric layer of the dew heater strip, slightly raising the overall temperature of the lens.
Anti-fog principle: The fundamental cause of lens fogging is that the temperature of the lens is lower than the "dew point temperature" of the environment, causing water vapor in the air to condense into small water droplets on the cold lens. By heating, the dew heater strip keeps the lens temperature consistently above the dew point, effectively preventing water vapor condensation and keeping the lens clear.
