Dc To Dc Solid State Relay
Dc To Dc Solid State Relay by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (5)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Dc To Dc Solid State Relay: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Dc To Dc Solid State Relay, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Dc To Dc Solid State Relay lists Load Voltage: 24-380VDC(Basic model); Control Voltage: 3-32VDC; On Voltage: ≤1.5V. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Dc To Dc Solid State Relay, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Dc To Dc Solid State Relay depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

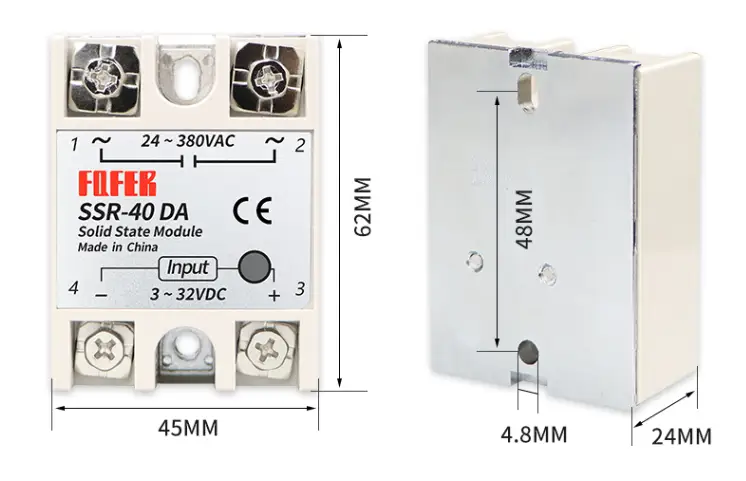

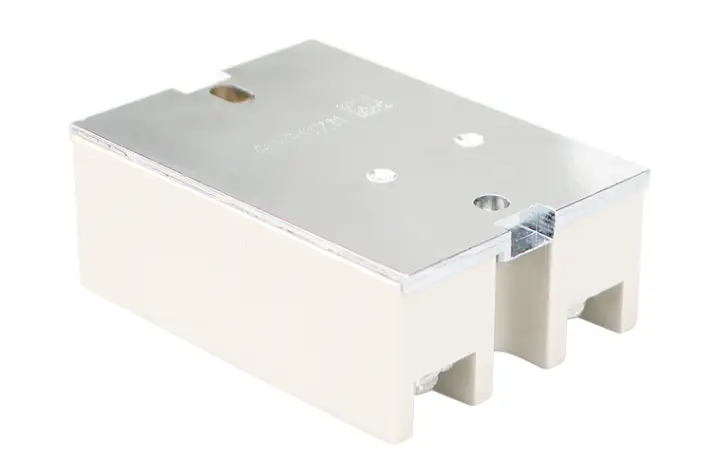

| Outine Dimension(mm) | 62.0Lx44.0Wx23.0H |
|---|---|
| Load Current | 10A,25A,40,50A,60A,75A,80A,90A |
| Load Voltage | 24-380VDC(Basic model) |
| Control Voltage | 3-32VDC |
| Control Current | DC3-25mA |
| On Voltage | ≤1.5V |
| Off leakage Current | ≤2mA |
| On-off time | ≤10mS |
| Dielectric Strength | 2500VAC |
| Insulation Resistance | 1000MΩ/500VDC |
ARCHIVED PRODUCT INFORMATION
Description
SSR relay" typically refers to a Solid State Relay. It is an electronic switching device used to control the on/off state of a circuit. Unlike traditional mechanical relays, an SSR has no mechanical contacts and instead uses semiconductor components (such as transistors, thyristors, etc.) to achieve switching functionality.
| Outine Dimension(mm) | 62.0Lx44.0Wx23.0H | |||
| Load Current | 10A,25A,40,50A,60A,75A,80A,90A | |||
| Load Voltage | 24-380VDC(Basic model) | |||
| Control Voltage | 3-32VDC | |||
| Control Current | DC3-25mA | |||
| On Voltage | ≤1.5V | |||
| Off leakage Current | ≤2mA | |||
| On-off time | ≤10mS | |||
| Dielectric Strength | 2500VAC | |||
| Insulation Resistance | 1000MΩ/500VDC | |||
| Ambient Temperature | -30~+75°C | |||
| Mounting Mthods | Bolt Fixing | |||
| Working Station Indicator | LED | |||
| Weight | 132g | |||
Key Features of SSR:
No Mechanical Contacts: Since there are no mechanical parts, SSRs have a longer lifespan and do not produce arcing or mechanical wear.
Fast Response: SSRs switch faster than mechanical relays, making them suitable for high-frequency operations.
Low Noise: They operate almost silently.
Vibration Resistance: With no mechanical components, SSRs perform more reliably in vibrating environments.
Diverse Control Signals: SSRs can be controlled by DC or AC signals, with common control voltages being 3V, 5V, 12V, 24V, etc.
Classification of SSR:
By Load Type:
AC SSR: Used for controlling AC loads.
DC SSR: Used for controlling DC loads.
By Control Method:
Zero-Crossing SSR: Switches at the zero-crossing point of the AC voltage to reduce load impact.
Random-On SSR: Switches immediately upon receiving the control signal.
Pros and Cons of SSR:
Advantages:
Long lifespan and high reliability.
Fast switching speed, suitable for high-frequency operations.
Silent operation and vibration resistance.
Applications of SSR:
Industrial Automation: Used to control motors, heaters, lights, and other equipment.
Temperature Control: Used in thermostats or heating systems.
Power Electronics: Used for switching control in AC or DC power supplies.
Household Appliances: Used in devices like washing machines and air conditioners for circuit control.
Product advantages
1: The core components of solid state relay have quick switching speed and high withstand voltage
2: The high-strength screw is made of stainless steel, which is not easy to break and slip.
The column is made of red copper
3: Strong shell, made of excellent high temperature flame retardant materials, shiny and durable
4: The zinc low plate has obvious heat dissipation effect, and it is not easy to heat up after long use
