THIN, LIGHT & UNIFORM
Ceramic Pad FCP Heater
Ceramic Pad FCP Heater by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (5)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Ceramic Pad FCP Heater: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Ceramic Pad FCP Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Ceramic Pad FCP Heater lists Material: Alumina ceramic and ni-cr resistance wire; Voltage: 60V, 80V. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Ceramic Pad FCP Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Ceramic Pad FCP Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Product Name | Flexible Ceramic Pad Heater |
|---|---|
| Material | Alumina ceramic and ni-cr resistance wire |
| Insulator Color | Pink or white |
| Standard | CP6, CP8, CP10 and so on |
| Voltage | 60V, 80V |
| Operating Temperature | Max 1050℃ |
| Operating Life-UP | 20000 hrs |
| Warranty | One year/12 monthes |
ARCHIVED PRODUCT INFORMATION
Description

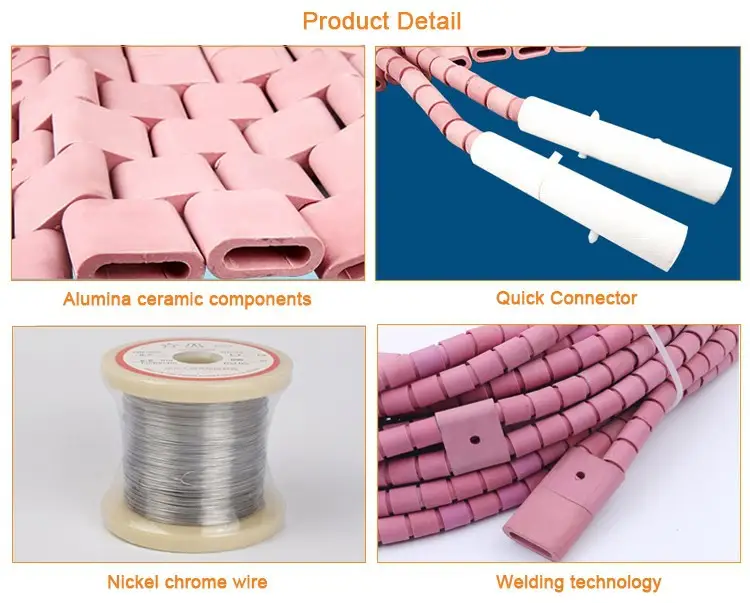

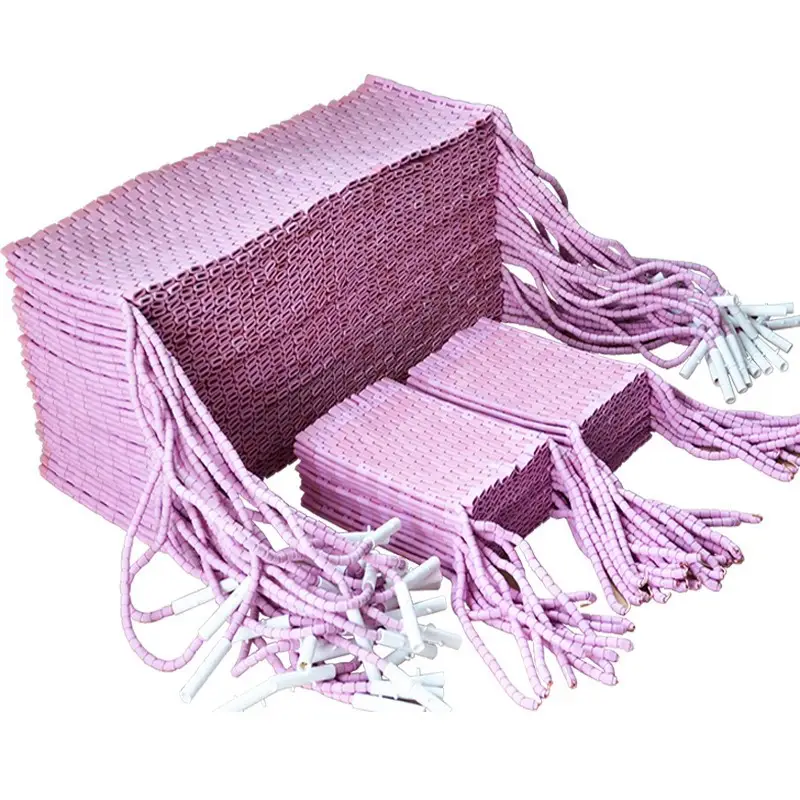

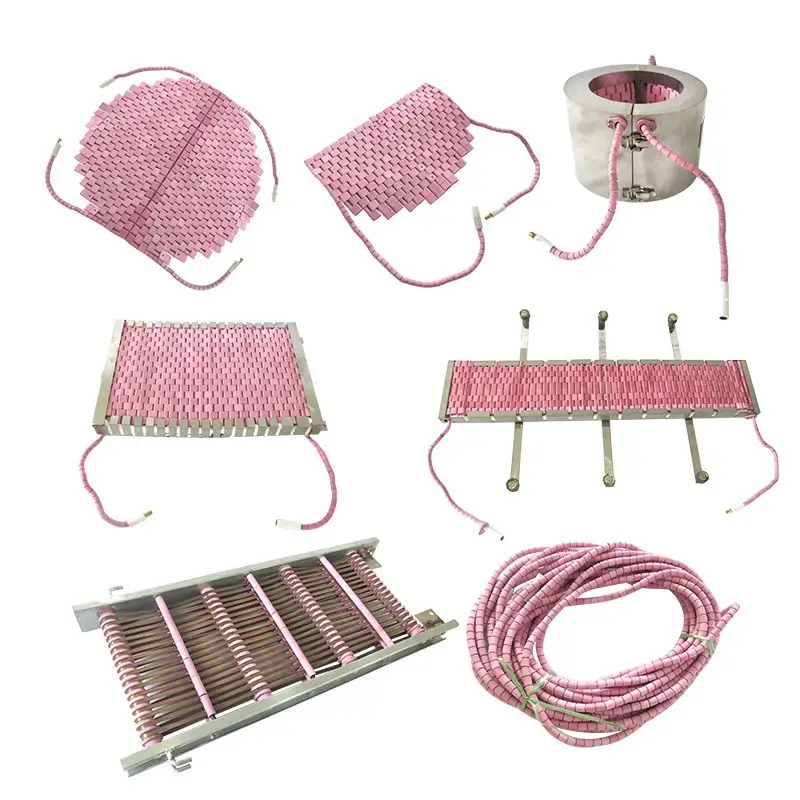

Ceramic heating pads are mainly used for Weld Preheating and Post Weld Heat Treating. Ceramic heating pads are constructed of high grade Nickel-Chrome 80/20 19-stranded resistance wire which run through durable aluminum oxide ceramics beads. These resistance heating elements accurately raise the workpiece temperature to the proper temperature before, during, and after welding. These semi-flexible ceramic heating pads, with their interlocking beads and high temperature wire, allow for a fit conforming to the shape of the workpiece, and are capable of temperatures up to 1050°C. This of type ceramic heaters can be customized with voltages from 22V to 255V.
|
Product Name |
Flexible Ceramic Pad Heater |
|
Material |
Alumina ceramic and ni-cr resistance wire |
|
Insulator Color |
Pink or white |
|
Standard |
CP6, CP8, CP10 and so on |
|
Voltage |
60V, 80V |
|
Operating Temperature |
Max 1050℃ |
|
Operating Life-UP |
20000 hrs |
|
Warranty |
One year/12 monthes |
Structure Analysis

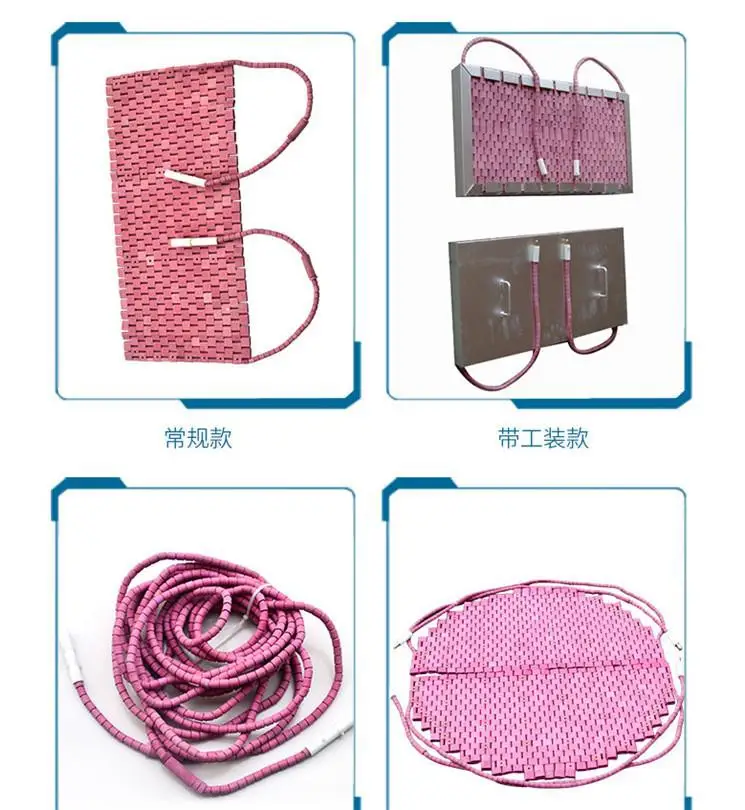

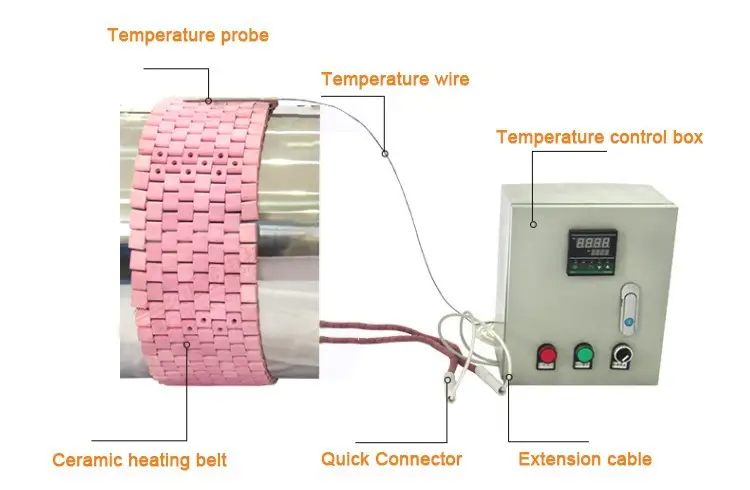

Pink woven main body: Woven by high temperature resistant ceramic blocks and nichrome heating wires, flexible and bendable to fit curved surfaces of pipelines and workpieces. The ceramic provides insulation and heat resistance, withstanding temperatures up to 1050 degree.

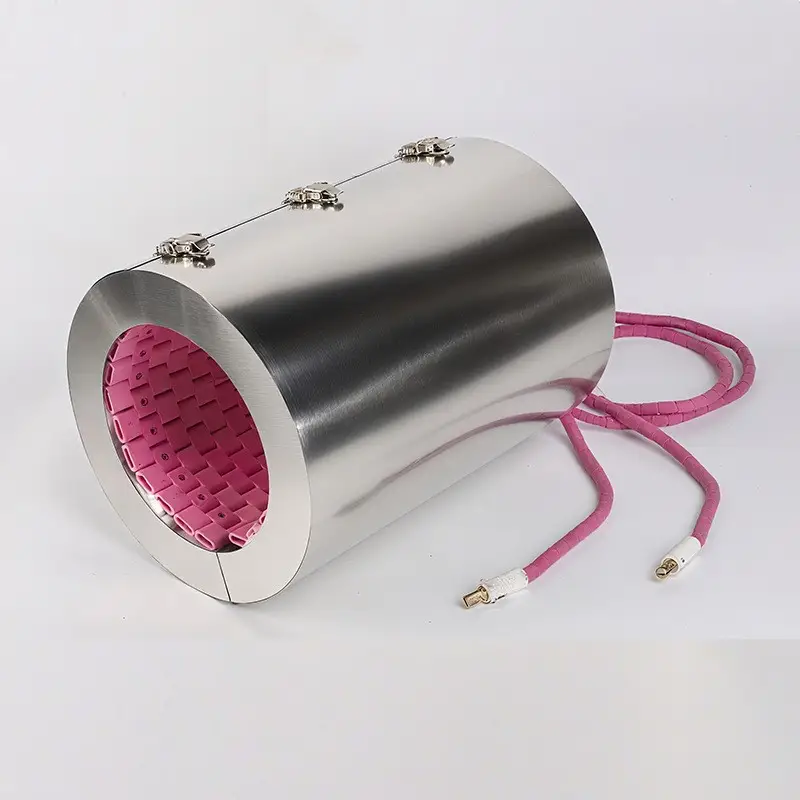

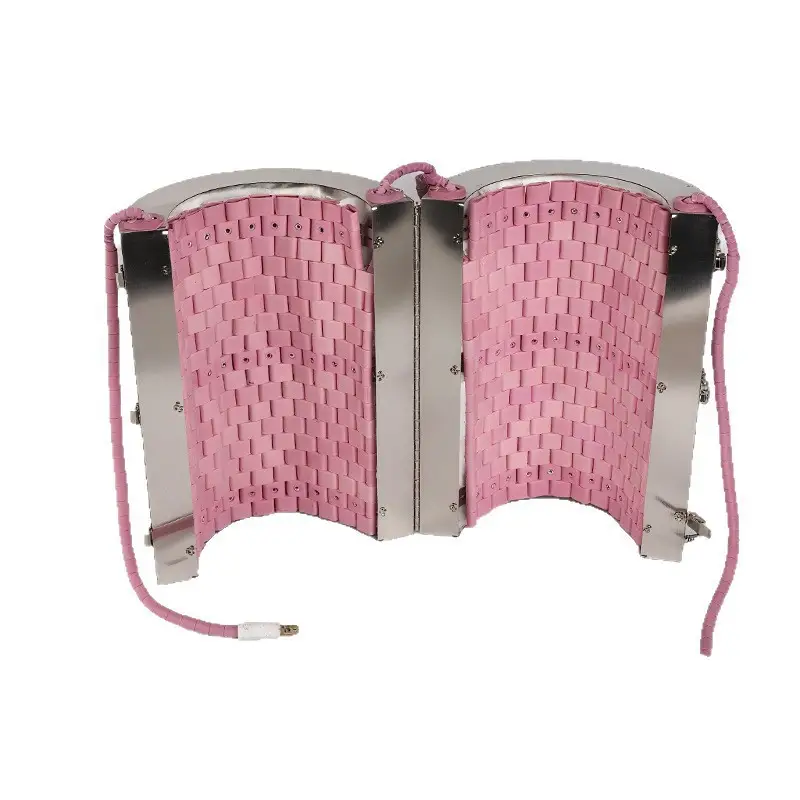

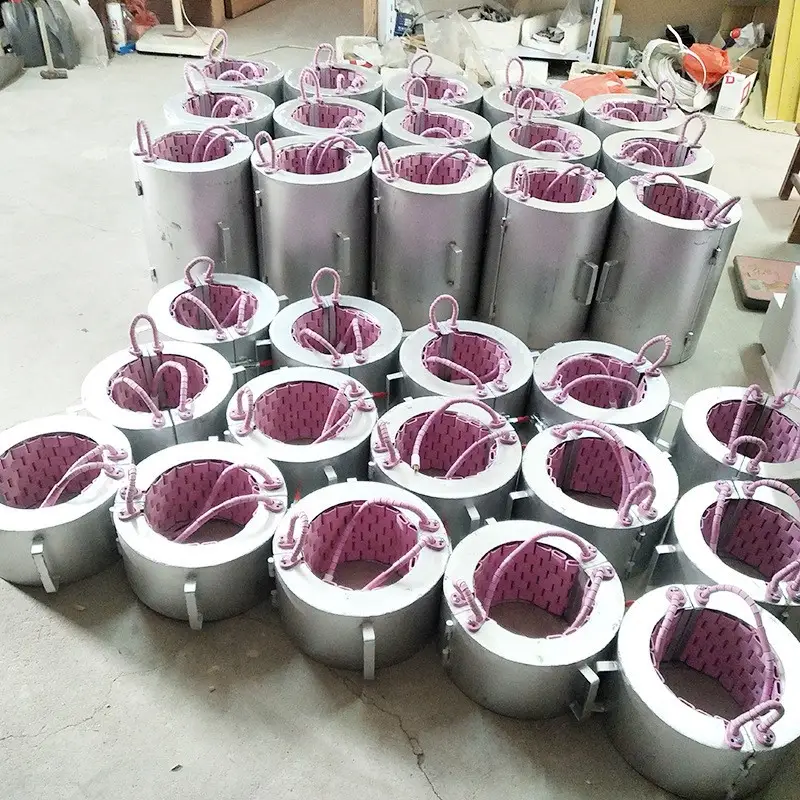

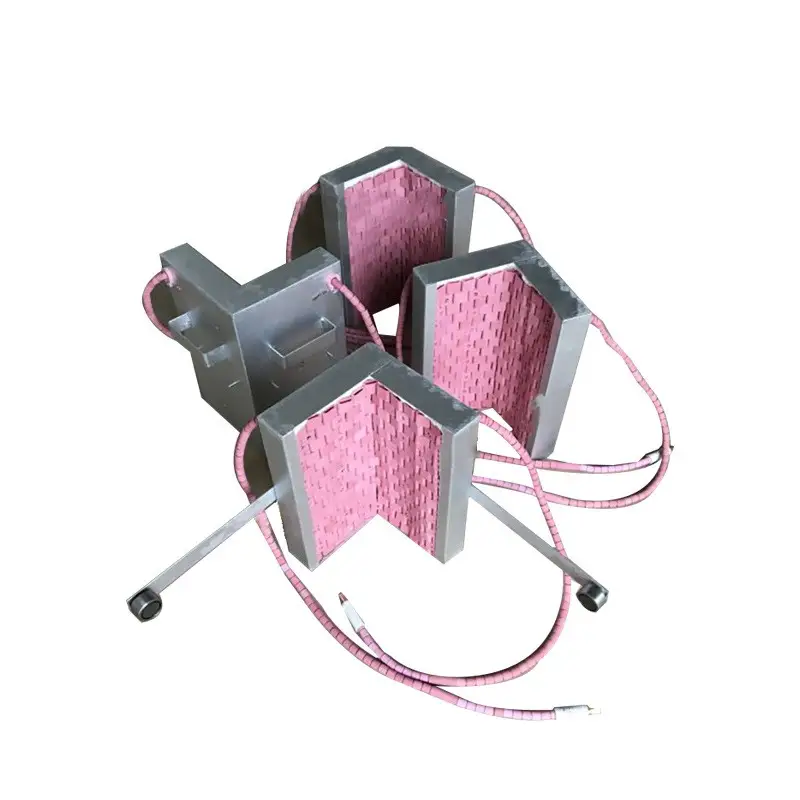

Silver metal frame: A stainless steel split type buckle shell that can be opened and closed. It quickly wraps around the outer wall of circular pipelines for easy assembly and disassembly, suitable for heat treatment of pipeline welding sites.
Pink lead out cable: High temperature resistant insulated power cord, used to connect temperature control equipment for power on heating and precise temperature regulation.
Product Features
Flexible fitting: Bendable to wrap special shaped workpieces and large diameter pipelines
Fast temperature rise and high thermal efficiency; precise temperature control with a temperature controller
Split type design for easy installation and removal, ideal for field and construction site operations
Features
1, Rapid temperature rise, maximum temperature 1050°C
2, High heat efficiency
3, Good heat insulation
4, Save energy
5, Low labor intensity
6, Use safe and reliable

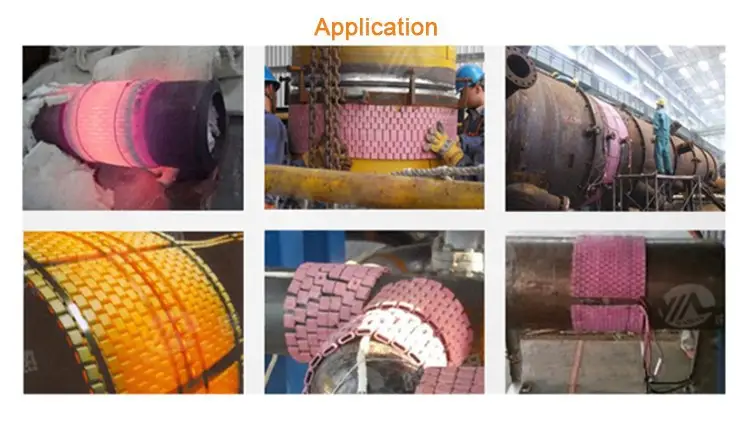

Core Applications
Mainly used for industrial pipelines, pressure vessels and large steel structures:
Pre heating before welding to improve welding quality
Post welding stress relief heat treatment to prevent weld cracking
Pipeline drying, heat tracing and insulation, and local high temperature heating of chemical equipment
