Car Engine Heater
Car Engine Heater by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
Car Engine Heater: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For Car Engine Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Car Engine Heater lists Power density: 0.10~1.50w/cm²; External insulation material: Silicone glass fiber; Voltage: 3.7-660V. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Car Engine Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of Car Engine Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Temperature range | -40.00~180.00°C |
|---|---|
| Electric resistance precision | ±10%( bigger value selected) |
| Power density | 0.10~1.50w/cm² |
| Mechanical pressure | 100.00kg/cm² |
| Minimum bending radius | 3.20mm |
| External insulation material | Silicone glass fiber |
| Internal heating element | Ni-Cr alloy |
| Thickness | 1.5mm-3mm(With 3M) |
| Voltage | 3.7-660V |
ARCHIVED PRODUCT INFORMATION
Description
silicone heater is a flexible heating element made of a silicone rubber material that is designed to provide uniform
and efficient heat transfer in a wide range of applications. The heating element consists of a resistance wire, such
as nickel-chromium or copper-nickel, that is embedded in a silicone rubber substrate, which is then bonded to a thin
layer of fiberglass or other insulating material.
|
Temperature range |
-40.00~180.00°C |
|
Electric resistance precision |
±10%( bigger value selected) |
|
Power density |
0.10~1.50w/cm² |
|
Mechanical pressure |
100.00kg/cm² |
|
Minimum bending radius |
3.20mm |
|
External insulation material |
Silicone glass fiber |
|
Internal heating element |
Ni-Cr alloy |
|
Thickness |
1.5mm-3mm(With 3M) |
|
Voltage |
3.7-660V |
The engine heating pad is built into the oil pan, and the temperature is maintained at about 60 to 70℃.
When the temperature exceeds 194°f/90℃, the heating pad will automatically shut down. When the
temperature drops to about 40℃, restart the heating to prevent safety problems caused by high temperature.

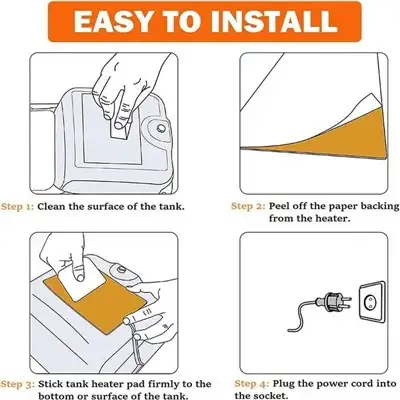

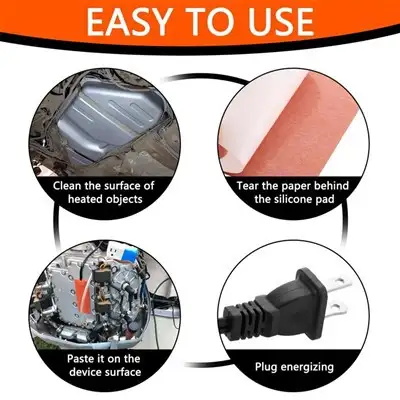

Easy to Use: Clean the surface; Peel off the backing paper in brown color; apply the silicone heater pad to the surface cleaned making sure no gap or air bubbles trapped under the pad. Plug power cord into any wall outlet. Note: The engine heating pad is designed to be used on the metal surface to heat the fluid, and do not use it on any plastic surface on the engine
Keep the Engine Warm: In every cold winter, using this heater and battery heating pad can quickly start the engine to maintain good engine oil temperature and improve engine performance. Use the silicone battery heater pad to heat up engine oil about 15 minutes. The oil temperature will be heated up to 194 degrees Fahrenheit (90 ℃), which will be easy to start your car
Temperature Protection: When the temperature exceeds 194 F/90 C, the universal heating pad will automatically turn off. When the temperature drops to around 40 C, restart heating to avoid safe issues caused by high temperatures

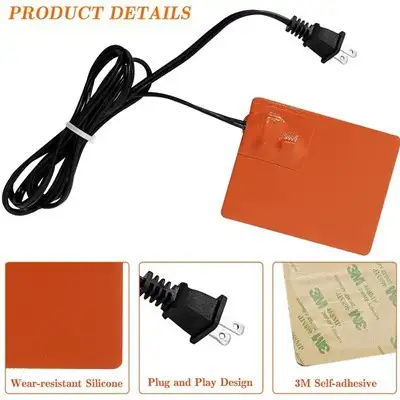

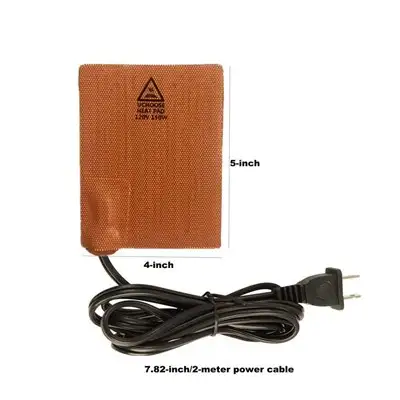

Features: Silicone rubber heating board is composed of silicone rubber and glass fiber cloth, high insulation performance, safe use. It is wear -resistant, heat -resistant, waterproof and oil -proof, not easy to be corroded, which can have a longer service life. Us standard plug, high power 120V 300w, line length 1.5m, Larger size (5.91*7.87inch), fast heating
WIDELY USE: The silicone heater pad is widely use on RVs, campers, trailers, boats, and ships in winter, which is installed in engine oil pan, oil tank, reservoir, transmission oil pan and so on
,
Product Advantage
1.3M gum
2. The shape can be customized
3. Heating in the air, the highest temperature is 180℃
4. USB interface, 3.7V battery, thermocouple wire and thermistor can be added (PT100 NTC 10K 100K 3950%)
Construction: Silicone heaters are made by sandwiching a resistive heating element (usually a nickel-chromium wire or etched foil) between layers of silicone rubber. The silicone rubber serves as both the insulating material and the outer protective layer.
Resistance Heating: When an electric current is applied to the resistive heating element within the silicone heater, it generates heat due to resistance. The resistance of the heating element causes it to heat up, transferring thermal energy to the surrounding silicone rubber.
Uniform Heat Distribution: Silicone rubber has excellent thermal conductivity properties, allowing the heat generated by the heating element to distribute evenly across the surface of the heater. This ensures uniform heating of the target object or surface.
Flexibility: One of the key advantages of silicone heaters is their flexibility. They can be manufactured in various shapes, sizes, and thicknesses to conform to the contours of complex surfaces or objects. This flexibility makes them suitable for applications where traditional rigid heaters are impractical.
Temperature Control: Temperature control of silicone heaters is typically achieved using a thermostat or temperature controller. These devices monitor the temperature of the heater and regulate the power supplied to maintain the desired temperature level.
Overall, silicone heaters are versatile, efficient, and reliable heating solutions suitable for a wide range of industrial and commercial applications.
silicone heater is a type of flexible heating element constructed using silicone rubber as the base material.
These heaters are commonly used in various applications such as medical devices, food processing
equipment, aerospace, automotive, and electronics.
Silicone heaters are known for their flexibility and durability, as well as their ability to withstand high temperatures and harsh environments.
They are typically used in applications where a flat or curved surface needs to be heated, such as in industrial pro
cesses, medical equipment, and aerospace applications.
One of the advantages of silicone heaters is their ability to conform to irregular surfaces, which makes them ideal for use in equipment that has complex geometries or tight spaces. They can also be easily customized to fit specific shapes and sizes, which allows for a high degree of design flexibility.
Silicone heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating.
Overall, silicone heaters are a reliable and cost-effective solution for a wide range of heating applications, offering excellent thermal stability, resistance to moisture and chemicals, and long service life.
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
