THIN, LIGHT & UNIFORM

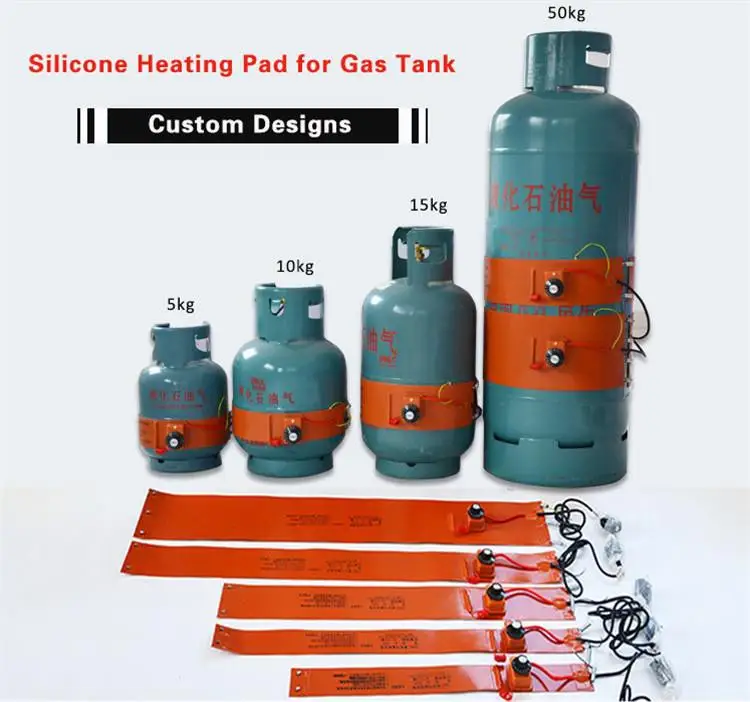

5kg 10kg 15kg 50kg Flexible Silicone Rubber Gas Bottle Heater
5kg 10kg 15kg 50kg Flexible Silicone Rubber Gas Bottle Heater by LICHENGDA. Surface contact and flexible circuit layout, configuration details and made-to-drawing quotation for surface warming and compact equipment assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Surface contact and flexible circuit layout
5kg 10kg 15kg 50kg Flexible Silicone Rubber Gas Bottle Heater: Define the heated outline, substrate material and mounting method. Continuous contact supports uniform heat transfer; air pockets, folds or partial bonding can produce local hot spots.
Keep the active circuit clear of fasteners and sharp bends. Confirm adhesive compatibility, lead strain relief and sensor location at the substrate rather than selecting power from pad area alone.
For 5kg 10kg 15kg 50kg Flexible Silicone Rubber Gas Bottle Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
For 5kg 10kg 15kg 50kg Flexible Silicone Rubber Gas Bottle Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Surface warming and compact equipment assemblies. The final suitability of 5kg 10kg 15kg 50kg Flexible Silicone Rubber Gas Bottle Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| 10kg | 80*970mm 220v 220w |
|---|---|
| 15kg | 100*970mm 220v 250w |
| 15KG | 120*970 220v 300W |
| 15KG | 100*1250mm 220v 300w |
| 50KG | 120*1250 220v 350W |
| 50KG | 200*1250 220v 500W |
ARCHIVED PRODUCT INFORMATION
Description
Gas tank silicone heating pad is limited only by the imagination. Heat can be put where it is needed. These electric industrial heating blankets improve heat transfer, speed warm ups, and decrease wattage requirements.
Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little material separates the element from the part, heat transfer is rapid and efficient. The silicone rubber flexible heaters are constructed with a wire-wound element and the heater construction creates a very thin heater allowing it to fit applications where space is limited.
| volume | stock size | |
gas tank heater |
5kg | 80*760mm 220v 180w |
| 10kg | 80*970mm 220v 220w | |
| 15kg | 100*970mm 220v 250w | |
| 15KG | 120*970 220v 300W | |
| 15KG | 100*1250mm 220v 300w | |
| 50KG | 120*1250 220v 350W | |
| 50KG | 200*1250 220v 500W |

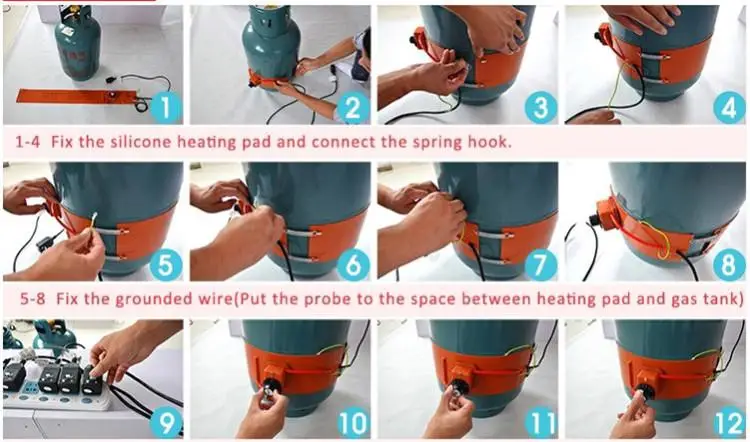

install
Product Advantage
1. Temperature range: -40.00~250.00°C
2. Electric resistance precision: ±10% (bigger value selected)
3. Power density: 0.10~1.50w/cm²
4. Mechanical pressure: 100.00kg/cm²
5. Minimum bending radius: 3.20mm
Here are some key features and considerations:
Material and Construction:
The heater is typically made of a flexible silicone rubber material that is resistant to high temperatures and offers good thermal conductivity. This flexibility allows the heater to conform to the shape of the gas tank.
Heating Element:
The heating element within the silicone heater is often made of materials like silicone rubber with embedded resistive heating wires. This design allows for even heat distribution over the surface of the gas tank.

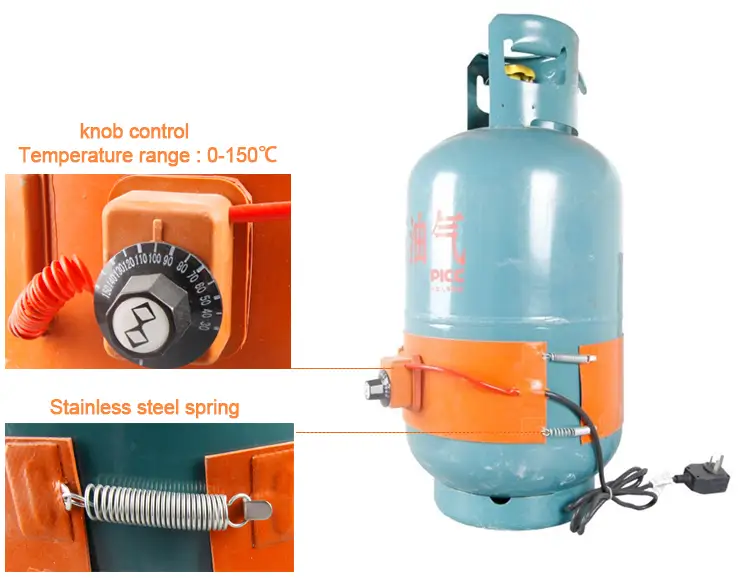

Temperature Control:
Gas tank silicone heaters are equipped with temperature control mechanisms to ensure that the heating process is controlled and does not exceed desired temperature limits. This can be achieved using thermostats, thermocouples, or other temperature control devices.
Attachment and Insulation:
The silicone heater is designed to be easily attached to the surface of the gas tank. Some heaters come with adhesive backing for easy installation. Additionally, they may have insulation layers to minimize heat loss to the surroundings.
Power Supply:
These heaters are typically powered by electricity, and the power requirements depend on the size of the gas tank and the desired heating rate. Common voltages include 120V or 240V.
Applications:
Gas tank silicone heaters find applications in various industries such as oil and gas, chemical processing, food processing, and other manufacturing processes where temperature control is critical for the contents of the tanks.
Sizes and Customization:
Gas tank silicone heaters come in various sizes and can often be customized to fit specific tank dimensions and shapes. This allows for efficient heating without wasting energy.
Safety Features:
Some heaters may include safety features such as over-temperature protection to prevent overheating and potential damage to the gas tank or its contents.
Weather Resistance:
Depending on the application, gas tank silicone heaters may need to be weather-resistant if they are exposed to outdoor conditions.
Application
1. Industrial equipment, pipelines, barrels, tanks, etc.
2. Outdoors telecommunication equipment
3. Medical equipment and devices
4. Outdoors electronic devices
5. Thermal imaging of imaging equipment
6. Case protection under cold and moist environment
7. Industrial ovens and thermal processing equipment
8. Ventilator supports
9. Laminating equipment
10. Vessels
Company Profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Feedback
Hot Tags: 5kg 10kg 15kg 50kg flexible silicone rubber gas bottle heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, 24v polyimide flexible heaters, Flexible Silicone Heating Pad Heater, silicone rubber heater heating belt band, flexible silicone rubber heater with controler, electric silicone drum heater bands, silicone rubber heater manufacturers
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
