THIN, LIGHT & UNIFORM
3v Kapton Film Heaters
3v Kapton Film Heaters by LICHENGDA. Thin-film bonding and temperature feedback, configuration details and made-to-drawing quotation for instruments, electronics and precision surface warming.
Product image gallery (7)
PRODUCT ENGINEERING
Thin-film bonding and temperature feedback

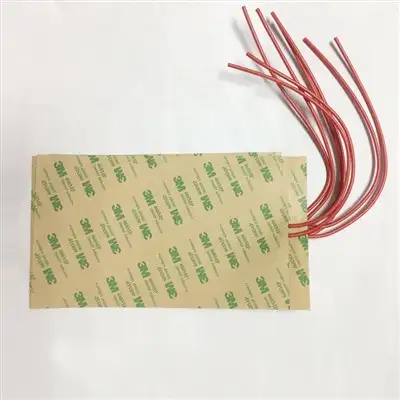

3v Kapton Film Heaters: A polyimide heater has low thermal mass and should be supported by a compatible substrate. Supply an outline drawing that identifies cutouts, lead exit and the area available for bonding.
Review adhesive temperature limits and uniform contact pressure. Place the sensor where the controlled surface temperature matters, and keep the circuit away from sharp folds or screw holes.
For 3v Kapton Film Heaters, use the listed 3v as catalog identifiers and confirm the complete electrical and dimensional combination before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for 3v Kapton Film Heaters lists Power density range: 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2); Voltage: 3.7v-220v; Material: polyimide; Power: 1-6.5w/cm2. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For 3v Kapton Film Heaters, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
| Catalog name values | 3v |
|---|
Application and reference configuration
Instruments, electronics and precision surface warming. The final suitability of 3v Kapton Film Heaters depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Power density range | 0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
|---|---|
| Thickness | 0.15-0.18mm |
| thermocouple | K or J type |
| Voltage | 3.7v-220v |
| Wattage | 3w-100kw |
| Material | polyimide |
| Resistance Precision | ±10%ak±0.5Ω |
| Power | 1-6.5w/cm2 |
ARCHIVED PRODUCT INFORMATION
Description

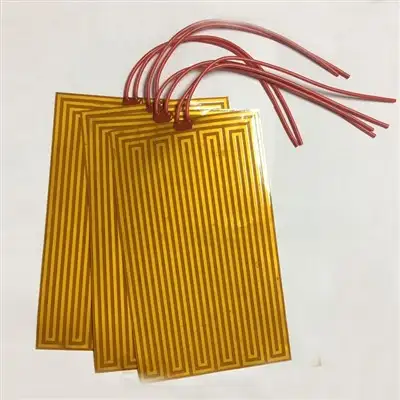

Polyimide heater (Kapton heater) is available in a variety of shapes, sizes, and wattages, it is a clear amber colored polyimide film. The process for making flexible heating film is similar to that of Etched Foil Silicone heaters.It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -60 degree celsius to 250 degree Celsius.
|
Power density range |
0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
|
Thickness |
0.15-0.18mm |
|
thermocouple |
K or J type |
|
Voltage |
3.7v-220v |
|
Wattage |
3w-100kw |
|
Material |
polyimide |
|
Resistance Precision |
±10%ak±0.5Ω |
|
Power |
1-6.5w/cm2 |
Technical Parameter
1:Heating core: Alloy
2:Thickness: 0.15-0.18
3:Operating temperature:-190 ~ 205℃
4:Voltage: 3.7-220V
5:Power: Designed according to environment
6:Power deviation: ± 5℃
7:Tensile strength of lead:>5N
Polyimide heaters are known for their flexibility, durability, and resistance to high temperatures and harsh environments. They are typically used in applications where a thin and flexible heating element is required, such as in medical equipment, aerospace applications, and electronics.
One of the advantages of polyimide heaters is their ability to conform to irregular surfaces, which makes them ideal for use in equipment that has complex geometries or tight spaces. They can also be easily customized to fit specific shapes and sizes, which allows for a high degree of design flexibility.
Polyimide heaters are available in a range of power ratings, from a few watts to several kilowatts, and can be designed to operate at different voltages and frequencies. They can also be equipped with temperature sensors and other control devices to ensure precise temperature control and protection against overheating.
Overall, polyimide heaters are a reliable and cost-effective solution for a wide range of heating applications, offering excellent thermal stability, resistance to moisture and chemicals, and long service life.
Feedback
Company Profilm
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
