DESIGNED FOR YOUR APPLICATION
Carbon Fiber Heating Element
Carbon Fiber Heating Element by LICHENGDA. Drawing review and thermal interfaces, configuration details and made-to-drawing quotation for made-to-drawing heating assemblies.
Product image gallery (7)
PRODUCT ENGINEERING
Drawing review and thermal interfaces
Carbon Fiber Heating Element: Supply a drawing showing active and cold zones, mounting faces and electrical exits. Identify the heated material, heat-loss paths and required warm-up time so the geometry and power can be reviewed together.
Specify environmental exposure, control method and service access. Agree a sample configuration and inspection points before committing the design to a production quantity.
For Carbon Fiber Heating Element, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Carbon Fiber Heating Element lists Material: transparent quartz tube/Ruby glass tube and tungsten wire; Voltage: 110V, 120V, 200V, 220V, 230V, 240V, 400V, 480V and other can be customized; Length: 100-2000mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Carbon Fiber Heating Element, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Made-to-drawing heating assemblies. The final suitability of Carbon Fiber Heating Element depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

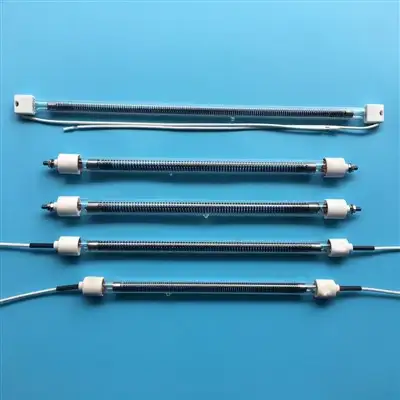

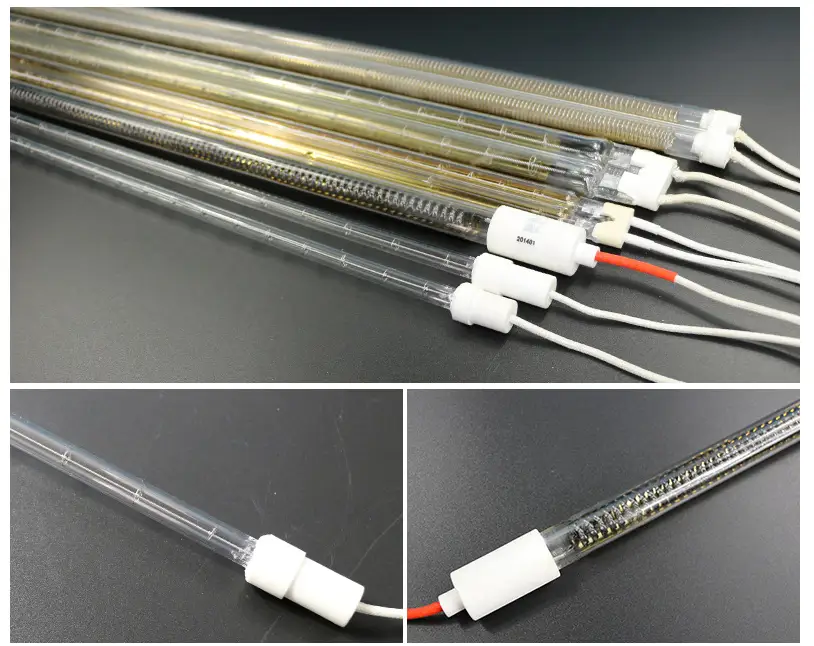

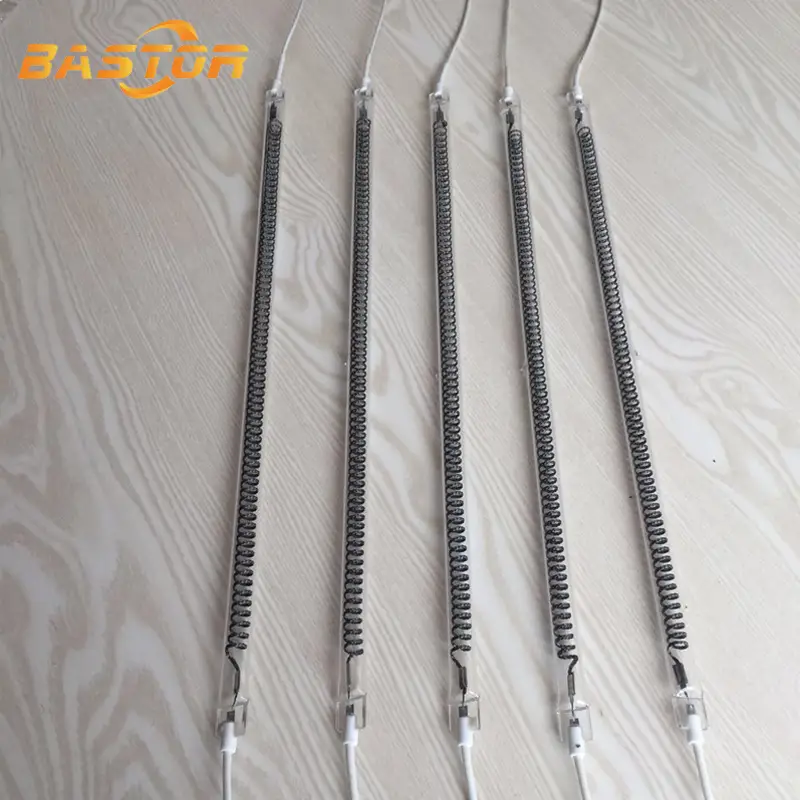

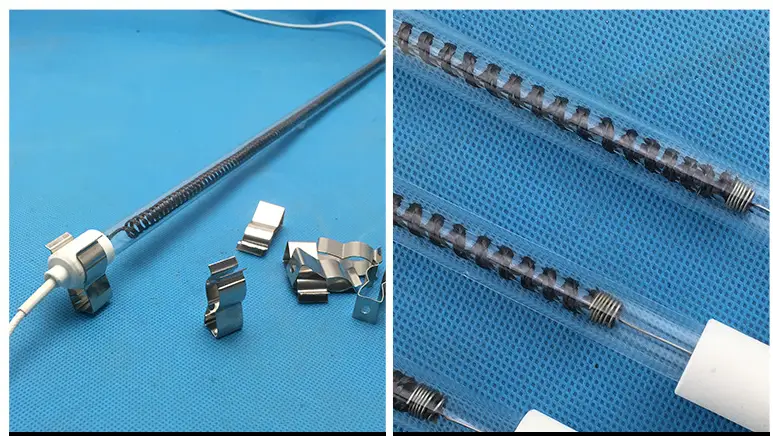

| Product | infrared quartz heater element |
|---|---|
| Material | transparent quartz tube/Ruby glass tube and tungsten wire |

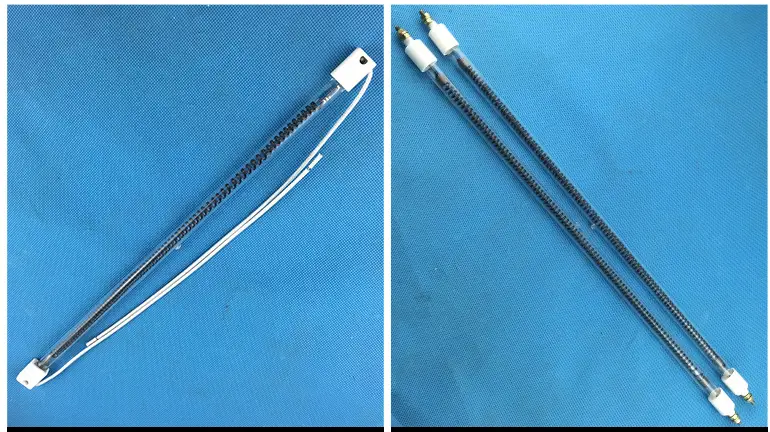

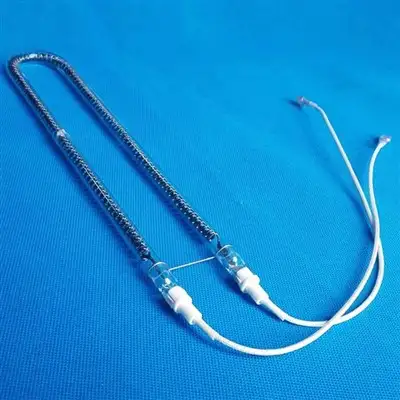

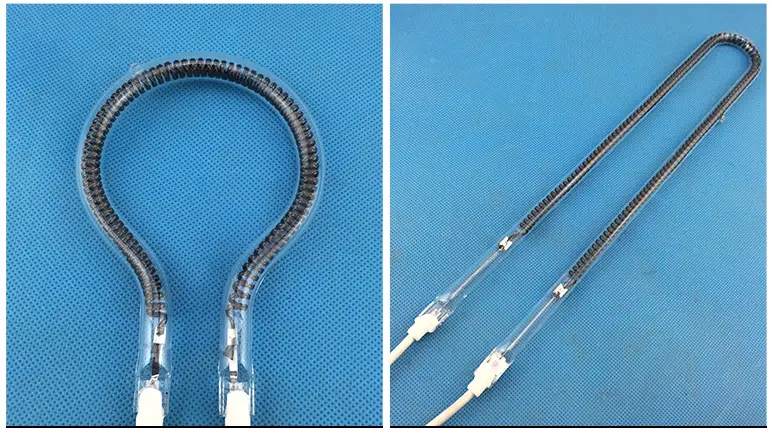

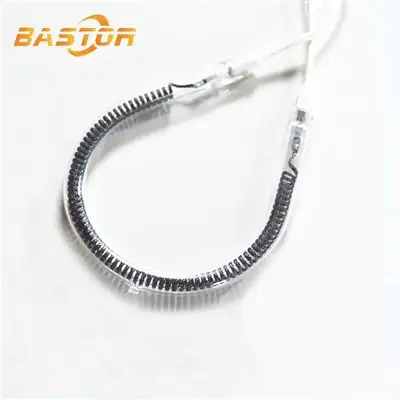

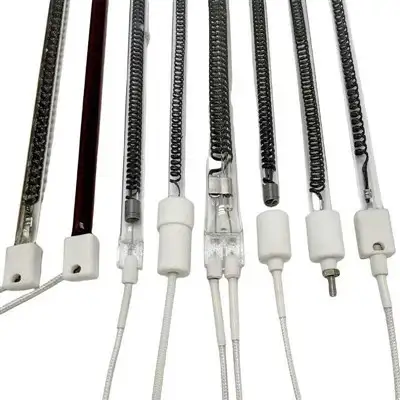

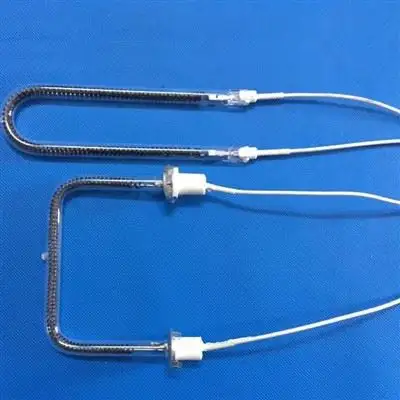

| Type | straight type or round shape |

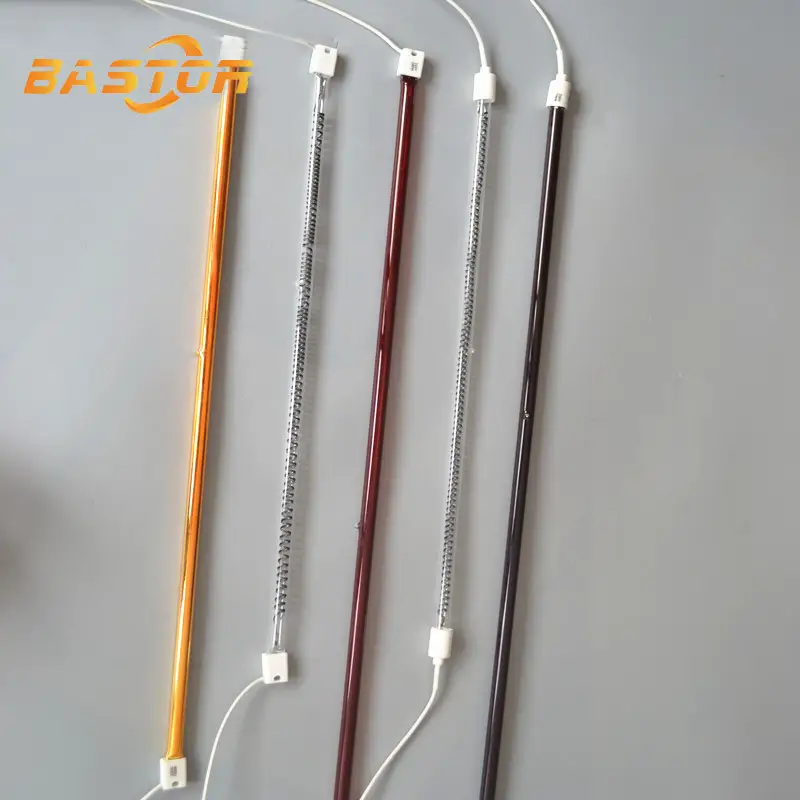

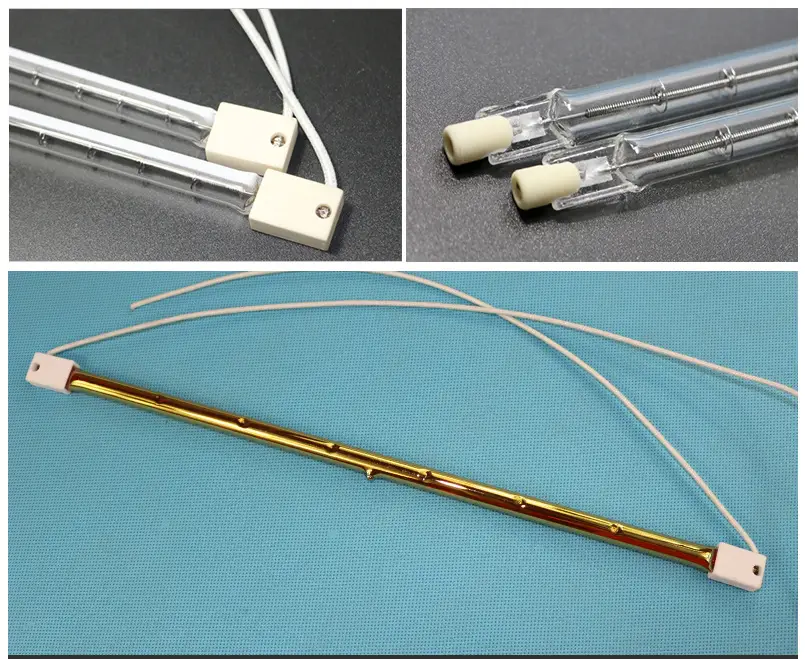

| Reflector | half white coated, gold coated |
| Voltage | 110V, 120V, 200V, 220V, 230V, 240V, 400V, 480V and other can be customized |
| Wattage | 300W-3000W, and other can be customized |
| Length | 100-2000mm |
| Warranty | 5000hours |
ARCHIVED PRODUCT INFORMATION
Description
Product Description
|
Product |
infrared quartz heater element |
|
Material |
transparent quartz tube/Ruby glass tube and tungsten wire |
|
Type |
straight type or round shape |
|
Reflector |
half white coated, gold coated |
|
Voltage |
110V, 120V, 200V, 220V, 230V, 240V, 400V, 480V and other can be customized |
|
Wattage |
300W-3000W, and other can be customized |
|
Length |
100-2000mm |
|
Warranty |
5000hours |
Infrared lamps, also known as infrared heating lamps, refer to lamps whose main components of radiation
are in the infrared spectral range. Infrared lamps can provide controllable energy radiation and can be
used for heating. Industrially, they are mainly used in thermionic wafers in the semiconductor industry,
blowing PETP bottles, reflow soldering equipment, drying fillers, and drying paint in motor vehicle repairs.
Main applications in medical Used in copier toner positioning, melting of printed circuit board solder, food
heating and sterilization, machinery, automotive, food, medical and other industries.
A. Long-wave infrared (that is, far-infrared) features: fast heating speed, uniform heating, small thermal
inertia, only 1-3 minutes for constant temperature of components, 60%-75% higher electric energy
radiation conversion efficiency, no explosion of hot and cold, energy saving long lasting.
B. Short-wave infrared (ie, near-infrared) Features: It has a heating and cooling time of 1-3 seconds,

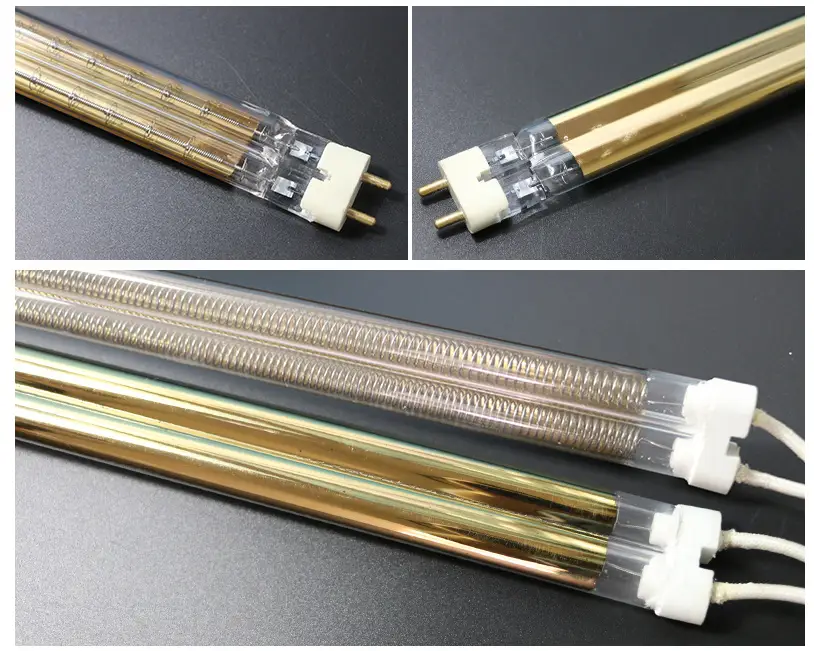

which makes the heating process control more flexible. Durable gold-coated reflective layer for single
tube and twin tube, radiation efficiency, life is generally more than 5000 hours
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: carbon fiber heating element, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
