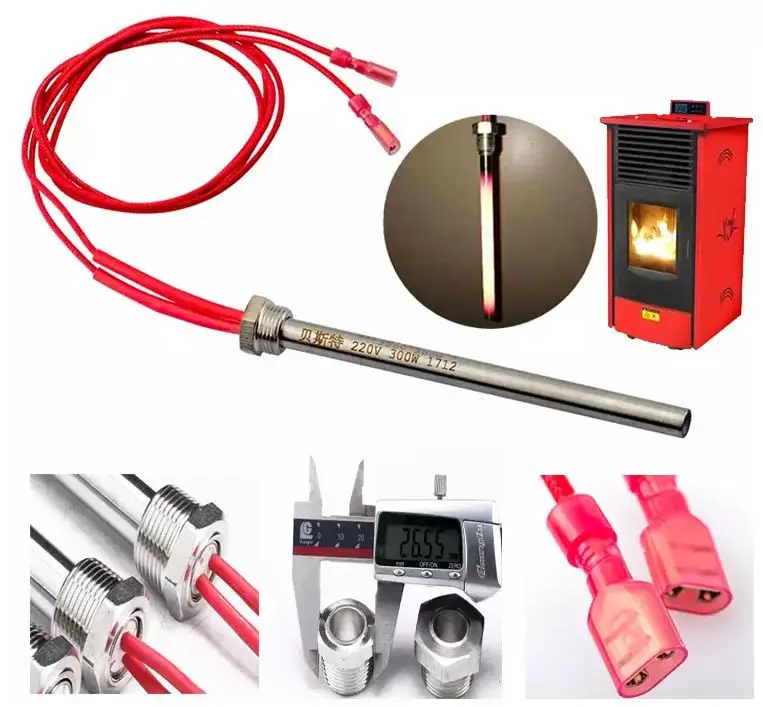

220v 300w Stainless Steel Igniter Heater
220v 300w Stainless Steel Igniter Heater by LICHENGDA. Ignition fit and airflow, configuration details and made-to-drawing quotation for pellet stoves and controlled ignition assemblies.
Product image gallery (6)
PRODUCT ENGINEERING
Ignition fit and airflow
220v 300w Stainless Steel Igniter Heater: Match diameter, inserted length, bracket and terminal style to the appliance drawing. Check that combustion air reaches the intended ignition zone and that the element can be removed for service.
Confirm supply voltage, ignition-cycle duration and the controller’s switching method. A stove brand in the catalog name indicates an application reference; verify the dimensions and electrical rating before fitting a replacement.
Using the catalog-name values 220 V and 300 W, a single resistive load has an indicative current of 1.36 A and resistance of 161.33 Ω (I = P/V; R = V²/P). These calculations assume one element at its stated supply voltage; confirm phase arrangement, cold resistance and circuit protection in the approved drawing.
The archived configuration for 220v 300w Stainless Steel Igniter Heater lists Resistance heating wire: NiCr 80/20 wire; Tube diameter: 10mm; Tube length: 140mm,170mm or customized; Length tolerance: ±1 mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For 220v 300w Stainless Steel Igniter Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
| Catalog name values | 220v · 300w |
|---|---|
| Indicative single-element current | 1.36 A |
| Indicative single-element resistance | 161.33 Ω |
Application and reference configuration
Pellet stoves and controlled ignition assemblies. The final suitability of 220v 300w Stainless Steel Igniter Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Resistance heating wire | NiCr 80/20 wire |
|---|---|
| Tube diameter | 10mm |
| Tube length | 140mm,170mm or customized |
| Thread | 3/8 inch |
| Maximum temperature | instantly heat 300℃in 10 seconds, max temperature is 870℃ |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
ARCHIVED PRODUCT INFORMATION
Description
| Resistance heating wire | NiCr 80/20 wire |
| Tube diameter | 10mm |
| Tube length | 140mm,170mm or customized |
| Thread | 3/8 inch |
| Maximum temperature | instantly heat 300℃in 10 seconds, max temperature is 870℃ |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) | ≤ 0.5 mA |
Fast response speed and high heating efficiency
Hot Tags: 220v 300w stainless steel igniter heater, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, igniter cartridge heater for pellet stove, 220v 300w pellet stove cartridge heater, 230v cartridge heater igniter, Pellet Ceramic Igniter For Stove, 220v cartridge heater for pellet stove, Pellet Ignition Ceramic
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
