24v Electric 3d Printer Cartridge Heater
24v Electric 3d Printer Cartridge Heater by LICHENGDA. Bore fit and conductive heat transfer, configuration details and made-to-drawing quotation for molds, dies and conductive tooling.
Product image gallery (17)
PRODUCT ENGINEERING
Bore fit and conductive heat transfer
24v Electric 3d Printer Cartridge Heater: Install the active sheath in a close-fitting, clean bore. Specify bore diameter, tolerance and heated length together; excessive clearance increases sheath temperature and slows heat transfer.
Record the lead exit, cold end and removal access before the tool is machined. Locate the control sensor near the heated zone without placing it directly against the resistance element.
For 24v Electric 3d Printer Cartridge Heater, use the listed 24v as catalog identifiers and confirm the complete electrical and dimensional combination before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for 24v Electric 3d Printer Cartridge Heater lists Resistance heating wire: NiCr 80/20 wire; size: 6*20mm or customized; wire length: 250mm; Length tolerance: ±1 mm. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For 24v Electric 3d Printer Cartridge Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
| Catalog name values | 24v |
|---|
Application and reference configuration
Molds, dies and conductive tooling. The final suitability of 24v Electric 3d Printer Cartridge Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| Resistance heating wire | NiCr 80/20 wire |
|---|---|
| Sheath | stainless steel 2520 |

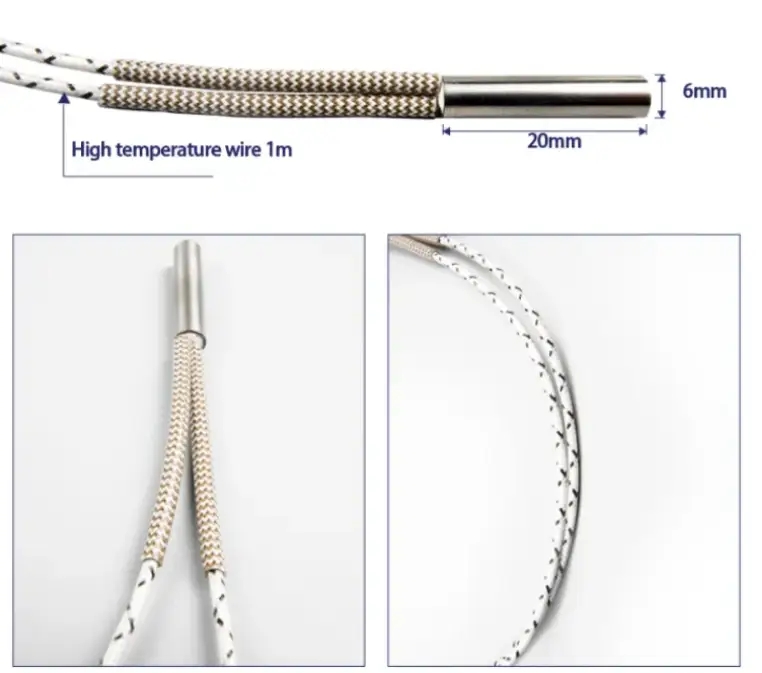

| size | 6*20mm or customized |
| wire length | 250mm |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Length tolerance | ±1 mm |
| Diameter tolerance | ± 0.02mm |
| Standard Cold Zone | 5-10mm |
| Insulation resistance (cold) | ≥ 500 MΩ |
