UNIFORM CYLINDER HEATING
Heater Band
Heater Band by LICHENGDA. Diameter, width and clamping contact, configuration details and made-to-drawing quotation for extrusion barrels and injection-molding tooling.

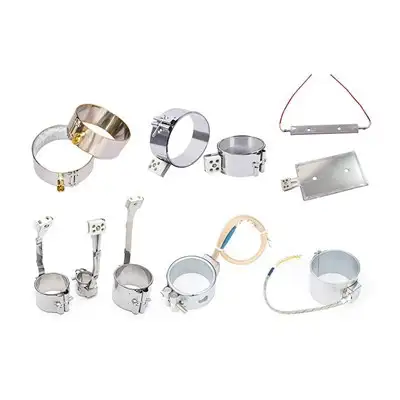

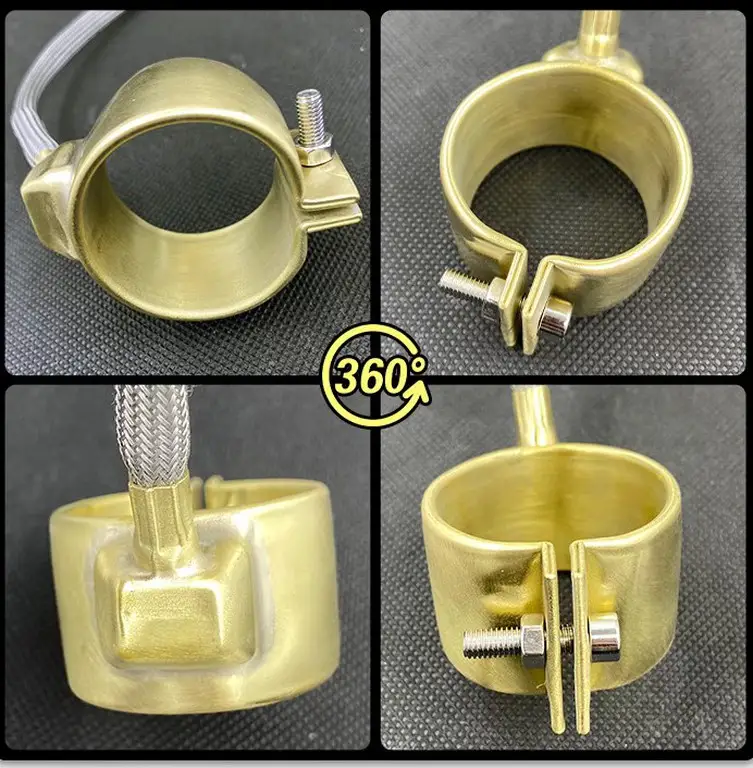

Product image gallery (7)
PRODUCT ENGINEERING
Diameter, width and clamping contact
Heater Band: Match inside diameter and band width to the barrel or nozzle. Contact gaps create local hot spots; the closure, terminal angle and available tightening space belong on the installation drawing.
Review expansion during heating and the equipment maker’s tightening procedure. Keep lead routing outside the hottest zone and confirm sensor placement for each controlled barrel section.
For Heater Band, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Heater Band lists Voltage: 120V, 240V, 480V, 600V and so on; Power: 50-2000W, or customized. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Heater Band, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Extrusion barrels and injection-molding tooling. The final suitability of Heater Band depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.

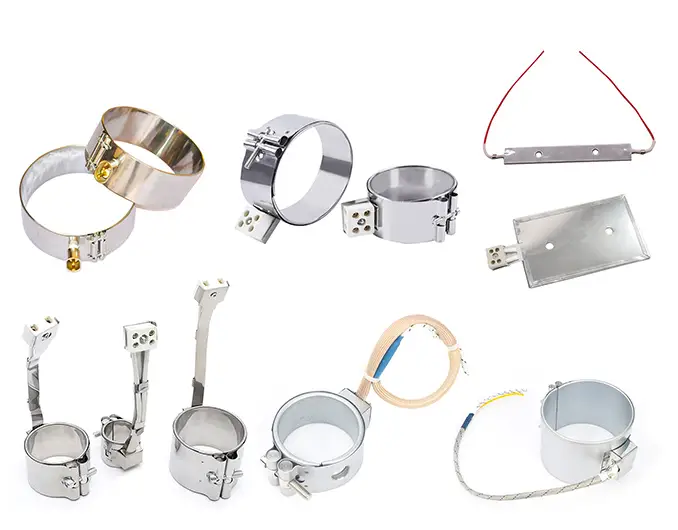

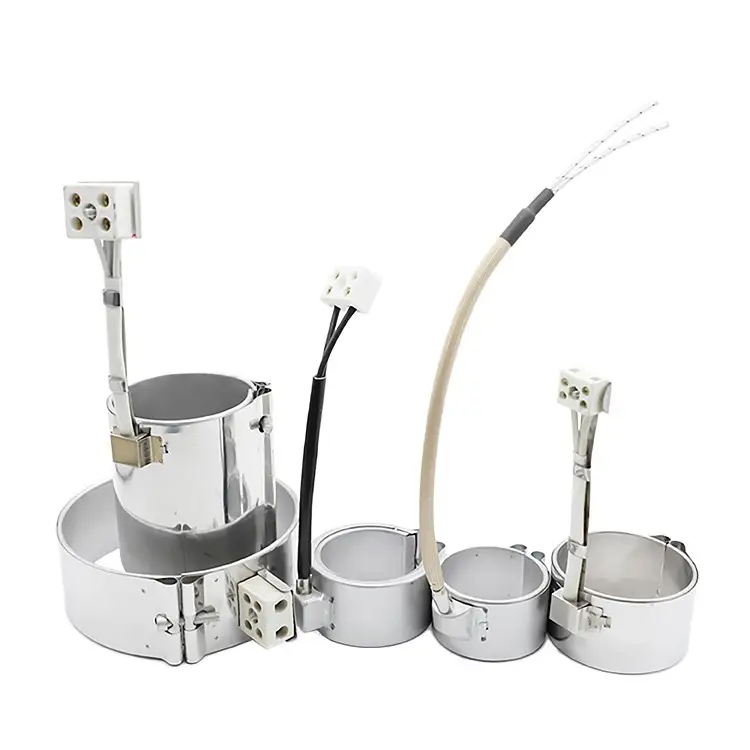

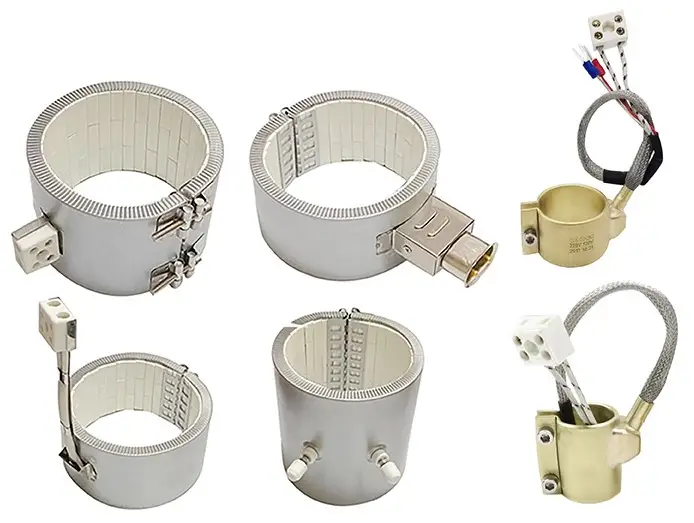

| Product Name | Ceramic/mica/copper Band Heater |
|---|---|
| Advantage | high working temperature and long uage lifetime |
| Heating Element | Air heater |
| Voltage | 120V, 240V, 480V, 600V and so on |
| Power | 50-2000W, or customized |
| Thickness | customized |
ARCHIVED PRODUCT INFORMATION
Description

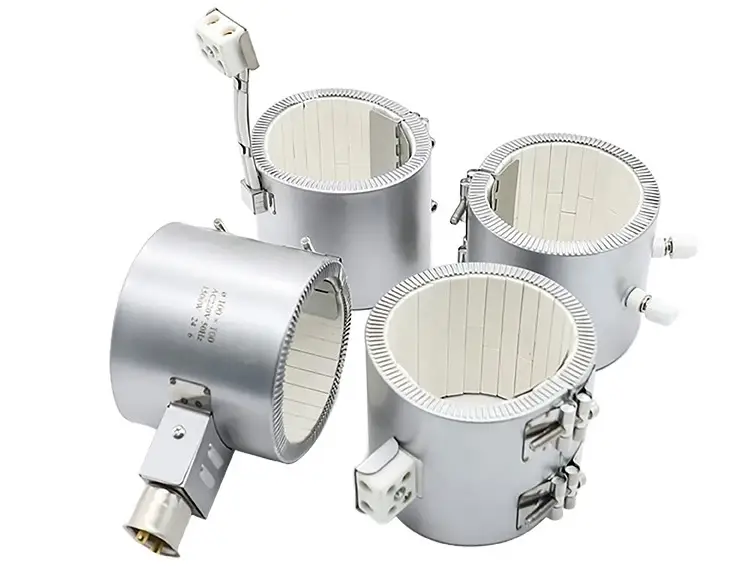

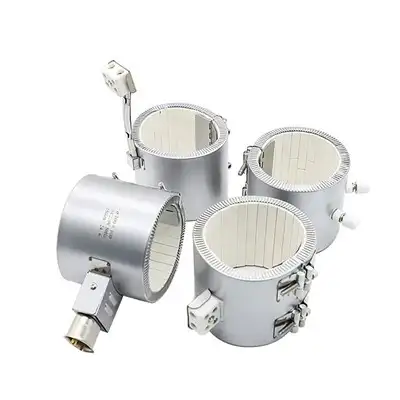

Ceramic Band Heaters offer longer heater life, high processing temperature capabilities and full flexibility for ease of installation.
The built in thermal insulation limits heat losses and conserves electrical energy. A wound nickelchrome resistance wire is strung through high temperature ceramic bricks that sit on an insulation blanket of ceramic fiber insulation.
Ceramic Band heaters are designed and manufactured out of 8 years of experience, for superior performance and life expectancy. Primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500℃ along with Energy Saving.
| Product Name | Ceramic/mica/copper Band Heater |
| Advantage | high working temperature and long uage lifetime |
| Heating Element | Air heater |
| Voltage | 120V, 240V, 480V, 600V and so on |
| Power | 50-2000W, or customized |
| Thickness | customized |
Product advantages
1. Available in chrome nickel steel with power saving options.
2. Special high grade steatite insulators for superior thermal conductivity.

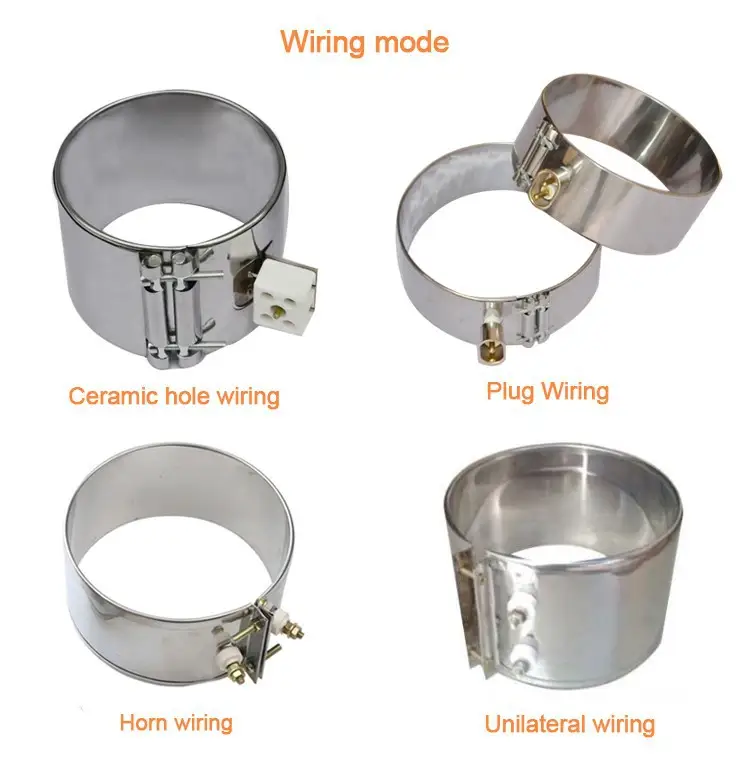

3:Robust terminal junction with specially designed protection cap.
4. Efficient heat transfer even on irregular surfaces in comparison to mica band.
5 Conserves energy with improved heating efficiency up to 55 Watts per square inch.
6. Reduces down time for replacements.Easy installation and removal.
7. Engineered for longer life with superior quality nichrome wire for uniform temperature & maximum
amperage carrying capacity

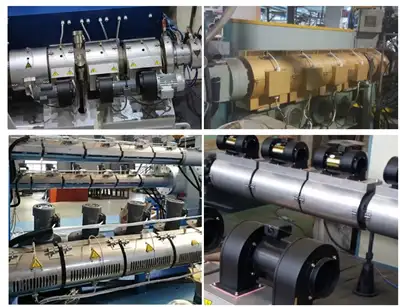

Applications
Injection molding machine, extruder, film blowing machine, tape cutting machine, medical equipment,
spray cloth machine ect

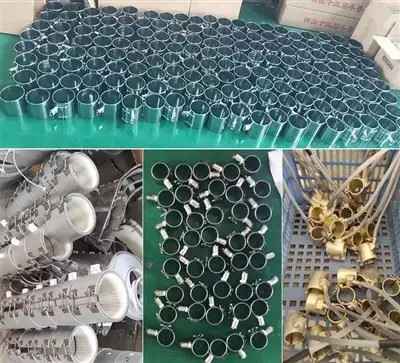

Package
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: heater band, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, nozzle band heater for injection molding, plastic extruder ceramic band heater, 220v electric brass band heater, industrial mica band heaters manufacturer, flat mica heater heating element, electric brass band nozzle heater
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
