UNIFORM CYLINDER HEATING
Casting Aluminum Band Heater For Extruder
Casting Aluminum Band Heater For Extruder by LICHENGDA. Diameter, width and clamping contact, configuration details and made-to-drawing quotation for extrusion barrels and injection-molding tooling.

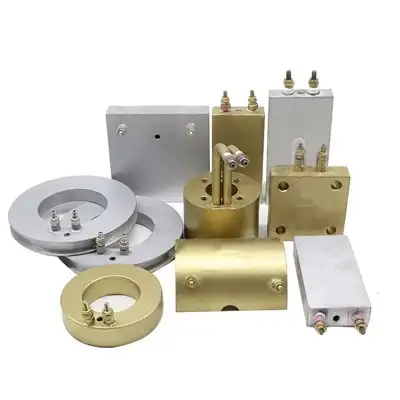

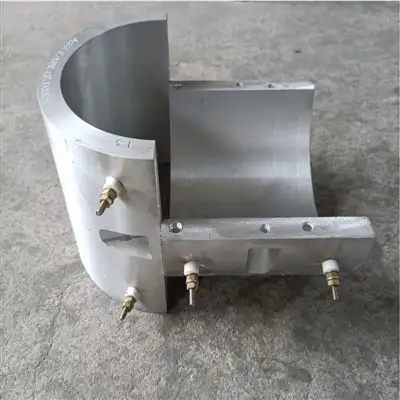

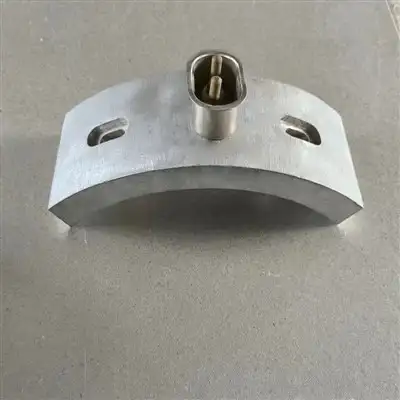

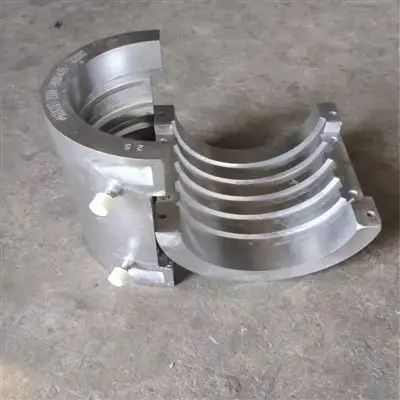

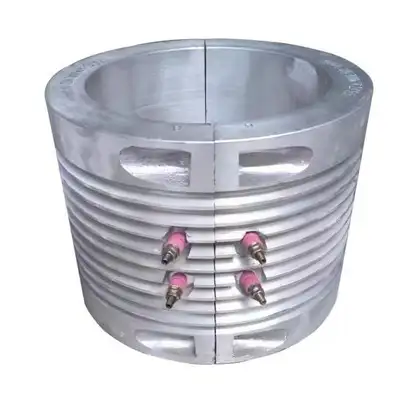

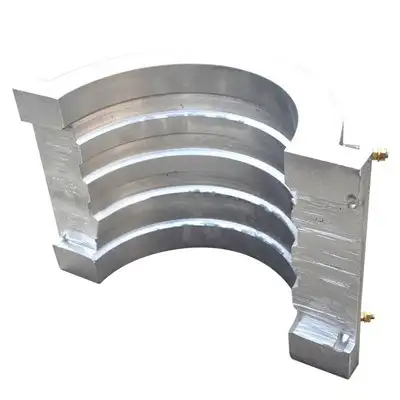

Product image gallery (7)
PRODUCT ENGINEERING
Diameter, width and clamping contact
Casting Aluminum Band Heater For Extruder: Match inside diameter and band width to the barrel or nozzle. Contact gaps create local hot spots; the closure, terminal angle and available tightening space belong on the installation drawing.
Review expansion during heating and the equipment maker’s tightening procedure. Keep lead routing outside the hottest zone and confirm sensor placement for each controlled barrel section.
For Casting Aluminum Band Heater For Extruder, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Casting Aluminum Band Heater For Extruder lists sheath materials: aluminum; power (w/cm²): 2.5-4.5,4.5-6.0,3.5-5; voltage: 120v,240v,480v or customized; the power tolerance: 5%~-10%. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Casting Aluminum Band Heater For Extruder, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Extrusion barrels and injection-molding tooling. The final suitability of Casting Aluminum Band Heater For Extruder depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| sheath materials | aluminum |
|---|---|
| power (w/cm²) | 2.5-4.5,4.5-6.0,3.5-5 |
| voltage | 120v,240v,480v or customized |
| Max temperature | 400 degree or 752deg.F |
| options | Holes,grooves,notches,cutouts or customized |
| Leakage current | <0.5MA |
| insulation resistance | >2MΩ |
| grounding resistance | <0.1Ω |
| the power tolerance | 5%~-10% |
| terminations | leads,terminal boxes,screw,threaded studs,plug or customized |
ARCHIVED PRODUCT INFORMATION
Description
Cast aluminum heating rings are common heating elements typically used in industrial heating equipment, plastic machinery, packaging machinery, and other fields. They are made by embedding resistance wires into cast aluminum material, offering excellent thermal conductivity and corrosion resistance, making them suitable for high-temperature environments.
| sheath materials | aluminum |
| power (w/cm²) | 2.5-4.5,4.5-6.0,3.5-5 |
| voltage | 120v,240v,480v or customized |
| Max temperature | 400 degree or 752deg.F |
| options | Holes,grooves,notches,cutouts or customized |
| Leakage current | <0.5MA |
| insulation resistance | >2MΩ |
| grounding resistance | <0.1Ω |
| the power tolerance | 5%~-10% |
| terminations | leads,terminal boxes,screw,threaded studs,plug or customized |
Key Features:
Excellent Thermal Conductivity: Aluminum's superior thermal conductivity ensures rapid and even heat transfer to the object being heated.
Corrosion Resistance: Cast aluminum material provides good corrosion resistance, making it suitable for use in humid or corrosive environments.
Robust Structure: Cast aluminum heating rings have a compact and mechanically strong structure, capable of withstanding certain levels of mechanical impact and vibration.
Uniform Temperature Distribution: Thanks to aluminum's thermal conductivity, the surface temperature of the heating ring is evenly distributed, preventing localized overheating.
Easy Installation: Typically designed in circular or square shapes, they are easy to install and remove.
Applications:
Plastic Machinery: Used for Injection molding machine, extruder, film blowing machine, tape cutting machine,
medical equipment,spray cloth machine ect
Packaging Machinery: Used for heating in sealing machines, shrink wrap machines, etc.
Food Machinery: Used for heating in ovens, dryers, etc.
Chemical Equipment: Used for heating in reaction kettles, pipeline heating, etc.
Company profile
Xiamen Lichengda Precision Manufacturing Co., Ltd. was established in 2 0 1 2 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2, has nearly 100 employees. Applicable quality-system and product-compliance documentation must be confirmed for the quoted product, legal entity and current scope.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
Certifications
1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
You may contact any one of our sales and services team: email to us as inquiry.
Hot Tags: casting aluminum band heater for extruder, China, manufacturers, suppliers, factory, wholesale, customized, cheap, in stock, free sample, extruder mica band heater element, electric brass nozzle band heater, stainless steel mica band heater 220v, 220v electric band heater with thermocouple, heating band mica band heater, Extruder Barrel Ceramic Heater Band
Specifications and availability vary by configuration. Confirm dimensions, materials and electrical or measurement ratings in your quotation.
