UNIFORM CYLINDER HEATING

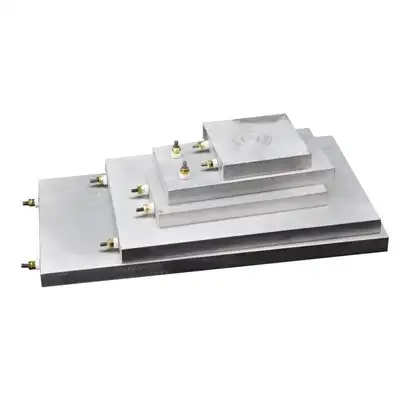

Aluminum Plate Heater
Aluminum Plate Heater by LICHENGDA. Diameter, width and clamping contact, configuration details and made-to-drawing quotation for extrusion barrels and injection-molding tooling.
Product image gallery (5)
PRODUCT ENGINEERING
Diameter, width and clamping contact
Aluminum Plate Heater: Match inside diameter and band width to the barrel or nozzle. Contact gaps create local hot spots; the closure, terminal angle and available tightening space belong on the installation drawing.
Review expansion during heating and the equipment maker’s tightening procedure. Keep lead routing outside the hottest zone and confirm sensor placement for each controlled barrel section.
For Aluminum Plate Heater, request the missing voltage, power and finished dimensions before calculating current, selecting a supply or fixing the mounting pattern.
The archived configuration for Aluminum Plate Heater lists sheath materials: aluminum; power (w/cm²): 2.5-4.5,4.5-6.0,3.5-5; voltage: 120v,240v,480v or customized; the power tolerance: 5%~-10%. Treat these as reference options and reconcile them with the named configuration and installation drawing before quotation.
For Aluminum Plate Heater, send the supply, continuous and peak temperature, mounting drawing, lead exit and quantity. Include the heated medium and control method so the quoted configuration can be checked against the actual duty.
Application and reference configuration
Extrusion barrels and injection-molding tooling. The final suitability of Aluminum Plate Heater depends on the assembled equipment and agreed operating conditions.
Archived figures below describe reference options or a product series. Confirm the exact model specification in the quotation.
| sheath materials | aluminum |
|---|---|
| power (w/cm²) | 2.5-4.5,4.5-6.0,3.5-5 |
| voltage | 120v,240v,480v or customized |
| Max temperature | 400 degree or 752deg.F |
| options | Holes,grooves,notches,cutouts or customized |
| Leakage current | <0.5MA |
| insulation resistance | >2MΩ |
| grounding resistance | <0.1Ω |
| the power tolerance | 5%~-10% |
| terminations | leads,terminal boxes,screw,threaded studs,plug or customized |
ARCHIVED PRODUCT INFORMATION
Description
A cast aluminum heating plate is a heating element made from aluminum that has been cast into a specific shape, typically used for even heat distribution in various applications
| sheath materials | aluminum |
| power (w/cm²) | 2.5-4.5,4.5-6.0,3.5-5 |
| voltage | 120v,240v,480v or customized |
| Max temperature | 400 degree or 752deg.F |
| options | Holes,grooves,notches,cutouts or customized |
| Leakage current | <0.5MA |
| insulation resistance | >2MΩ |
| grounding resistance | <0.1Ω |
| the power tolerance | 5%~-10% |
| terminations | leads,terminal boxes,screw,threaded studs,plug or customized |
Key Features:
Material: Made from aluminum alloy (often ADC12, A356, or similar) for excellent thermal conductivity and durability.
Manufacturing Process: Produced via die casting or sand casting, allowing for complex shapes and embedded heating elements.
Heating Element: Usually contains an integrated electric heating tube, cartridge heater, or resistance wire for controlled heating.
Surface Finish: Often machined or coated (e.g., anodized, ceramic) to improve heat distribution and corrosion resistance.
Temperature Range: Typically operates between 100°C to 500°C (212°F to 932°F), depending on the heating element used.
Advantages:
✔ High Thermal Conductivity – Heats up quickly and evenly.
✔ Lightweight & Durable – Strong yet easy to handle.
✔ Customizable – Can be cast into complex shapes with embedded sensors or heating elements.
✔ Corrosion-Resistant – Especially with protective coatings.
Applications:
Industrial: Plastic molding, packaging machines, food processing.
Consumer Appliances: Electric griddles, hot plates, waffle makers.
Laboratory/Medical: Sample heating, diagnostic equipment.
3D Printing: Heated print beds for better adhesion.
